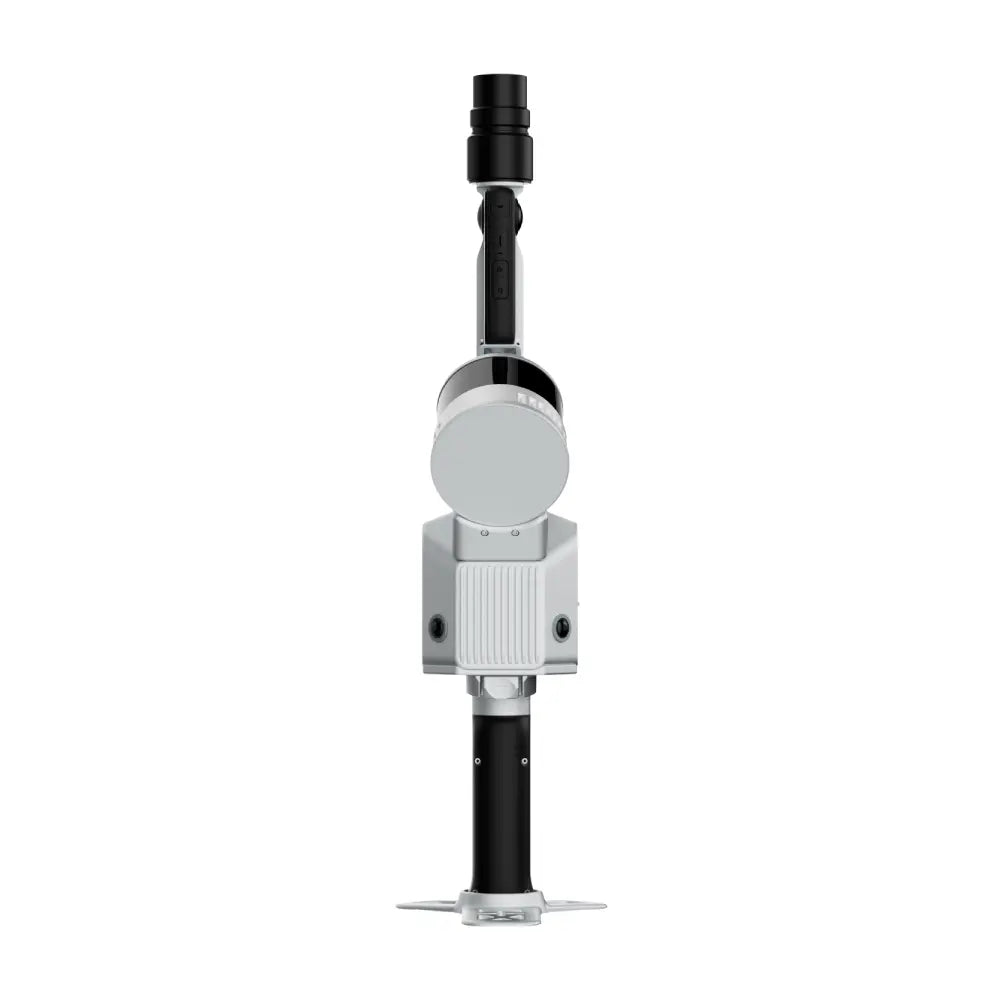

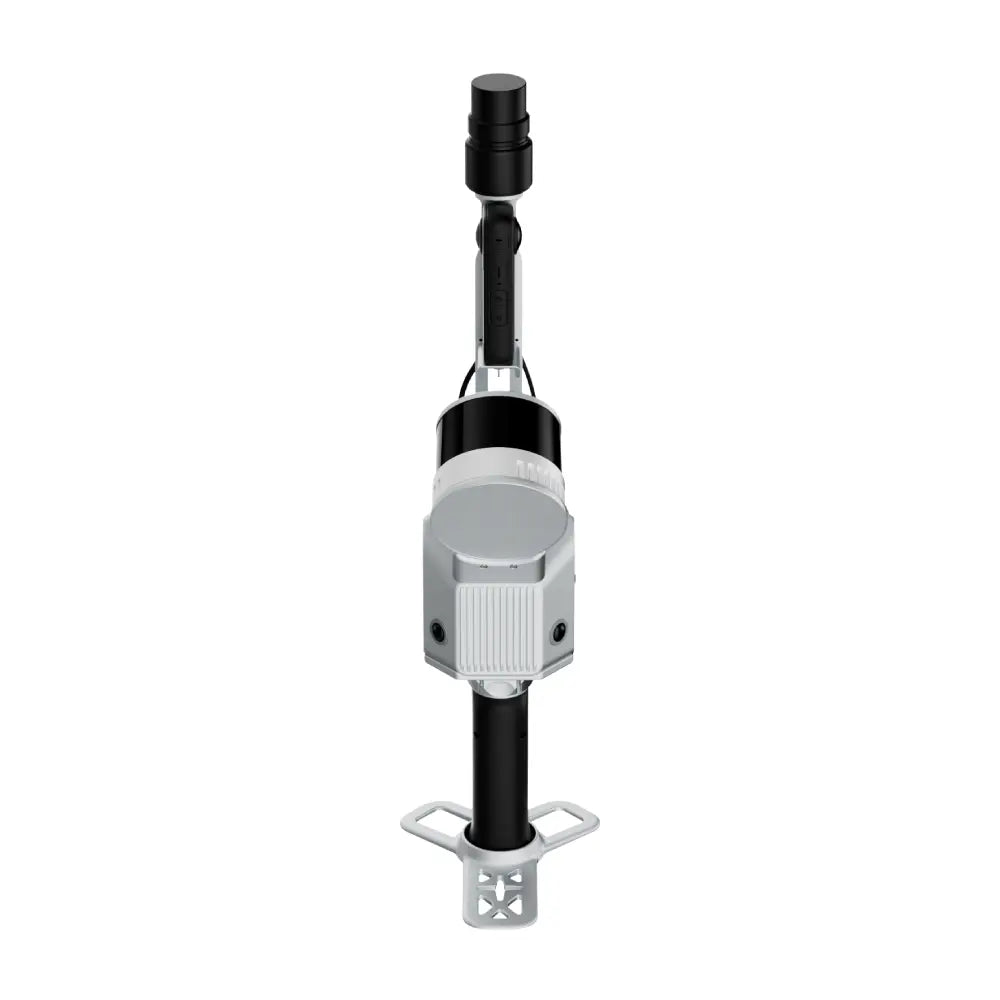

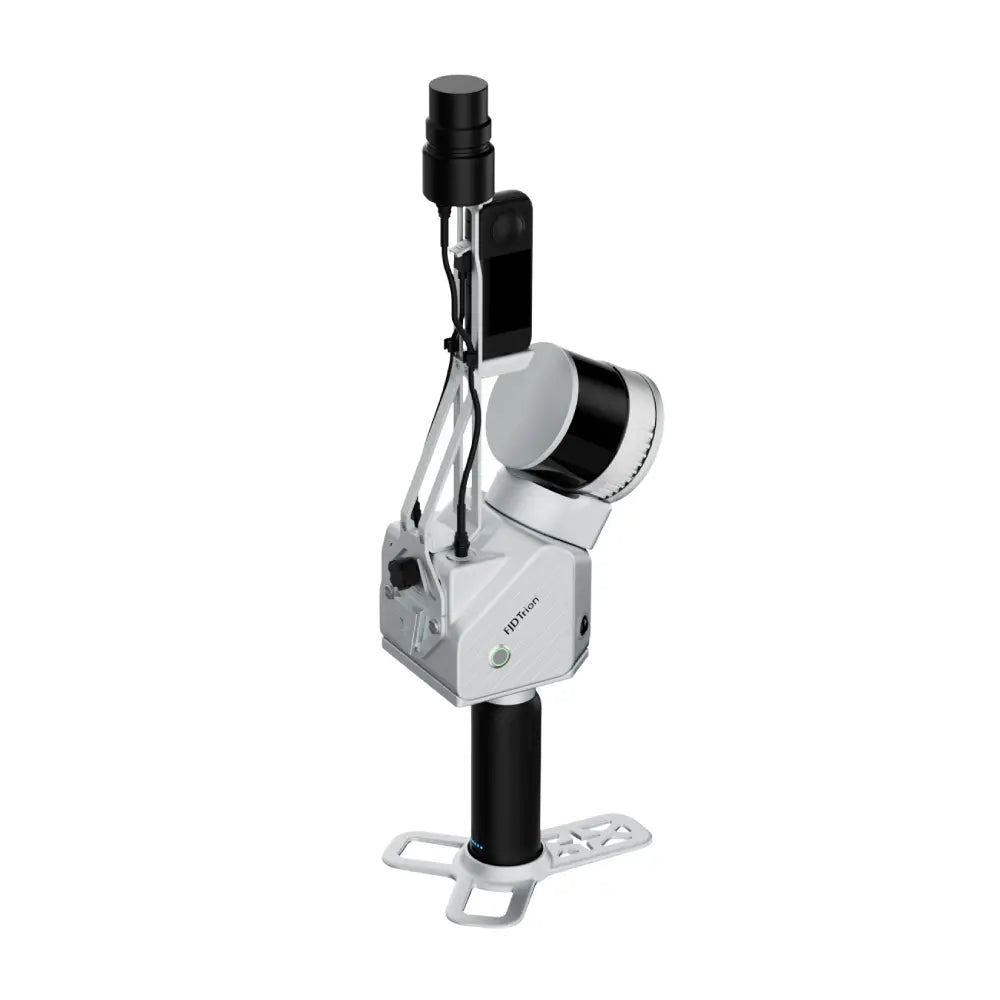

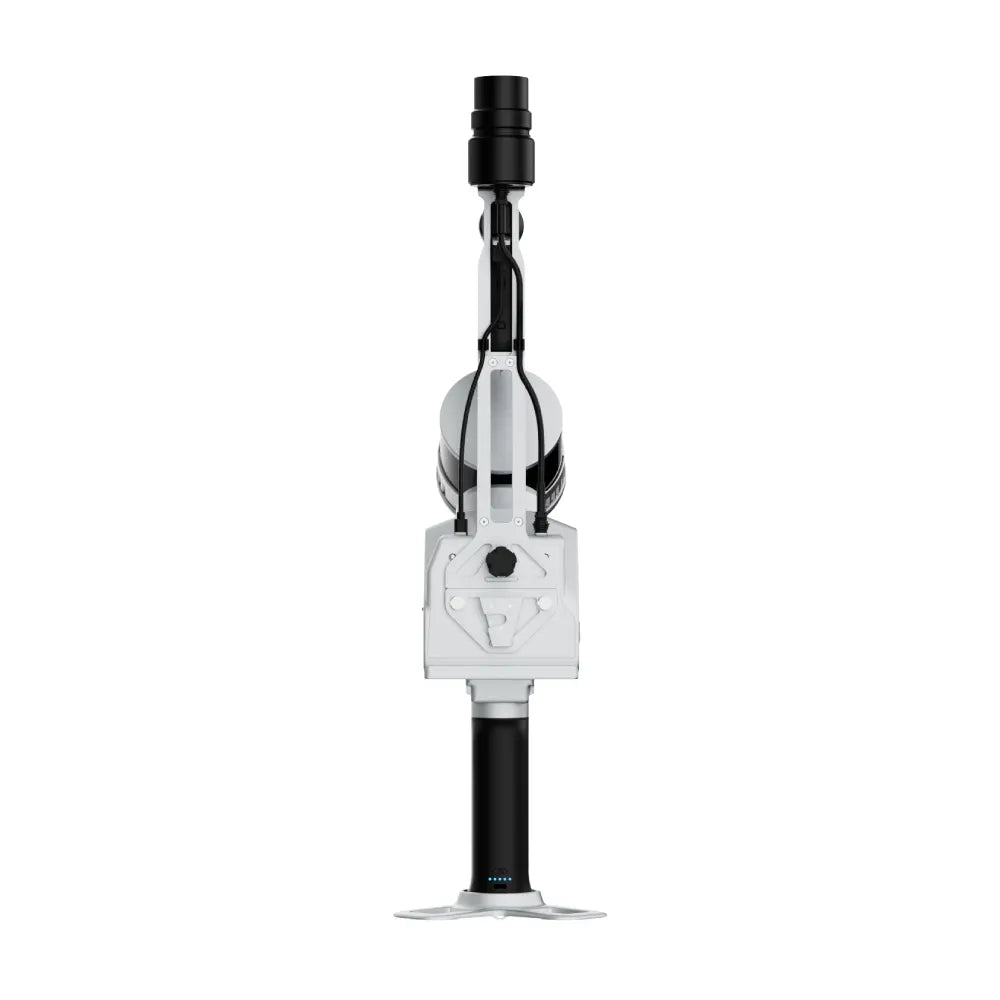

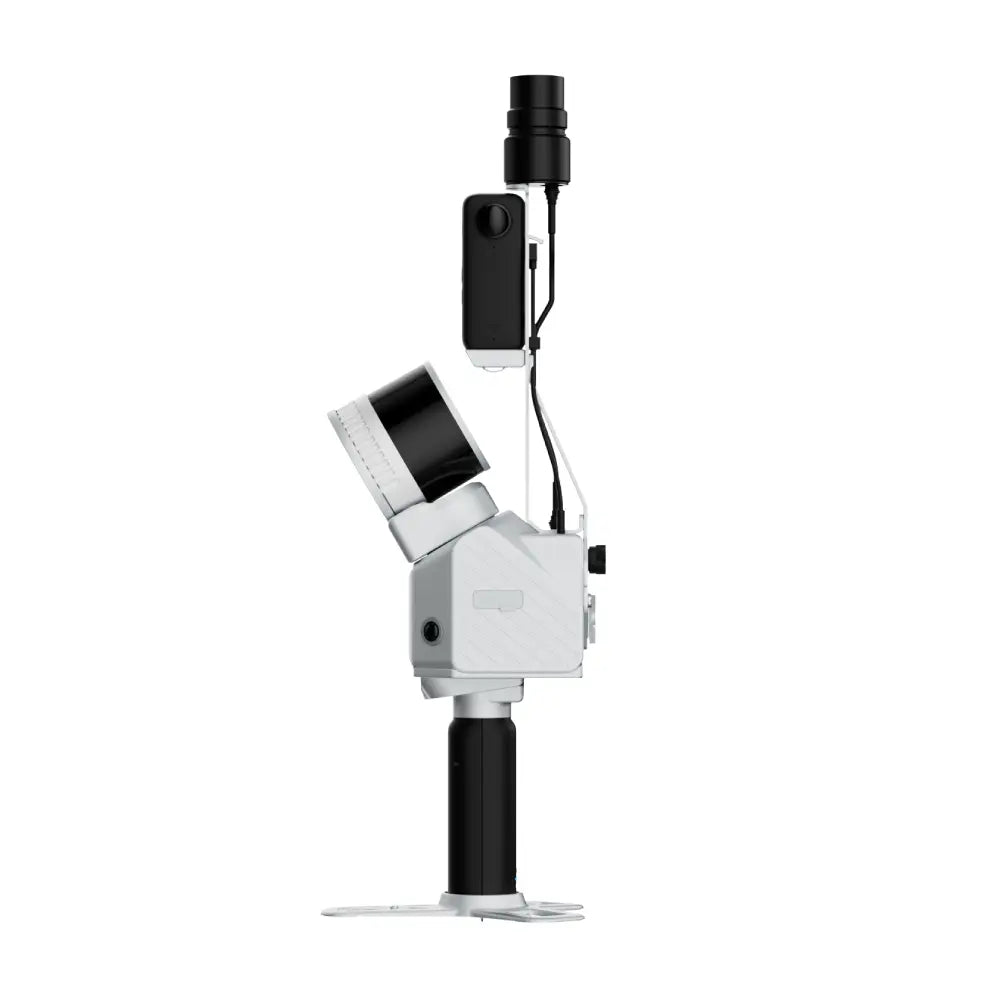

FJD TRION S2 Handheld Lidar Scanner

Name: FJD TRION S2 Handheld Lidar Scanner
Brand: FJDynamics
SKU: MET-LS07
Price: 1000.00 USD
Availability: InStock

$1,000.00

Kontakta oss för det bästa erbjudandet på denna produkt.

FJD TRION S2 Handhållen Lidar-skanner är en lätt och portabel enhet utvecklad för snabb och exakt 3D-datainsamling. Med upp till 1,2 cm relativ noggrannhet och en kapacitet på 320 000 punkter per sekund skapar den färgade punktmoln i realtid. Den kompakta designen och RTK-stödda arbetsflödet gör den idealisk för effektiva mät- och kartläggningsprojekt.

Produktvarianter

Antal

Betalning

Worldwide Shipping
Köparskydd och produktgaranti
Specialister på import, export, skatter och tullar
Expertstöd och premium kundsupport

Produktinformation

Professional Handheld LiDAR Scanner for Multi-Platform 3D Mapping

The FJD TRION S2 delivers professional-grade 3D scanning capabilities in a lightweight handheld design, enabling surveyors, engineers, and mapping professionals to capture precise point clouds with RTK accuracy across diverse environments and mounting platforms.

Multi-Platform Versatility

Engineered for maximum adaptability, the TRION S2 seamlessly integrates with drones, vehicles, backpacks, telescopic poles, and robotic platforms. This modular compatibility transforms a single device into a complete mobile scanning solution, allowing professionals to tackle projects ranging from detailed indoor surveys to large-scale outdoor mapping missions.

Real-Time Precision Mapping

Advanced SLAM algorithms combined with visual-inertial odometry and RTK positioning deliver reliable centimeter-level accuracy in challenging environments. Dual fisheye cameras provide real-time colorization and precise image overlay, ensuring every point cloud captures both geometric and visual detail for comprehensive documentation.

Key Advantages

• High-Speed Data Capture: Up to 640,000 points per second with 360° field of view coverage
• Lightweight Mobility: Under 2kg design enables extended field operations without fatigue
• Universal Compatibility: Supports over 8,000 coordinate systems for global project integration
• Complete Workflow Solution: Integrated software suite from data capture to final deliverables

Specs:

Räckvidd: 120 m @ 80 % reflektivitet

Kanaler: 16

Hastighet: 320 000 punkter/sek

Synfält (FOV): 360° x 270°

Säkerhetsklass: Klass 1 / 905 nm, ögonsäker

Noggrannhet: Relativ noggrannhet 1,2 cm; Absolut noggrannhet 3 cm

Vikt: 1,8 kg (exklusive batteri, extern kamera och RTK-modul)

Batteritid: 3 h (med 1 set om 2 batterier)

Lagring: 512 GB (utbyggbar till 1 TB)

Mått: 107 × 118 × 398 mm (inkl. bas och batteri)

Dataexport: Wi-Fi, USB Type-C, USB-minne

Kameraupplösning: 2 × 12 MP

Bildformat: .jpg

Satellitkonstellation: BDS: B1I / B2I / B3I / B1C / B2a / B2b; GPS: L1 C/A / L1C / L2P (Y) / L2C / L5; GLONASS: G1 / G2 / G3; Galileo: E1 / E5a / E5b / E6; QZSS: L1C/A / L1C / L2C / L5 (IRNSS och SBAS stöds via firmware-uppgradering)

RTK-noggrannhet: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS

Features :

1.2cm Relative Accuracy

Delivers survey-grade precision for critical measurements

320,000 Points Per Second

Captures ultra-dense point clouds in record time

120m Detection Range

Handles large-scale projects with extended reach

360° × 270° Field of View

Minimizes scanning passes with panoramic coverage

Real-Time Colorization

Dual 12MP cameras create photorealistic point clouds

RTK Integration

Achieves centimeter-level absolute positioning

Lightweight Handheld Design

Reduces operator fatigue during extended surveys

IP65 Weather Protection

Operates reliably in challenging field conditions

Download Center

Reviews :

4.8/5

★★★★★

Based on verified reviews

★★★★★

Marcus Chen

Senior Survey Engineer · Verified Purchase

Exceptional Performance for Infrastructure Mapping

The TRION S2 has revolutionized our workflow with its impressive 320,000 points per second capture rate and reliable 1.2 cm accuracy. The RTK integration ensures consistent georeferencing across multiple scan sessions. Build quality is outstanding and the real-time colored point clouds significantly reduce post-processing time.

★★★★★

Sarah Rodriguez

GIS Specialist · Verified Purchase

Lightweight Design Meets Professional Accuracy

After extensive field testing, this scanner delivers professional-grade results in a remarkably portable package. The intuitive interface and rapid data acquisition make it ideal for detailed architectural documentation. Data quality consistently meets our stringent accuracy requirements for heritage preservation projects.

★★★★☆

James Thompson

Land Surveyor · Verified Purchase

Solid Performance with Minor Workflow Considerations

The TRION S2 delivers excellent accuracy and the RTK functionality works flawlessly in open environments. Battery life could be improved for extended field sessions, but the rapid scanning capability more than compensates. Overall, a reliable tool that has increased our productivity significantly.

★★★★★

Dr. Amanda Foster

Research Geospatial Analyst · Verified Purchase

Outstanding Data Quality for Research Applications

The precision and consistency of data capture from the TRION S2 has been instrumental in our environmental monitoring research. The real-time visualization capabilities allow for immediate quality assessment in the field. Technical support from FJDynamics has been exceptionally responsive and knowledgeable.

★★★★★

Robert Martinez

Construction Site Manager · Verified Purchase

Game-Changer for As-Built Documentation

This scanner has transformed our as-built documentation process with its speed and accuracy combination. The compact design allows access to confined spaces that traditional scanning equipment cannot reach. Integration with our existing CAD workflow has been seamless and efficient.

What's in the Box

Everything you need to get started.

✓ 1× FJD TRION S2 Lidar Scanner unit
✓ 1× Two rechargeable batteries (approx. 3 hours scanning time total)
✓ 1× Carrying accessories: stabilizing vest, extension pole, backpack or suitcase
✓ 1× USB cables for data transfer and charging

Note: Optional accessories sold separately.

Frequently Asked Questions

General

✓ What level of accuracy can I expect from the FJD Trion S2? ▾

The FJD Trion S2 delivers up to 1.2 cm relative accuracy, making it suitable for high-precision surveying and mapping applications. When combined with RTK positioning, this accuracy is maintained across larger project areas, ensuring consistent measurement quality throughout your data collection workflow.

✓ How fast does the scanner capture point cloud data? ▾

The Trion S2 captures an impressive 320,000 points per second, enabling rapid data collection for time-sensitive projects. This high capture rate allows you to efficiently scan large areas while maintaining data density requirements for detailed analysis and modeling applications.

✓ Does the scanner produce colored point clouds in real-time? ▾

Yes, the FJD Trion S2 creates real-time colored point clouds during data acquisition. This feature allows you to visualize scan progress immediately, verify data quality on-site, and make informed decisions about coverage completeness before leaving the survey location, significantly improving field workflow efficiency.

✓ What types of surveying projects is the Trion S2 best suited for? ▾

The lightweight, handheld design makes the Trion S2 ideal for diverse applications including topographic surveying, construction site documentation, infrastructure inspection, forestry mapping, and architectural documentation. Its portability and RTK integration make it particularly effective for projects requiring mobility and precise georeferencing across varied terrain conditions.

✓ How does RTK integration enhance the scanning workflow? ▾

RTK support enables precise global positioning of scan data without requiring traditional survey control points. This integration streamlines the surveying workflow by providing real-time centimeter-level positioning accuracy, allowing for seamless data registration and reducing post-processing time while ensuring consistent coordinate system alignment across multiple scan sessions.
