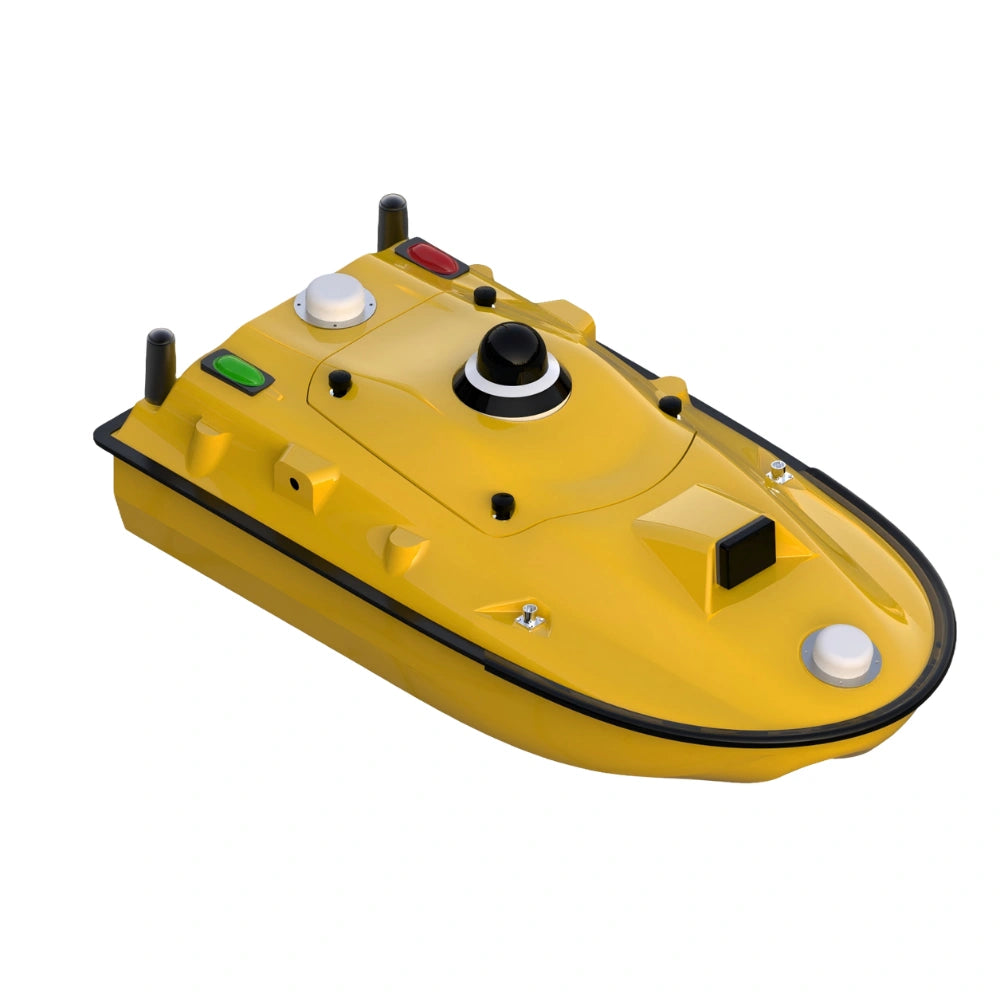

iUSV-6 unmanned surface vehicle right side perspective view showing hull, antennas and GNSS dome

UbiNavi

UbiNavi iUSV-6 - Entry-Level Hydrographic Surveying USV

Name: UbiNavi iUSV-6 - Entry-Level Hydrographic Surveying USV
Brand: UbiNavi
SKU: iUSV-6
Price: 20913.59 USD
Availability: InStock

$20,913.59

Kontakta oss för det bästa erbjudandet på denna produkt.

Unlock the potential of hydrographic surveying with the UbiNavi iUSV-6. This compact USV offers ±1cm accuracy with its single-beam echosounder, making it ideal for precise water depth measurements. Its intelligent navigation and robust design ensure reliable performance in challenging environments. Choose the iUSV-6 for a professional edge in aquatic surveying.

Watch the Fly2Map Drone in set up.

Produktvarianter

Antal

Betalning

Worldwide Shipping
Köparskydd och produktgaranti
Specialister på import, export, skatter och tullar
Expertstöd och premium kundsupport

Produktinformation

Revolutionizing Hydrographic Surveying

The UbiNavi iUSV-6 is designed for professionals seeking precision in hydrographic surveying. This entry-level USV combines advanced technology with ease of use, making it perfect for both newcomers and seasoned surveyors.

Advanced Navigation and Control

Equipped with high-precision RTK and proprietary navigation algorithms, the iUSV-6 ensures accurate path following and stable data collection, even in challenging environments.

Versatile Applications

From hydrographic surveying to environmental monitoring and aquatic rescue, the iUSV-6 is adaptable to a wide range of applications, providing reliable performance across various scenarios.

✓ Precise water depth measurements
✓ Robust design for challenging conditions
✓ Easy integration with additional sensors
✓ Comprehensive safety features

Specifications

Dimensions: 0.98 × 0.52 × 0.255 m
Weight: 7 kg (net) / 30 kg (fully equipped)
Max Payload: 35 kg
Waterproof: IP67
Positioning: Dual GNSS + RTK (±8 mm accuracy)
Echo Sounder: 200 kHz, depth range up to 200 m
Max Speed: 7 m/s
Operating Range: up to 38 km
Battery: up to 7h runtime, hot-swap supported
Communication: 2.4 GHz (3 km) + 4G (unlimited)
Control: Manual & autonomous navigation with obstacle avoidance

Features :

Modular Mission Payloads

Supports various sensors for diverse applications.

Intelligent Navigation & Control

Ensures accurate paths and stable data collection.

Powerful Propulsion & Endurance

High-power thrusters for robust operation.

Multiple Safety Mechanisms

Auto-return and obstacle avoidance for safety.

Efficient Surveying

Provides reliable water depth measurements.

Multi-Task Applications

Adaptable for surveying, monitoring, and rescue.

Download Center

Reviews :

4.8/5

★★★★★

Based on 5 verified reviews

★★★★★

John Doe

Hydrographic Surveyor · Verified Purchase

Reliable and Accurate

The iUSV-6 has transformed our surveying operations with its precision and ease of use.

★★★★☆

Jane Smith

Environmental Engineer · Verified Purchase

Great for Monitoring

Excellent for water quality monitoring, though battery life could be longer.

★★★★★

Alex Brown

Marine Biologist · Verified Purchase

Versatile and Efficient

The modular design allows for easy integration of additional sensors.

★★★★★

Emily White

Aquatic Rescue Specialist · Verified Purchase

Essential for Rescue Missions

The iUSV-6's reliability in emergency situations is unmatched.

What's in the Box

Everything you need to get started.

✓ 1× iUSV-6 Unmanned Surface Vehicle
✓ 1× Remote Controller with Touchscreen Display
✓ 2× Dual GNSS Antennas (Positioning & Heading)
✓ 1× Single-Beam Echosounder (Integrated)
✓ 2× Rechargeable Lithium Batteries
✓ 1× Battery Charger (Fast Charging)
✓ 1× Communication Antennas (2.4G / 4G)
✓ 1× Tool Kit & Maintenance Accessories
✓ 1× Carrying Case / Transport Protection
✓ 1× User Manual & iSail Software System

Note: Optional accessories such as side-scan sonar, water quality sensors, and additional payloads are sold separately.

Frequently Asked Questions

General

✓ What is the main application of this USV system? ▾

This USV is designed for hydrographic and bathymetric surveying, including river, lake, and coastal mapping, as well as environmental monitoring and inspection tasks.

✓ What level of accuracy can I expect? ▾

With RTK positioning, the system achieves up to ±8 mm horizontal accuracy, suitable for professional surveying applications.

Performance

✓ What is the maximum operating range? ▾

The system supports up to 3 km via 2.4 GHz communication, and virtually unlimited range via 4G connectivity.

✓ How long can the system operate on a single charge? ▾

The dual battery system provides up to 7 hours of operation, depending on usage conditions.

Features

✓ Does the system support autonomous navigation? ▾

Yes, it supports manual and autonomous modes, including route planning, obstacle avoidance, and automatic return.

✓ Can I integrate additional sensors or payloads? ▾

Yes, the platform supports expandable payloads such as side-scan sonar, water quality sensors, and cameras.

✓ Is the system suitable for harsh environments? ▾

Yes, it features IP67 protection and is designed to operate in challenging wind and wave conditions.
