GMP104C Leica style rain-proof monitoring prism

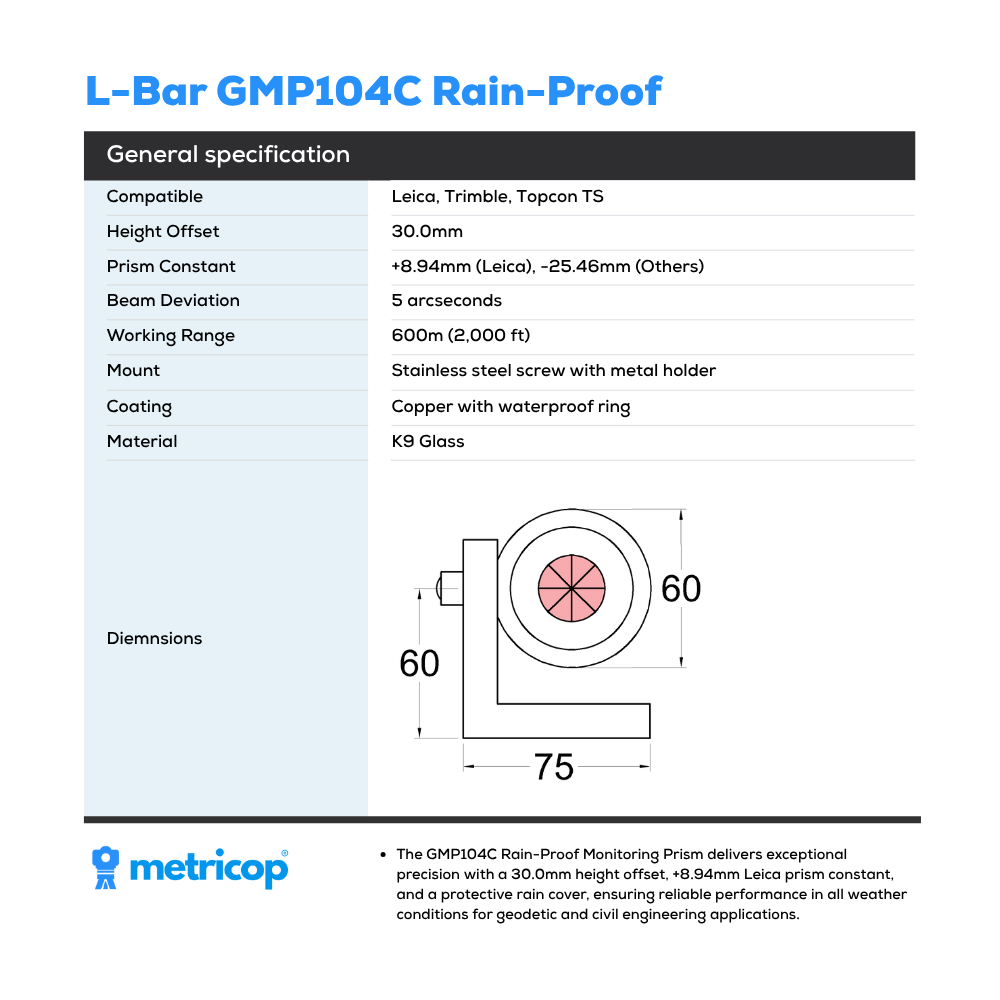

gmp104m rain proof monitoring prism specification

Leica Style

L-bar GMP104C: Monitoring Prisma, Regntåligt, 5 st

Name: L-bar GMP104C: Monitoring Prisma, Regntåligt, 5 st
Brand: Leica Style
SKU: MPR04
Price: 290.00 USD
Availability: InStock

$290.00

5.0

Kontakta oss för det bästa erbjudandet på denna produkt.

GMP104C Regntåligt Monitoring Prisma erbjuder exceptionell precision med en höjdjustering på 30,0 mm, +8,94 mm Leica prismakonstant och ett skyddande regnskydd, vilket säkerställer pålitlig prestanda i alla väderförhållanden för geodetiska och civilingenjörsapplikationer.

Produktvarianter

Antal

Betalning

Worldwide Shipping
Köparskydd och produktgaranti
Specialister på import, export, skatter och tullar
Expertstöd och premium kundsupport

Produktinformation

Professional Rain-Proof Monitoring Prisms for Precision Surveying

The GMP104C monitoring prisms deliver consistent accuracy for geodetic monitoring and civil engineering projects. Engineered with weather-resistant protection and Leica-compatible specifications, these precision instruments ensure reliable performance in demanding outdoor environments.

Weather-Resistant Design

Built with an integrated rain cover and durable copper coating, the GMP104C maintains measurement integrity regardless of weather conditions. The protective design prevents moisture infiltration while preserving optical clarity, ensuring consistent readings during extended outdoor monitoring campaigns.

Precision Engineering

Featuring a 30.0mm height offset and +8.94mm Leica prism constant, these monitoring prisms deliver exceptional accuracy with minimal beam deviation. The stainless steel mounting system provides secure, vibration-resistant installation for long-term stability in monitoring applications.

Key Advantages

• Integrated rain protection maintains optical performance in harsh conditions
• Leica-compatible specifications ensure seamless integration with existing systems
• Convenient 5-piece packaging optimizes project setup and inventory management
• Robust stainless steel mounting system provides long-term installation stability

Modell: GMP104C Regntåligt Monitoring Prisma

För Totalstation: Kompatibel med Leica; anpassningsbar för andra system

Höjdjustering: 30,0 mm

Prismakonstant:

Leica: +8,94 mm
Andra: -25,46 mm

Strålningsavvikelse: 5 arcsekunder

Montering: Rostfri stålschruv med metallhållare

Beläggning: Koppar med integrerat regnskydd

Paket: 5 stycken per se

Features :

Leica Prism Constant

+8.94mm constant ensures seamless compatibility with Leica total stations

Precise Height Offset

30.0mm offset provides accurate vertical positioning for monitoring applications

Rain-Proof Protection

Integrated weather cover maintains performance in harsh outdoor conditions

Copper Coating Technology

Enhanced reflectivity coating delivers superior signal return for accurate measurements

Stainless Steel Hardware

Corrosion-resistant mounting screw ensures long-term stability and reliability

Metal Holder Construction

Robust metal housing provides secure prism mounting and vibration resistance

Multi-System Compatibility

Works with various total station brands using -25.46mm constant conversion

5-Piece Value Pack

Complete set provides cost-effective solution for multiple monitoring points

Download Center

Reviews :

4.8/5

★★★★★

Based on verified reviews

★★★★★

Marcus Rodriguez

Senior Geodetic Engineer · Verified Purchase

Outstanding weather resistance and precision

The rain-proof design has been essential for our long-term deformation monitoring project. The +8.94mm prism constant is consistent and the protective cover maintains accuracy even in harsh weather conditions.

★★★★★

Jennifer Chen

Project Surveyor · Verified Purchase

Perfect for automated monitoring systems

These monitoring prisms integrate seamlessly with our robotic total stations. The 30.0mm height offset is precise and the L-bar mounting configuration provides excellent stability for continuous measurements.

★★★★★

David Thompson

Civil Engineering Consultant · Verified Purchase

Reliable performance in extreme conditions

Used these prisms for bridge monitoring through winter conditions with excellent results. The protective rain cover prevents water ingress while maintaining optical quality for sub-millimeter accuracy requirements.

★★★★☆

Sarah Mitchell

Land Surveyor · Verified Purchase

Solid construction with consistent results

The build quality is impressive and the prism constant remains stable across all five units. Installation is straightforward with the L-bar design, though the rain cover occasionally requires adjustment in high winds.

★★★★★

Robert Kim

Monitoring Specialist · Verified Purchase

Essential for precision geodetic applications

These prisms have exceeded expectations for our geotechnical monitoring network. The weather-sealed design maintains measurement integrity over extended periods, making them ideal for remote installations.

What's in the Box

Everything you need to get started.

✓ 5× GMP104C Rain-Proof Monitoring Prism
✓ 5× Protective Rain Cover
✓ 5× L-Bar Mounting Assembly
✓ 1× Technical Specification Sheet

Note: Mounting hardware and total station equipment sold separately.

Frequently Asked Questions

General

✓ What is the prism constant for the GMP104C monitoring prism? ▾

The GMP104C features a +8.94mm Leica prism constant, which must be programmed into your total station or monitoring system to ensure accurate distance measurements. This constant accounts for the optical path delay through the prism assembly.

✓ How does the rain cover affect measurement performance? ▾

The integrated rain cover protects the prism from moisture and debris without compromising measurement accuracy. The cover is designed to maintain optical clarity while preventing water ingress that could cause measurement errors in long-term monitoring applications.

✓ What is the significance of the 30.0mm height offset? ▾

The 30.0mm height offset represents the vertical distance from the prism mounting point to the optical center of the prism. This specification is critical for accurate vertical positioning calculations and must be accounted for when establishing monitoring point coordinates.

✓ Are these prisms compatible with non-Leica total stations? ▾

Yes, the GMP104C prisms are compatible with most modern total stations from various manufacturers. However, you must manually input the +8.94mm prism constant into your instrument's settings to ensure accurate measurements, as this constant differs from standard prism values.

✓ What applications are these monitoring prisms best suited for? ▾

The GMP104C prisms excel in long-term deformation monitoring applications including structural health monitoring, slope stability analysis, dam surveillance, and construction settlement monitoring. Their rain-proof design makes them ideal for permanent installations in harsh environmental conditions.

Still have questions? Contact our technical support team.
