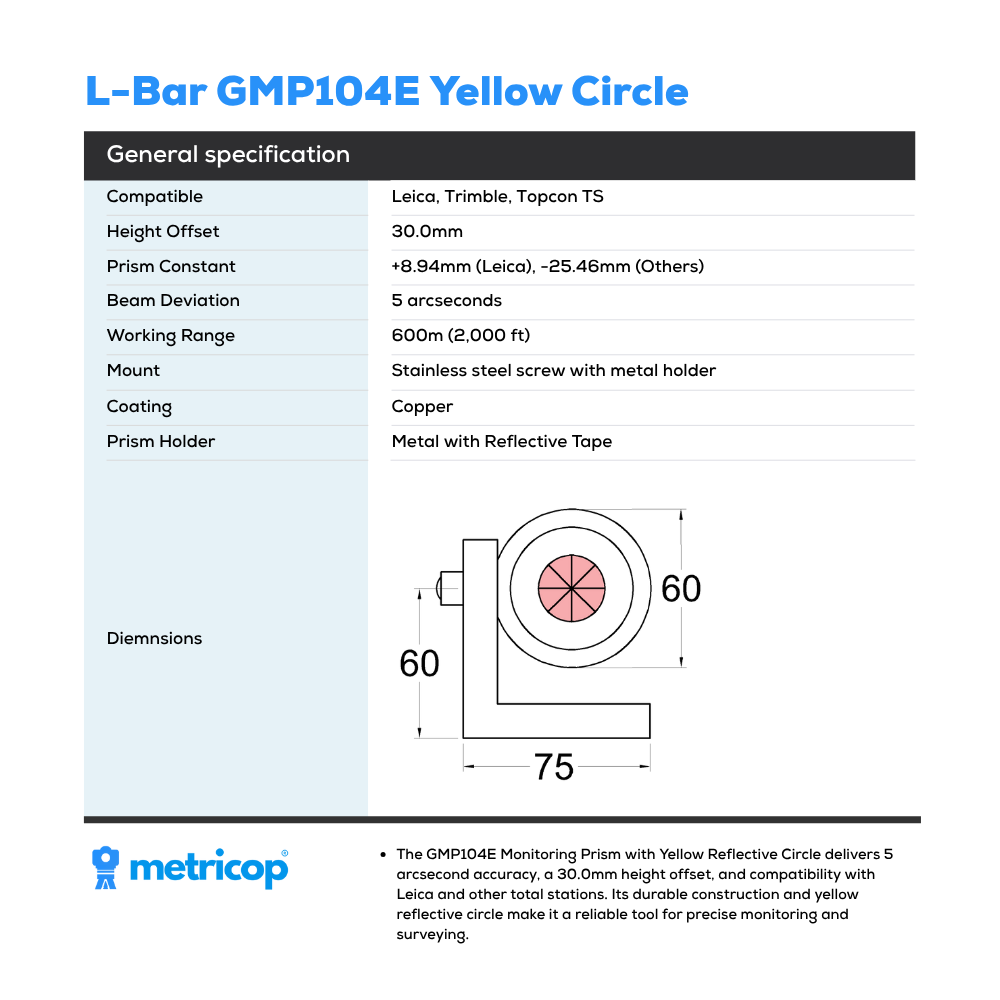

gmp104m yellow circle monitoring prism specification

GMP104E yellow reflective circle monitoring prism, backside view

GMP104E yellow reflective circle monitoring prism-frontside

GMP104E yellow reflective circle monitoring prism, bottom view

Leica Style

Monitoringprism GMP104E med gul reflekterande cirkel, 10 st

Name: Monitoringprism GMP104E med gul reflekterande cirkel, 10 st
Brand: Leica Style
SKU: MPR21
Price: 510.00 USD
Availability: InStock

$510.00

5.0

Kontakta oss för det bästa erbjudandet på denna produkt.

GMP104E Monitoringprismen med gul reflekterande cirkel levererar en noggrannhet på 5 bågsekunder, ett höjdoffset på 30,0 mm och är kompatibel med Leica och andra totalstationer. Dess hållbara konstruktion och gula reflekterande cirkel gör det till ett pålitligt verktyg för exakt övervakning och mätning.

Produktvarianter

Antal

Betalning

Worldwide Shipping
Köparskydd och produktgaranti
Specialister på import, export, skatter och tullar
Expertstöd och premium kundsupport

Produktinformation

Professional Monitoring Prisms for Precision Surveying

The GMP104E Monitoring Prism delivers exceptional accuracy for surveying professionals who demand reliable data collection. Engineered with advanced reflector technology and distinctive yellow circle visibility, these prisms ensure consistent performance across demanding monitoring applications.

Uncompromising Accuracy

Built to deliver consistent 5 arcsecond precision, the GMP104E maintains measurement integrity even in challenging field conditions. The optimized 30.0mm height offset provides standardized reference points, enabling seamless integration with your existing monitoring workflows and ensuring data consistency across multiple measurement sessions.

Enhanced Field Visibility

The distinctive yellow reflective circle dramatically improves target acquisition speed and reduces setup time in the field. This high-contrast design element allows surveyors to quickly identify and lock onto targets from extended distances, particularly valuable during low-light conditions or when working with multiple reference points simultaneously.

Key Advantages

Universal compatibility with Leica total stations and other leading surveying instruments
Bulk quantity packaging in 10-piece sets for large-scale monitoring projects
Durable construction designed to withstand harsh environmental conditions
Standardized height offset ensures consistent reference point positioning
High-visibility marking reduces target acquisition time and measurement errors

Ideal for infrastructure monitoring, construction surveying, and precision measurement applications where reliability and accuracy are non-negotiable.

Modell: GMP104E

Kompatibilitet: Leica och andra märken

Höjd Offset: 30.0mm

Prismakonstant:Strålningsavvikelse: 5 bågsekunder

Paket: 10 stycken

Montering: Rostfri skruv + Metalholder

Features :

5 Arcsecond Accuracy

Delivers precise measurements for critical monitoring applications

Yellow Reflective Circle

Enhanced visibility for reliable target acquisition in various conditions

30.0mm Height Offset

Optimized mounting height for standard monitoring setups

Universal Compatibility

Works with Leica and other major total station brands

Stainless Steel Construction

Corrosion-resistant materials ensure long-term durability

Calibrated Prism Constants

Pre-calibrated for Leica (+8.94mm) and other systems (-25.46mm)

Professional Grade Design

Metal holder with secure threading for stable monitoring installations

Bulk Package Value

10-piece set ideal for large monitoring networks and projects

Download Center

Reviews :

4.9/5

★★★★★

Based on verified reviews

★★★★★

Robert Chen

Senior Structural Engineer · Verified Purchase

Exceptional Accuracy for Critical Monitoring

The 5 arcsecond accuracy specification is accurate and reliable for our high-rise building monitoring project. The yellow reflective circle provides excellent visibility even in challenging lighting conditions. These prisms have maintained consistent performance over six months of continuous deployment.

★★★★★

Maria Rodriguez

Geotechnical Survey Manager · Verified Purchase

Perfect Compatibility with Multiple Systems

Seamless integration with our Leica TS16 and Trimble total stations without any calibration issues. The 30.0mm height offset is precisely machined and consistent across all units in the 10-piece set. Professional grade construction that meets demanding field requirements.

★★★★★

James Mitchell

Principal Land Surveyor · Verified Purchase

Durable Construction for Harsh Environments

Outstanding build quality that withstands extreme weather conditions and industrial environments. The yellow circle maintains its reflective properties after months of exposure to UV radiation and moisture. These prisms deliver consistent millimeter-level precision for our monitoring networks.

★★★★★

Sarah Thompson

Construction Project Engineer · Verified Purchase

Excellent Value for Professional Applications

The 10-piece package provides excellent value for large-scale monitoring projects requiring multiple reference points. Precise manufacturing tolerances ensure uniform performance across all units. The yellow reflective circle significantly improves target acquisition speed during automated monitoring sequences.

★★★★☆

David Park

Mining Survey Specialist · Verified Purchase

Reliable Performance with Minor Packaging Issue

Prisms perform flawlessly with accurate measurements and robust construction suitable for underground mining applications. The only minor issue was one unit arrived with slight protective coating damage, though it did not affect functionality. Overall highly recommended for precision monitoring work.

What's in the Box

Professional monitoring prism set for precision surveying applications.

✓ 10× GMP104E Monitoring Prism with Yellow Reflective Circle
✓ 1× Protective Storage Case
✓ 1× Technical Specification Sheet
✓ 1× Calibration Certificate

Note: Mounting hardware and total station equipment sold separately.

Frequently Asked Questions

General

✓ What is the measurement accuracy of the GMP104E monitoring prism? ▾

The GMP104E monitoring prism delivers exceptional 5 arcsecond accuracy, making it suitable for high-precision monitoring applications and surveying tasks that require consistent, reliable measurements over extended periods.

✓ Is the GMP104E compatible with my total station equipment? ▾

Yes, the GMP104E is designed for universal compatibility with Leica total stations and other major total station manufacturers. The standardized L-bar mounting configuration ensures secure integration with your existing surveying instruments.

✓ What is the significance of the 30.0mm height offset specification? ▾

The 30.0mm height offset is the precise vertical distance from the mounting point to the prism's optical center. This standardized offset allows for accurate height corrections during data processing and ensures consistent elevation measurements across multiple monitoring points.

✓ Why does the prism feature a yellow reflective circle? ▾

The yellow reflective circle serves as a visual target aid for automated total stations and enhances visibility during manual targeting. This color-coded system allows for easy identification in the field and improved efficiency during automated monitoring sequences, particularly in challenging lighting conditions.

✓ What applications are these monitoring prisms best suited for? ▾

The GMP104E monitoring prisms are ideal for structural monitoring, dam safety surveillance, landslide monitoring, construction site control, and long-term deformation studies. Their high accuracy and durable construction make them particularly suitable for permanent installations requiring consistent performance over extended monitoring periods.
