FJD TRION V1t GNSS Base and Rover Set Nature

FJDynamics

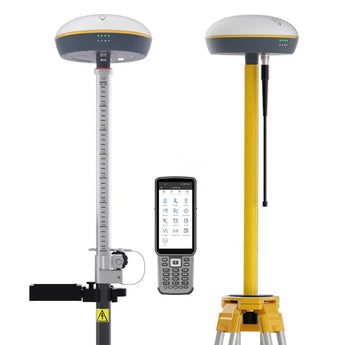

FJD TRION V1t - GNSS Base and Rover Set

Name: FJD TRION V1t - GNSS Base and Rover Set
Brand: FJDynamics
SKU: MET-GPSB-24
Availability: InStock

$0.00

The FJD TRION V1t GNSS Base and Rover Set combines high-precision RTK positioning with advanced IMU tilt compensation up to 60°. Supporting 1408 tracking channels across GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS, it delivers centimeter-level accuracy even in complex environments. With battery life of 10 hours (base) and 15 hours (rover), it ensures reliable, long-duration field performance.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The FJD TRION V1t GNSS Base and Rover Set is built for professionals who require fast, accurate RTK survey performance in challenging environments. With 1408 tracking channels and Galileo HAS-PPP support, it delivers centimeter-level positioning across multiple satellite constellations.

Its advanced IMU tilt compensation allows up to 60° measurements without leveling, while the rugged IP67 design ensures durability in harsh field conditions. Long battery life—10 hours on the base and 15 hours on the rover—makes it reliable for extended surveying projects.

Channels: 1408 GNSS channels (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, IRNSS)
IMU Tilt Compensation: 30° / 2.5 cm accuracy (max 60°)
Battery Life: Base 10 h, Rover 15 h (6500 mAh battery)
Positioning Accuracy: Horizontal ±2.5 mm + 0.5 ppm, Vertical ±5 mm + 0.5 ppm
RTK Initialization: < 5 seconds (baseline < 10 km)
Cold Start / Hot Start: < 20 s / < 10 s
Protection Rating: IP67, with 32 GB internal memory
Connectivity: Bluetooth BR/EDR, Wi-Fi IEEE 802.11b/g/n
Operating Temperature: –30 °C to +60 °C
Weight: 1070 g; Size: 162 × 86 mm

1408 GNSS Channels – Reliable tracking across all major constellations
Tilt Compensation up to 60° – Faster measurements without leveling
Galileo HAS-PPP Support – Stable positioning in Galileo signal zones
Quick RTK Initialization – Fix in less than 5 seconds for improved efficiency
Long Battery Life – Base 10 h, Rover 15 h ensures uninterrupted work
Rugged IP67 Build – Protected against water, dust, and field impacts
Integrated 32 GB Memory – Secure data storage for large survey projects

FJD TRION V1t_Datasheet

FJD TRION V1t_User Manual

FJD TRION V1t GNSS Rover
FJD TRION V1t GNSS Base
Field Controller (E600, 5.5” display, 7700 mAh battery)
UHF Antenna
Power Supply and Cables
Carrying Case

Q1: How quickly can the V1t initialize RTK corrections?

A1: It achieves initialization in under 5 seconds on baselines under 10 km.

Q2: Can the system maintain accuracy in tilted measurements?

A2: Yes, it provides 2.5 cm accuracy at 30° tilt, with capability up to 60°.

Q3: What makes the V1t suitable for long field sessions?

A3: Its 6500 mAh battery supports 10 hours of operation as a base and 15 hours as a rover.

Q4: Does the V1t support advanced correction services?

A4: Yes, it supports Galileo HAS-PPP for continuous positioning in Galileo coverage.

Q5: Is the device durable enough for harsh conditions?

A5: With IP67 protection and –30 °C to +60 °C operating range, it is built for rugged environments.
