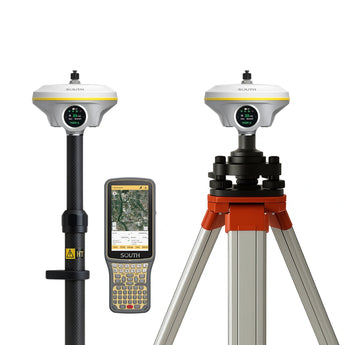

GNSS South INNO 8 Rover-Base Set

Name: GNSS South INNO 8 Rover-Base Set
Brand: South
SKU: MET-GPSB-08
Price: 8900.00 USD
Availability: InStock

$8,900.00

4.89

The GNSS South INNO 8 Rover-Base Set is a high-tech GNSS RTK surveying system that integrates visual positioning, UAV photogrammetry, and AR stakeout within its toolset. It offers 1760-channel GNSS tracking, Farlink 2.0 UHF radio, and 20-hour battery life, which is more than enough to ensure long hours of uninterrupted work. With it, you get high-precision, real-time 3D modeling and field efficiency for all types of situations.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The South INNO8 Rover-Base Set is a next-generation GNSS RTK solution featuring visual positioning, UAV photogrammetry, and AR stakeout technology. With up to 1760 channels, advanced Farlink 2.0 UHF radio, and 4th-generation IMU tilt compensation, this system provides high-precision measurements with enhanced efficiency. Designed for surveyors who require real-time 3D modeling, superior connectivity, and intelligent workflow automation, the South INNO8 ensures unmatched accuracy and productivity in the field.

GNSS Channels: Up to 1760

Supported Systems: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, Navic

Positioning Accuracy:

RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
Static: 2.5 mm + 0.1 ppm (horizontal), 3 mm + 0.4 ppm (vertical)
PPK: 3 mm + 1 ppm (horizontal), 5 mm + 1 ppm (vertical)
IMU Tilt Correction: <10 mm + 0.7 mm/° tilt up to 60°

Initialization Time: <8s, with >99.99% reliability

IMU Technology: 4th generation, calibration-free, immune to magnetic interference

Battery: 10,000mAh Li-ion, up to 20 hours in rover mode

Dimensions: 155mm x 98.5mm

Weight: 1.2 kg

Material: Magnesium aluminum alloy shell

Environmental Protection: IP68-rated, MIL-STD-810G drop resistance

Communication & Connectivity:

Farlink 2.0 UHF Radio (up to 15-20km range)
4G LTE, 3G, 2G GSM connectivity
WiFi Hotspot & Bluetooth 4.0
NFC for fast pairing

Data Storage:

64GB SSD internal storage, expandable
USB plug-and-play data transfer
Supports RTCM, Rinex, and NMEA formats

Special Features:

Visual Positioning & Stakeout with AR guidance
UAV photogrammetry integration
3D modeling with real-time data processing

1760-channel GNSS engine with full constellation tracking
4th-generation IMU tilt compensation (up to 60° tilt)
Farlink 2.0 UHF radio with up to 20km range
Real-time 3D modeling & UAV photogrammetry
Visual Positioning & AR Stakeout for enhanced surveying
64GB internal storage with USB and cloud access
IP68 waterproof & MIL-STD-810G shockproof durability
10,000mAh battery with up to 20-hour operation
Fast 4G LTE, WiFi, Bluetooth, and NFC connectivity
Smart touchscreen interface with voice guidance

South_INNO8_Datasheet

⭐️⭐️⭐️⭐️⭐️ F. Carol – Verified Buyer – April 9, 2024

"I am satisfied with this product, it is of good quality. Worked 10+ hours without recharging, perfect for long job sites."

South INNO8 GNSS Base & Rover Set

South INNO8 GNSS RTK Receiver (Base)
South INNO8 GNSS RTK Receiver (Rover)
Field controller (model varies)
GNSS survey pole
Tripod for base station
Tribrach & carrier with extension
Rechargeable 10,000mAh Li-ion batteries (x2)
USB Type-C charging cables (x2)
Power adapters (x2)
Controller holder
Transport cases (for receiver & accessories)
Quick start guide

Q: What makes the South INNO8 different from other GNSS RTK receivers?

A: The INNO8 integrates visual positioning, UAV photogrammetry, and AR stakeout, allowing for faster data collection, real-time 3D modeling, and remote measurements in difficult environments.

Q: How accurate is the INNO8 in RTK mode?

A: The RTK accuracy is 8 mm + 1 ppm horizontally and 15 mm + 1 ppm vertically, ensuring centimeter-level precision.

Q: What is Farlink 2.0 and how does it improve communication?

A: Farlink 2.0 UHF radio extends the working range up to 20km with enhanced signal stability, allowing a single base to cover a larger area without repositioning.

Q: Does the INNO8 support tilt compensation?

A: Yes, the 4th-generation IMU tilt sensor supports up to 60° tilt, allowing for precise surveying without leveling the pole.

Q: What is the battery life of the South INNO8?

A: The built-in 10,000mAh battery provides up to 20 hours of continuous operation, with PD quick charge support.

Q: Can the INNO8 perform 3D modeling?

A: Yes, the INNO8 supports real-time 3D modeling and UAV photogrammetry, allowing surveyors to collect and process geospatial data efficiently.

Q: Is the INNO8 durable for tough field conditions?

A: Yes, it is IP68-rated, dustproof, waterproof (submersible), and MIL-STD-810G certified, capable of withstanding drops from 2m onto concrete.

Q: What connectivity options does the INNO8 offer?

A: The device includes UHF radio, 4G LTE, WiFi Hotspot, Bluetooth 4.0, and NFC pairing for seamless data transfer and base-rover communication.

Q: What accessories come with the South INNO8 Rover-Base Set?

A: The full set includes:

Two GNSS receivers (rover & base)
Tripod for base station
GNSS pole for rover
Tribrach & carrier with extension
Field controller with a controller holder
