South Insight V3 RTK GNSS Base And Rover Set

South

GNSS South INSIGHT V3 Rover-Base Set

Name: GNSS South INSIGHT V3 Rover-Base Set
Brand: South
SKU: MET-GPSB-10
Price: 7900.00 USD
Availability: InStock

$7,900.00

4.86

The GNSS South INSIGHT V3 Rover-Base Set combines exceptional visual positioning, 3D modeling, and a unique AR stakeout, creating a next-generation GNSS RTK system. Featuring 1698-channel GNSS tracking, Farlink 2.0 UHF radio, and a 5th-gen IMU, it provides unparalleled accuracy and efficiency for modern surveying. Perfect for all kinds of advanced work and professionals who want to get the best possible results.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The South Insight V3 Rover-Base Set is an advanced GNSS RTK system integrating dual-camera visual positioning, 3D modeling, and AR stakeout technology. With 1698-channel GNSS tracking, Farlink 2.0 UHF radio, and a fifth-generation IMU, it ensures precise measurements and efficient fieldwork. Designed to handle challenging environments, it provides surveyors with superior performance in visual positioning, remote stakeout, and seamless 3D modeling.

GNSS Channels: 1698

Supported Systems: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS

Positioning Accuracy:

RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
Static: 2.5 mm + 0.1 ppm (horizontal), 3 mm + 0.4 ppm (vertical)
PPK: 3 mm + 1 ppm (horizontal), 5 mm + 1 ppm (vertical)
IMU Tilt Correction: < 8 mm + 0.7 mm/° tilt, up to 60°

Initialization Time: 2-8 seconds

IMU Technology: 5th-generation, calibration-free, magnetic interference-resistant

Battery: 6800mAh Li-ion, up to 25 hours in rover mode

Dimensions: 134mm × 79.1mm

Weight: 800g

Material: Magnesium aluminum alloy shell

Environmental Protection: IP68-rated, MIL-STD-810G drop resistance

Communication & Connectivity:

Farlink 2.0 UHF radio (up to 12km range)
WiFi Hotspot, Bluetooth 4.1
NFC for fast pairing

Data Storage:

16GB SSD internal storage, expandable
USB plug-and-play data transfer
Supports RTCM, Rinex, and NMEA formats

Special Features:

Dual-camera system: 8MP visual positioning + 2MP AR stakeout camera
Real-time AR-guided stakeout with enhanced navigation
3D modeling via video shooting for detailed terrain mapping

1698-channel GNSS engine with full constellation tracking

5th-generation IMU tilt compensation (up to 60° tilt)

Farlink 2.0 UHF radio with up to 12km range

Dual-camera system for visual positioning and AR stakeout

3D modeling via video shooting for enhanced mapping

16GB internal storage with USB and cloud access

IP68 waterproof & MIL-STD-810G shockproof durability

6800mAh battery with up to 25-hour operation

WiFi, Bluetooth 4.1, and NFC connectivity

Smart web-based interface for easy configuration

⭐️⭐️⭐️⭐️⭐️ R. Edward – Verified Buyer – January 13, 2025

"Like every time, everything is great... 10+ High-quality products."

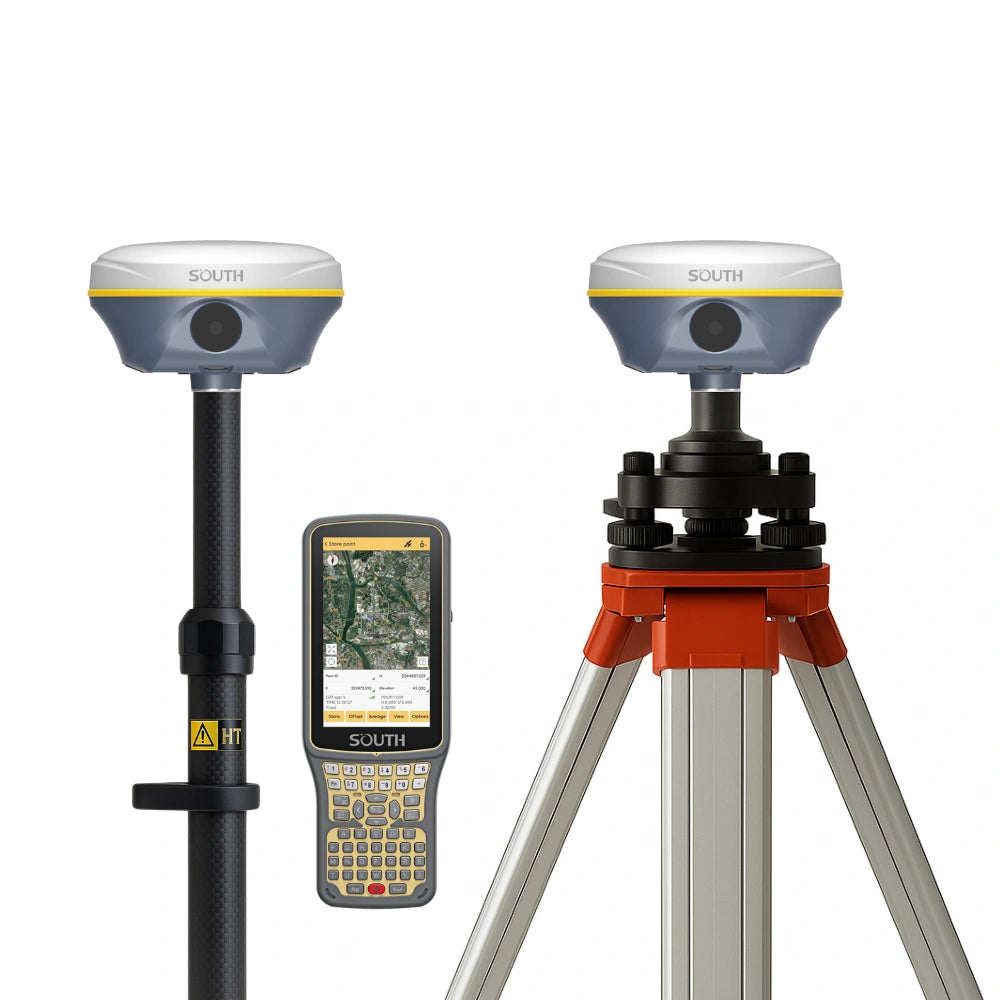

South Insight V3 GNSS Base & Rover Set

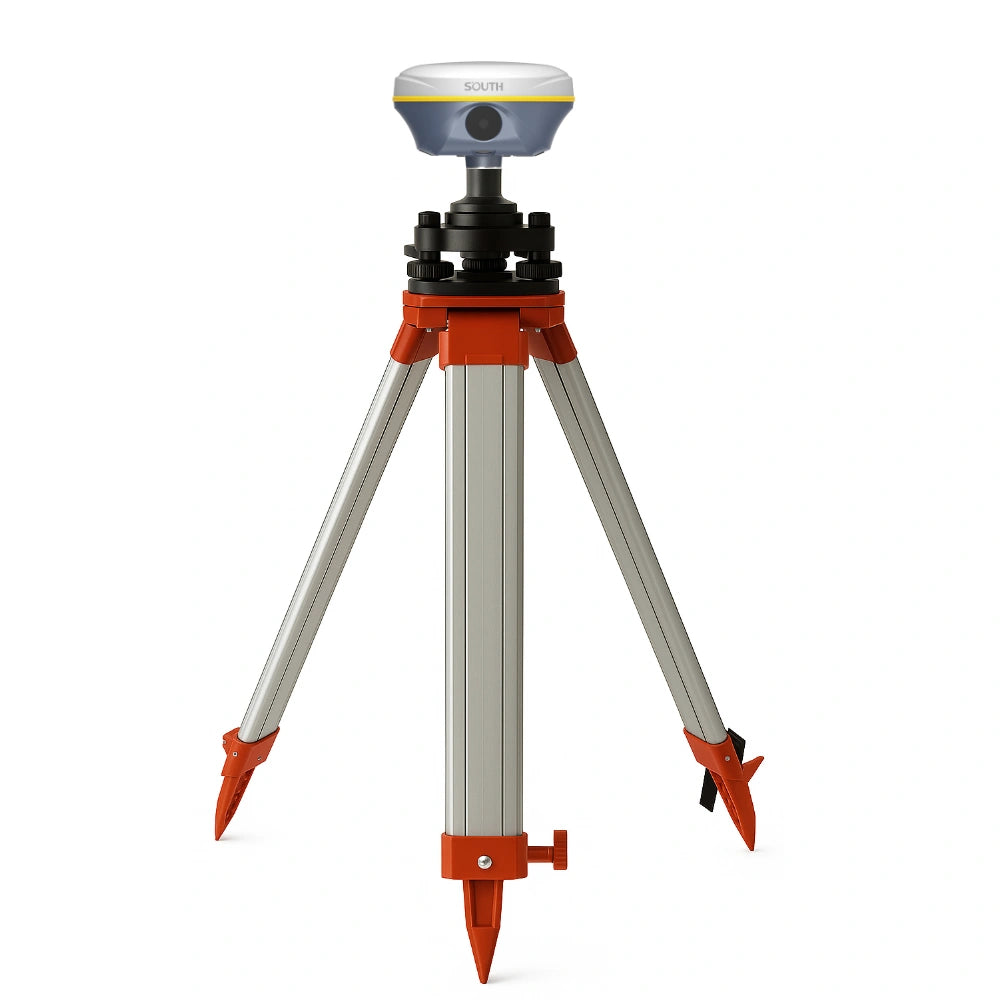

South Insight V3 GNSS RTK Receiver (Base)
South Insight V3 GNSS RTK Receiver (Rover)
Field controller (model varies)
GNSS survey pole
Tripod for base station
Tribrach & carrier with extension
Rechargeable 6800mAh Li-ion batteries (x2)
USB charging cables (x2)
Power adapters (x2)
Controller holder
Transport cases (for receiver & accessories)
Quick start guide

Q: What makes the South Insight V3 different from other GNSS RTK receivers?

A: The Insight V3 integrates dual-camera visual positioning, AR-guided stakeout, and 3D modeling via video shooting, providing an advanced surveying solution with enhanced accuracy and efficiency.

Q: How accurate is the Insight V3 in RTK mode?

A: The RTK accuracy is 8 mm + 1 ppm horizontally and 15 mm + 1 ppm vertically, ensuring centimeter-level precision for professional applications.

Q: How does the dual-camera visual positioning feature work?

A: The 8MP front-facing camera enables visual positioning for remote measurements, while the 2MP AR stakeout camera assists in precise staking by overlaying real-time navigation guidelines.

Q: What is the battery life of the Insight V3?

A: The built-in 6800mAh battery provides up to 25 hours of continuous operation, making it ideal for extended fieldwork.

Q: Can the Insight V3 perform 3D modeling?

A: Yes, the video-based 3D modeling feature allows surveyors to capture terrain details efficiently, integrating seamlessly with UAV photogrammetry and other surveying tools.

Q: Is the Insight V3 suitable for tough environments?

A: Yes, it is IP68-rated, waterproof, dustproof, and MIL-STD-810G certified, capable of withstanding extreme conditions.

Q: What connectivity options does the Insight V3 offer?

A: The device includes Farlink 2.0 UHF radio, WiFi Hotspot, Bluetooth 4.1, and NFC pairing for seamless data transfer and base-rover communication.

Q: What accessories come with the South Insight V3 Rover-Base Set?

A: The full set includes:

Two GNSS receivers (rover & base)
Tripod for base station
GNSS pole for rover
Tribrach & carrier with extension
Field controller with a controller holder
