Singular X1 GNSS Rover-Base Set

$5,600.00

The Singular X1 GNSS Rover-Base Set combines 1408-channel GNSS tracking, 60° tilt support, enhanced UHF, 4G modem, and OLED screen, all packed within a compact IP68-rated housing, which is ideal for high-performance RTK fieldwork no matter the conditions in the field.

Singular X1 GNSS Receiver: Singular X1 Standard GNSS Receiver

Singular X1 Standard GNSS Receiver Singular X1 Lite GNSS Receiver Singular X1 Pro GNSS Receiver

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The Singular X1 GNSS Rover-Base Set is a full-featured RTK GPS system built for demanding professionals. It features 1408 channels, tilt compensation up to 60°, and a built-in 1.1" OLED color display, capable of delivering robust performance with excellent user interaction.

It supports 2W UHF base-rover communication, global 4G cellular, Bluetooth, Wi-Fi, NFC, and includes Web UI for easy remote configuration. The rugged magnesium-aluminum housing and IP68 protection make it a reliable partner for the toughest environments, from construction to geodesy.

Specs

Satellite Channels: 1408
Supported Systems: GPS, BDS, Galileo, GLONASS, QZSS, NavIC, SBAS, L-Band
Tilt Accuracy: < ±2.5 cm (within 60°)
RTK Accuracy: ±8mm H / ±15mm V
Static Accuracy: 2.5 mm + 0.5 ppm H / 5 mm + 0.5 ppm V
PPP Accuracy: 5 cm H / 10 cm V
DGPS Accuracy: 0.4 m H / 0.8 m V
SBAS Accuracy: < 1.0 m (3D RMS)
RTK Init Time / Reliability: <5s typical / >99.9%
Battery: 6700 mAh; 20+ h operation; fast 3 h charging
UHF Radio: 410–470 MHz; 0.5–2W; LoRa + Trimtalk + SATEL + TrimMark3
4G Modem: Supports global bands (FDD-LTE, TDD-LTE, WCDMA, GSM, CDMA1x/CDMA2000)
Connectivity:

– USB Type-C

– Bluetooth 4.0

– NFC

– Wi-Fi (802.11 a/b/g/n/ac)

– RS232 (via 7-pin Lemo)
Data Protocols: RTCM 3.0–3.3, RINEX 3.02/3.04, NMEA 0183, CMR
Data Storage: 8 GB (expandable to 32 GB)
Display: 1.1" OLED screen
User Interface: Web UI via Wi-Fi
Voice Feedback: Optional speaker
Size & Weight: Ø133.5 mm × 67 mm; 870 g
Durability: IP68, 2 m drop resistance
Operating Temp: -40°C to +65°C
Storage Temp: -55°C to +85°C

Features

1408 GNSS Channels – Supports GPS, BDS, Galileo, GLONASS, QZSS, NavIC, SBAS, L-Band
60° IMU Tilt Surveying – Precise tilt measurements with <±2.5 cm accuracy
OLED Color Screen – 1.1" high-visibility display for real-time status and settings
Internal 2W UHF Radio – Up to 15 km range with LoRa and multiple protocol support
4G Modem with Global Bands – FDD, TDD, WCDMA, GSM, CDMA; Ntrip Client/Server/Caster
Rugged & Compact Design – IP68, drop-tested 2m, -40°C to +65°C operation
20+ Hours Battery Runtime – 6700 mAh battery, fast 3h charge
Web UI Access via Wi-Fi – Configure and monitor remotely
Voice Broadcast Support – Speaker-enabled for real-time feedback
Flexible Interface – USB Type-C, RS232, SIM slot, TNC antenna port

Singular X1 GNSS Receiver

Singular X1 Lite GNSS Receiver

Singular X1 Pro GNSS Receiver

In the Box

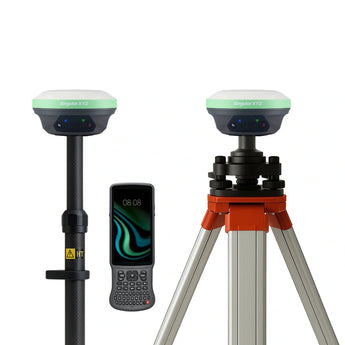

2× X1 Pro GNSS Receivers (Rover + Base)
2× UHF Antennas
2× USB-C Cables
2× Power Adapters
1× GNSS Survey Pole
1× Tripod
1× Tribrach with Optical Carrier
1× Android Field Controller
1× Controller Mount
2× Rugged Transport Cases
User Manual & Setup Guide

FAQ

Q: What’s new in X1 Pro compared to X1?

A: The X1 Pro adds a color OLED screen, voice broadcast, enhanced UI, and full global 4G support with the same GNSS power.

Q: Does it support non-contact stakeout or laser tools?

A: No laser or camera is included; it’s a high-performance GNSS + tilt + UHF + LTE solution.

Q: Can I configure it remotely?

A: Yes. You can use Web UI via Wi-Fi to monitor, update, and transfer data.

Q: Is it suitable for base-rover and CORS work?

A: Absolutely. It includes internal UHF, global 4G LTE, and standard RTCM/Ntrip protocols.

Q: What’s the runtime in full operation?

A: Over 20 hours with a 6700 mAh battery; fast charging supported.
