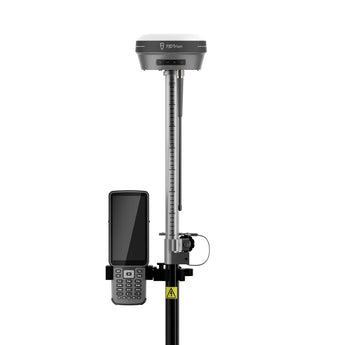

FJD TRION V10a GNSS Rover Set Controller and Receiver

FJDynamics

FJD TRION V10a - GNSS Rover Set

Name: FJD TRION V10a - GNSS Rover Set
Brand: FJDynamics
SKU: MET-GPSR-32
Availability: InStock

$0.00

The FJD TRION V10a GNSS Rover Set delivers millimeter-level RTK accuracy with up to 60° IMU tilt support, ensuring reliable results even on uneven terrain. Its compact design, dual 5 MP cameras, and AR visual guidance make surveying faster and more precise. Built-in 4G modem and multiple connectivity options provide seamless field performance for professional surveyors.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The FJD TRION V10a GNSS Rover Set is engineered for professionals needing high-precision surveying tools inthe field. With millimeter-level RTK accuracy and up to 60° IMU tilt compensation, it ensures reliable measurements even when working in difficult terrain. Its compact, pocket-sized design makes it easy to carry and operate on the go.

Equipped with dual 5 MP cameras, AR visual guidance, and CAD overlay, the V10a improves staking and site validation tasks. The built-in 4G modem and diverse connectivity options keep workflows efficient and connected during demanding outdoor projects. This combination of advanced features makes the V10a versatile solution for construction, mapping, and land surveying applications.

RTK Accuracy: Horizontal 8 mm + 1 ppm RMS; Vertical 15 mm + 1 ppm RMS
Tilt Compensation: Up to 60° with automatic adjustment
Cameras: Dual 5 MP, 83° field of view
Processor: 4-core with multi-engine algorithm
Connectivity: Wi-Fi, Bluetooth, NFC, internal/external radio
Modem: Integrated 4G (TDD-LTE, FDD-LTE, WCDMA, GSM/EDGE)
Durability: 2 m drop-proof rugged design
Indicators: 4 LED real-time status lights

RTK Accuracy (8 mm H / 15 mm V) – Reliable millimeter-level positioning
60° IMU Tilt Survey – Precise measurements without holding the pole straight
Dual 5 MP Cameras – Wide 83° view for clear visual guidance
AR Stakeout and CAD Overlay – Enhanced field productivity and accuracy
Rugged 2 m Drop-Proof Build – Durable performance in outdoor projects
Multi-Connectivity (Wi-Fi, Bluetooth, NFC, 4G) – Stable and versatile connections

FJD_Trion_V10a_GNSS_Rover_Set_Datasheet_EN.pdf

FJD TRION V10a GNSS Receiver
Survey Controller/Handheld Device
Survey Pole
Antenna and Accessories
Charging Adapter and Cables
Protective Carrying Case
User Manual

Q1: Can the V10a maintain accuracy when the pole is tilted?

A1: Yes, it supports up to 60° tilt compensation with automatic adjustment for precise results.

Q2: How does the AR visual guidance help in the field?

A2: It overlays CAD drawings and provides real-time visual stakeout, reducing errors and improving efficiency.

Q3: Does the device work in harsh outdoor conditions?

A3: Yes, its rugged design is drop-proof up to 2 meters and performs reliably in challenging environments.

Q4: What connectivity options are available?

A4: The V10a supports Wi-Fi, Bluetooth, NFC, internal and external radios, plus a built-in 4G modem.

Q5: Can it integrate with construction workflows?

A5: Yes, it allows CAD superimposition on site, helping teams evaluate and validate designs in real time.
