FJDynamics

FJD TRION V1t - GNSS Rover Set

Name: FJD TRION V1t - GNSS Rover Set
Brand: FJDynamics
SKU: MET-GPSR-31
Availability: InStock

$0.00

The FJD TRION V1t GNSS Rover Set combines a 1408-channel receiver with IMU tilt to capture points at 2.5 cm accuracy at 30° (max 60°). It fixes quickly on RTK and continues working with HAS-PPP when corrections drop. A 6500 mAh battery powers up to 15 hours of rover use, and the built-in UHF radio supports common survey protocols.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The FJD TRION V1t GNSS Rover Set delivers dependable field performance with a 1408-channel receiver, IMU tilt to 30°/2.5 cm (max 60°), and fast RTK initialization. When network links are unstable, HAS-PPP (E6) sustains positioning for continued work.

A 6500 mAh battery powers up to 15 hours of rover use, while the 1 W UHF radio supports TRIMTALK, TRIMMARK III, TT450S, TRANSEOT, and SATEL protocols. Update rates up to 20 Hz and IP67 sealing keep the GNSS rover set ready for daily surveying tasks.

Channels: 1408
Constellations: GPS, GLONASS, Galileo, BDS, QZSS, SBAS, IRNSS; HAS-PPP (E6)
RTK accuracy: Horizontal ±(8 mm+1 ppm) RMS; Vertical ±(15 mm+1 ppm) RMS
Static accuracy: H ±(2.5 mm+0.5 ppm) RMS; V ±(5 mm+0.5 ppm) RMS
PPP accuracy: H ±20 cm RMS; V ±40 cm RMS
Tilt survey accuracy: 30°/2.5 cm (H); max angle 60°
Update rate: 1–20 Hz (raw and real-time)
Battery and life: 6500 mAh; Base 10 h, Rover 15 h (typ.)
Size and weight: 162 × 86 mm; 1,070 g; IP67; −30 °C to +60°C operating
Connectivity: Bluetooth BR/EDR; Wi-Fi IEEE 802.11 b/g/n

1408 channels – robust multi-constellation tracking in dense sites
HAS-PPP (E6) – maintains positioning when RTK corrections are lost
IMU tilt 30°/2.5 cm, max 60° – capture offset points without leveling the pole
RTK accuracy ±8 mm+1 ppm (H) – precise stakeout and topo shots
Update rate up to 20 Hz – smoother navigation and line work
1 W UHF (1.8 W opt.) – extend radio reach on larger jobs
6500 mAh battery, 15 h rover – full-day productivity
IP67, −30 °C to +60 °C – handles rain, dust, and temperature swings
RTCM3.x/NMEA-0183 – integrates with common software and bases
Wi-Fi and BT BR/EDR – quick pairing to controllers

FJD_Trion_V1t_GNSS_Rover_Set_Datasheet_EN.pdf

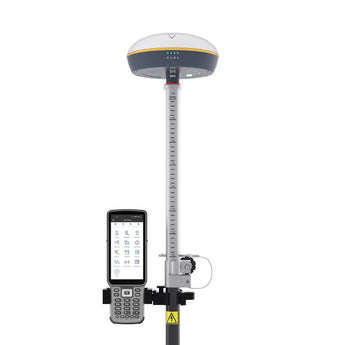

FJD TRION V1t GNSS Receiver
Survey Controller/Handheld Device
Survey Pole
Cables and Charger
Carrying Case
User Manual

Q1: How accurate is tilt surveying and what is the max angle?

A1: IMU tilt achieves 2.5 cm horizontal accuracy at 30°, with a maximum tilt angle of 60°.

Q2: Can I keep positioning if the RTK link drops?

A2: Yes. HAS-PPP (E6) provides continuous PPP positioning when RTK corrections are unavailable.

Q3: Will it interoperate with my existing UHF radios?

A3: It supports TRIMTALK, TRIMMARK III, TT450S, TRANSEOT, and SATEL 3AS 4FSK protocols at 410–470/902–928 MHz.

Q4: What update rates are available for stakeout or guidance?

A4: Both raw and real-time positioning data support 1, 2, 5, 10, and 20 Hz.

Q5: How long does the rover run in the field?

A5: Typical rover life is up to 15 hours from the 6,500 mAh battery; base operation is about 10 hours.
