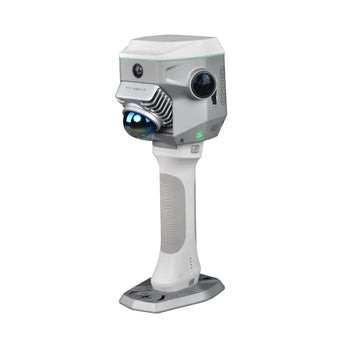

South GNSS RTK Hybrid Supreme DotLas Plus Left

South GNSS RTK Hybrid Supreme DotLas Plus

South GNSS RTK Hybrid Supreme DotLas Plus Right

South GNSS RTK Hybrid Supreme DotLas Plus Pole

South GNSS RTK Hybrid Supreme DotLas Plus Set

South

South DotLas Plus Hybrid GNSS I SLAM Receiver

Name: South DotLas Plus Hybrid GNSS I SLAM Receiver
Brand: South
SKU: MET-LS10
Availability: InStock

$0.00

South DotLas Plus Hybrid GNSS I SLAM Receiver merges a 1408-channel GNSS engine with Livox Mid-360 SLAM to maintain measurement when RTK is interrupted. It can support 0–60° tilt survey and Mixed Solution modes (Magicalc, AirMeas) for short-range <10 cm tasks. Built-in UHF RX (410–470 MHz) and Ntrip enable flexible RTK links.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

South DotLas Plus Hybrid GNSS I SLAM Receiver is a GNSS RTK hybrid that pairs a 1,408-channel engine with a Mid-360 SLAM sensor for mixed GNSS+SLAM workflows. When RTK is interrupted, Mixed Solution maintains measurement continuity, while PPP-B2b offers decimeter results without a base.

For field efficiency, it supports 0–60° tilt survey and delivers RTK accuracy of H 8 mm + 1 ppm / V 15 mm + 1 ppm. The SLAM module captures 200,000 pts/s with 0.1–70 m range for indoor and outdoor mapping. Its compact design, IP64 rating, and up to 1 TB storage make it practical for demanding survey environmentsand large-scale data collection.

Beyond GNSS and SLAM integration, the DotLas Plus offers AirMeas and Magicalc modes, enabling <10 cm accuracy for close-range and obstructed-point measurements. These applications expand usability for power line checks, building corners, and other locations where direct GNSS observation is not possible.

Connectivity is optimized with a UHF RX 410–470 MHz radio, Ntrip support, and a built-in Wi-Fi hotspot with Web UI. Combined with its iGrip 50 Wh battery, the system delivers over 2 hours of operation with quick USB-C charging, ensuring reliable performance across diverse field conditions.

Signal tracking channels: 1408
Constellations: GPS, GLONASS, BDS-2/3, Galileo, QZSS, NavIC, SBAS, L-band
Position output frequency: 1/5/10 Hz
First fixed (TTFF): cold <45 s; hot <10 s; reacquisition <1 s
GNSS accuracy (RTK): H 8 mm + 1 ppm; V 15 mm + 1 ppm
GNSS accuracy (PPK): H 3 mm + 1 ppm; V 5 mm + 1 ppm
IMU/tilt survey: 0–60°; tilt accuracy ≈ RTK + 0.7 mm/° (1.8 m pole)
SLAM sensor: Livox Mid-360; 200,000 pts/s; 10 Hz; FOV 360° × 59°; 905 nm Class 1
SLAM range: 0.1–70 m (70 m @80% reflectivity; 40 m @10%)
Networking: Ntrip (VRS/ FKP/ MAC); Wi-Fi hotspot; Web UI
Storage: 4 GB SSD (GNSS) + 512 GB SSD (SLAM), expandable to 1 TB
Display: 1.39-inch round touch, 454×454
Dimensions and weight: 120×120×340 mm; 1.4 kg (w/o handgrip), 1.8 kg (with)

1408 channels – reliable tracking across multi-GNSS constellations
0–60° tilt survey – faster shots without leveling
Livox Mid-360 (200k pts/s) – dense SLAM capture indoors/outdoors
Mixed GNSS+SLAM modes – continue measuring during GNSS outages
AirMeas contactless picks – <10 cm within 10 m for inaccessible points
UHF RX 410–470 MHz – compatibility with common rover protocols
PPP-B2b support – decimeter-level results without a local base
IP64, –20 to 50 °C – field-ready in varied conditions
Web UI + Wi-Fi hotspot – simple configuration and monitoring
SSD up to 1 TB – ample storage for point clouds and logs

South_DotLas_Plus_Hybrid_GNSS_SLAM_Receiver_Datasheet_EN

DotLas Plus unit (GNSS mainboard + SLAM scanner integrated)
iGrip 50 Wh battery handgrip
Built-in Livox Mid-360 laser scanner
Built-in UHF RX radio module (410–470 MHz)
Dual forward cameras + downward camera
1.39-inch touch LED screen
Internal SSDs: 4 GB (GNSS) + 512 GB (SLAM)

Q1: How does “Mixed Solution” differ from standard RTK?

A1: Fixed RTK uses base corrections in real time; Mixed Solution time-syncs SLAM trajectory with prior GNSS to compute positions when satellites are unlocked.

Q2: What short-range tasks fit AirMeas and Magicalc?

A2: AirMeas enables contactless picks within ~10 m (<10 cm). Magicalc continues points within ~50 m when GNSS unlocks (<10 cm), depending on scene texture and path.

Q3: What tilt performance can I expect?

A3: Tilt survey works from 0–60° with accuracy around RTK plus ~0.7 mm per degree using a 1.8 m pole.

Q4: Is the UHF link transmitter built in?

A4: The receiver includes an RX radio (410–470 MHz) supporting Farlink/SOUTH/TrimTalk450S/ZHD/HUACE protocols; it is designed for rover reception.

Q5 : How is data managed in the field?

A5: Web UI over Wi-Fi/USB, storage to internal SSDs (up to 1 TB), and transfer via USB/FTP/HTTP; supports RTCM, Rinex, NMEA outputs.
