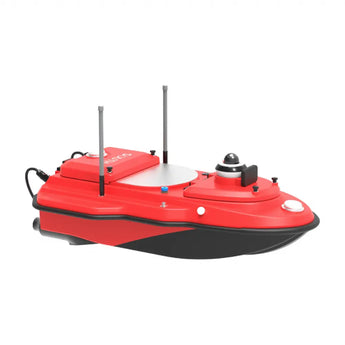

AQUA M10 USV unmanned surface vehicle for hydrographic and bathymetric surveys
Side view of AQUA M10 USV unmanned surface vehicle for hydrographic mapping
Front view of AQUA M10 USV hydrographic survey unmanned surface vehicle
Top view of AQUA M10 USV unmanned surface vehicle for marine surveys
AQUA M10 USV unmanned surface vehicle for hydrographic survey in natural environment
AQUA M10 USV unmanned surface vehicle for hydrographic and bathymetric surveys
Side view of AQUA M10 USV unmanned surface vehicle for hydrographic mapping
Front view of AQUA M10 USV hydrographic survey unmanned surface vehicle
Top view of AQUA M10 USV unmanned surface vehicle for marine surveys
AQUA M10 USV unmanned surface vehicle for hydrographic survey in natural environment

South

AQUA M10 Autonomous Bathymetric Survey USV

$29,000.00

Contact us for the best deal on this product.

The AQUA M10 Autonomous Bathymetric Survey USV is a compact marine surveying USV with a dual-antenna GNSS receiver and an in-built 200 kHz single-frequency echo sounder. It runs up to 7 hrs. at 2 m/s on a 33 V, 50 Ah battery, carries an IP67 nano-carbon composite hull, and supports 4G/network-bridge links and radio datalink for RTK corrections and remote control to 2.5 km. It is an ideal piece of equipment for various types of hydrographic surveys.

Watch the AQUA M20 in Action
Secure Payments
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
  • Quick worldwide shipping with trusted carriers
  • Multiple safe payment options for peace of mind
  • Professional advice to choose the right equipment
  • 24/7 premium customer assistance

Product Information

Professional Autonomous Bathymetric Survey Solution

The AQUA M10 delivers precise single-beam bathymetric surveying for hydrographic professionals working in lakes, rivers, reservoirs, and coastal waters. Engineered for single-operator deployment with autonomous navigation capabilities.

Precision Engineering

Built around a dual-antenna GNSS receiver with RTK compatibility and integrated 200 kHz echo sounder, the M10 achieves millimeter-level positioning accuracy. The nano-carbon composite hull provides exceptional durability while maintaining the lightweight portability essential for field operations.

Autonomous Operation

Advanced autopilot systems enable fully autonomous survey missions with precise path tracking and cruise control. Remote operation capabilities extend to 2.5 km through 4G connectivity and radio datalink, allowing comprehensive survey coverage from a safe monitoring position.

Key Advantages

  • Single-operator deployment — Complete system weighs only 6kg without battery
  • Extended mission capability — Up to 7 hours continuous operation at survey speeds
  • Professional-grade waterproofing — IP67 rating ensures reliable operation in harsh conditions
  • High-precision data collection — RTK-enabled positioning with integrated depth measurement
  • Dimensions (L×W×H): 950×500×350 mm
  • Weight (without battery): 6 kg
  • Hull material: Nano carbon-fiber polymer composite; IP67
  • Endurance: 7 hrs @ 2 m/s (single-battery; long-life option available)
  • Propulsion and speed: Electric drive; up to 7 m/s; differential/reversible steering
  • Battery: 33 V, 50 Ah, detachable Li-ion
  • Echo sounder (default): 200 kHz, 5° beam, 0.15–100 m depth, accuracy ±1 cm ±0.1%D
  • GNSS receiver: Dual antennas; GPS/GLONASS/Galileo/BeiDou/QZSS/SBAS/IRNSS
  • RTK accuracy: H ±(8+106×D) mm; V ±(15+106×D) mm
  • IMU: GNSS-inertial, 200 Hz max; heading 0.15° @ 1 m baseline; orientation 0.25° @ 1 m
  • Remote control: 7.2-in screen; up to 2.5 km connection distance
  • Communications: 4G telecom & network bridge; radio datalink for base-station RTK

Features :

Autonomous Navigation
Dual GNSS antennas provide stable heading for precise auto-pilot and line-keeping
200 kHz Echo Sounder
Built-in single-frequency sounder covers 0.15–100m depth with ±1cm accuracy
7-Hour Endurance
33V 50Ah battery system enables full-day surveys at 2m/s without interruption
Nano-Carbon Hull
IP67-rated composite construction resists impacts and simplifies maintenance
Dual Communication
4G network bridge and radio datalink ensure reliable RTK corrections up to 2.5km
Compact Design
Portable USV platform ideal for small lakes, canals, and confined water surveys
Remote Control
Wireless operation with real-time data transmission for safe shore-based monitoring
Hydrographic Ready
Complete bathymetric survey solution for environmental and engineering applications
Download Center
Reviews :
4.9/5
★★★★★
Based on verified reviews
★★★★★
Marcus Chen
Senior Hydrographic Surveyor · Verified Purchase
Exceptional Precision and Reliability
The AQUA M10 has transformed our shallow water surveying operations with its outstanding accuracy and autonomous capabilities. The dual-antenna GNSS system provides consistent RTK positioning, while the 200 kHz echo sounder delivers remarkably clean bathymetric data. The 7-hour operational endurance allows us to complete comprehensive surveys of medium-sized water bodies in a single deployment.
★★★★★
Sarah Rodriguez
Marine Engineering Consultant · Verified Purchase
Outstanding Build Quality and Remote Capability
The IP67-rated nano-carbon composite hull has proven incredibly durable in challenging marine environments. The 2.5 km remote control range via 4G and radio datalink provides excellent operational flexibility for our port and harbor surveys. Data transmission quality remains consistently reliable throughout the entire operational envelope.
★★★★★
David Thompson
Environmental Monitoring Specialist · Verified Purchase
Perfect for Autonomous Environmental Surveys
This USV has significantly reduced our field time while improving data quality for environmental compliance surveys. The autonomous operation capabilities allow us to conduct systematic grid surveys with minimal operator intervention. The compact size makes deployment and retrieval straightforward even from small boats or dock facilities.
★★★★★
Jennifer Walsh
Coastal Engineering Manager · Verified Purchase
Excellent Investment for Coastal Projects
The AQUA M10 has become an essential tool for our coastal erosion monitoring and dredging projects. The single-frequency echo sounder provides adequate resolution for our applications, and the 33V battery system offers reliable performance in various sea conditions. The ROI has been exceptional compared to traditional survey vessel operations.
★★★★☆
Robert Kim
Research Hydrographer · Verified Purchase
Solid Performance with Room for Enhancement
The AQUA M10 delivers reliable bathymetric data collection for our research applications. While the 200 kHz frequency limitation restricts deep water capabilities, the system excels in shallow and medium-depth surveys. The autonomous navigation system is intuitive and the data processing workflow integrates well with our existing software packages.

What's in the Box

Everything you need to get started.

  • ✓ 1× USV hull (AQUA M10)
  • ✓ 1× Inbuilt mini single-frequency echo sounder
  • ✓ 1× Integrated microwave radar
  • ✓ 1× Integrated 360° camera
  • ✓ 1× Integrated GNSS antennas ×2 (front and rear)
  • ✓ 1× Network-bridge antenna
  • ✓ 1× 4G telecom antenna
  • ✓ 1× Radio datalink antenna
  • ✓ 1× Battery
  • ✓ 1× Battery charger
  • ✓ 1× Remote controller
  • ✓ 1× Remote-controller charger
  • ✓ 1× Software dongle

Note: Optional accessories sold separately.

Frequently Asked Questions

General
✓ What is the maximum operational range for remote control of the AQUA M10? ▾
The AQUA M10 provides remote control capabilities up to 2.5 kilometers through its radio datalink system. This extended range allows operators to conduct surveys from a safe distance while maintaining full control over the vessel's navigation and data collection operations.
✓ How long can the AQUA M10 operate continuously on a single battery charge? ▾
The AQUA M10 operates for up to 7 hours continuously at 2 m/s using its 33V, 50Ah battery system. This extended operational duration minimizes downtime and maximizes survey productivity, making it suitable for comprehensive bathymetric mapping projects.
✓ What frequency does the integrated echo sounder operate at? ▾
The AQUA M10 features an integrated 200 kHz single-frequency echo sounder. This frequency provides optimal penetration and resolution for shallow to medium depth bathymetric surveys, delivering precise depth measurements for hydrographic applications.
✓ What communication options are available for data transmission and RTK corrections? ▾
The AQUA M10 supports multiple communication methods including 4G cellular connectivity and network-bridge links for real-time data transmission. The radio datalink system enables RTK corrections and remote control operations, ensuring high-precision GNSS positioning throughout the survey mission.
✓ What level of environmental protection does the AQUA M10 hull provide? ▾
The AQUA M10 features an IP67-rated nano-carbon composite hull, providing complete protection against dust ingress and temporary water immersion up to 1 meter depth. This robust construction ensures reliable operation in demanding marine environments while maintaining the vessel's lightweight and durable characteristics.

Still have questions? Contact our technical support team.
