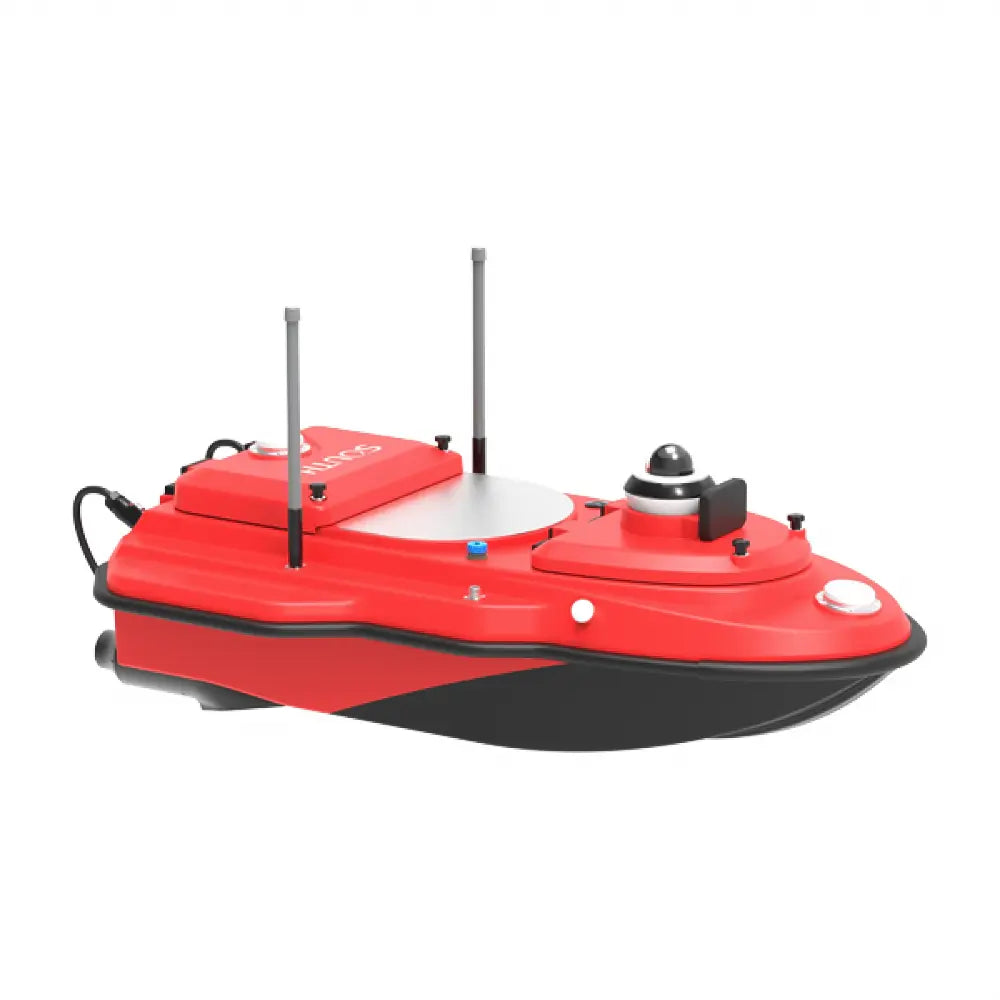

AQUA M20 USV unmanned surface vehicle for professional hydrographic and marine surveys

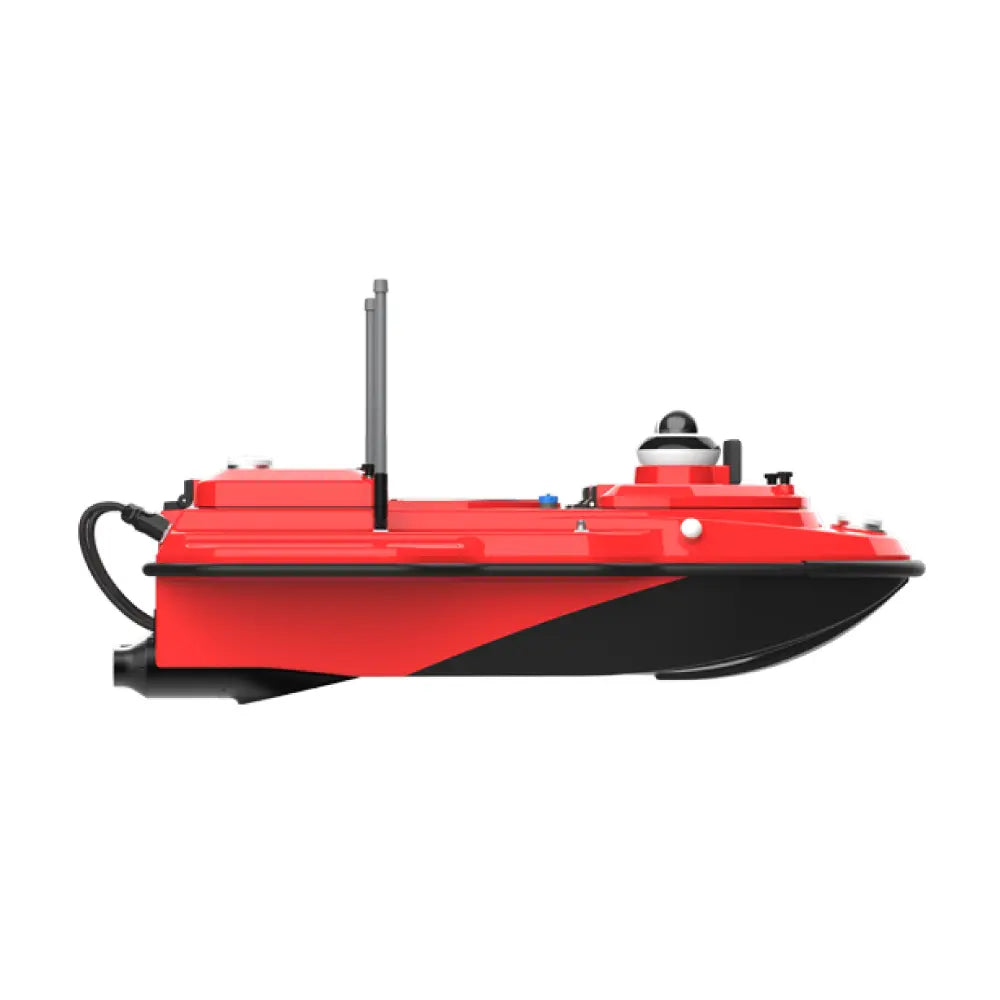

Side view of AQUA M20 USV unmanned surface vehicle for bathymetric and river surveys

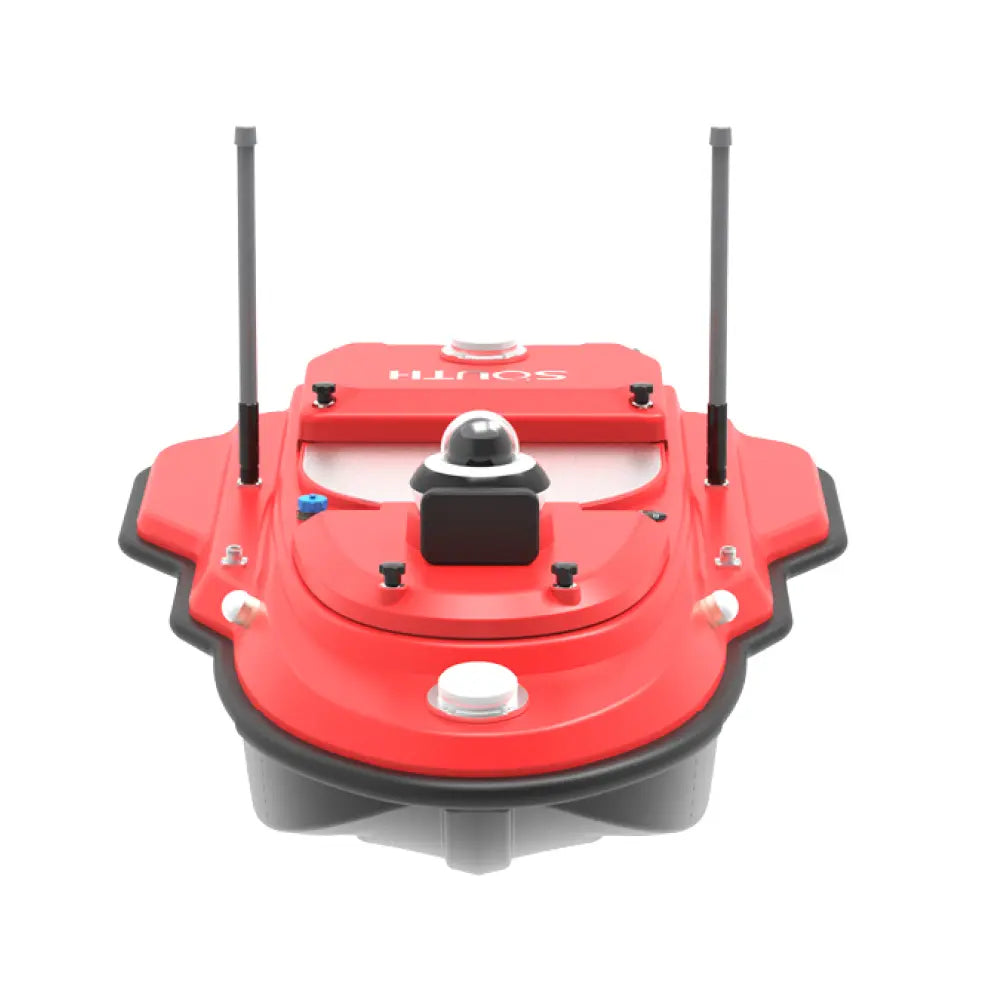

Front view of AQUA M20 USV unmanned surface vehicle for bathymetric surveys

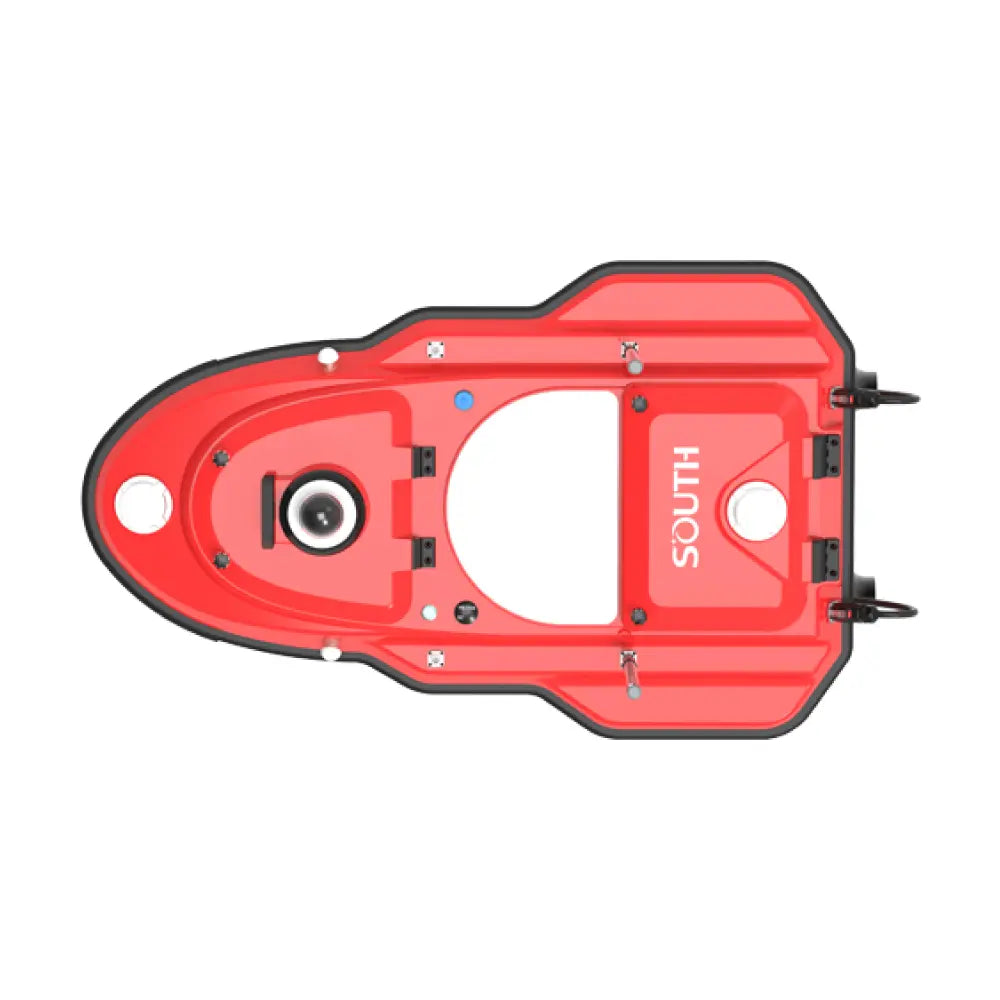

Top view of AQUA M20 USV unmanned surface vehicle for hydrographic mapping

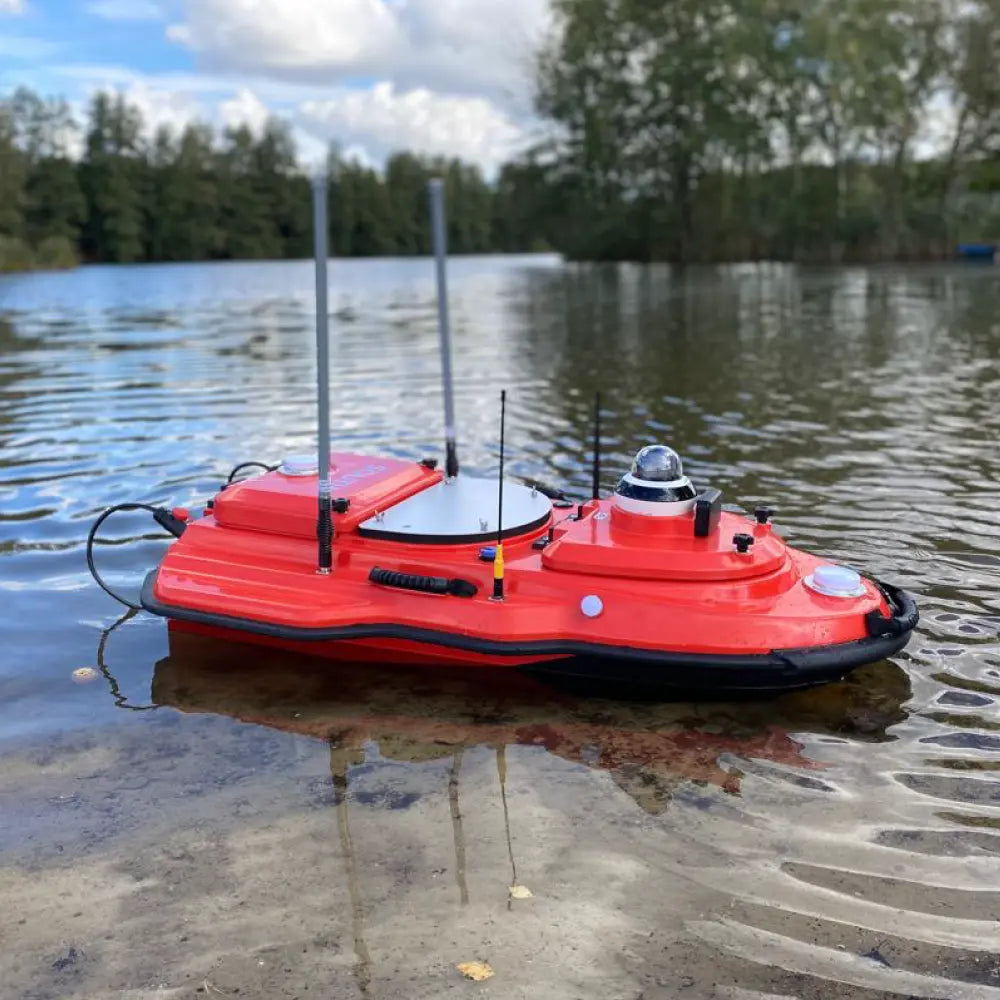

AQUA M20 USV unmanned surface vehicle for hydrographic survey in natural waters

South

AQUA M20 Autonomous Bathymetric Survey USV

Name: AQUA M20 Autonomous Bathymetric Survey USV
Brand: South
SKU: MET-MARN02
Availability: InStock

$0.00

The AQUA M20 Autonomous Bathymetric Survey USV is built for hydrographic surveying. and is a compact USV with a dual GNSS receiver and a built-in 200 kHz echo sounder for single-beam bathymetry. It cruises up to 7 m/s and runs about 5.5 hours at 2 m/s on a removable 33V 50Ah battery. It also possesses dual antennas that provide stable heading, and remote control reaches 2.5 km with live camera and data links.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The AQUA M20 Autonomous Bathymetric Survey USV is a high-performance autonomous surface vehicle designed for professional bathymetric, hydrographic, and marine survey applications. Built with a nano carbon fiber polymer hull and modular payload bay, the M20 supports a wide range of advanced sensors such as ADCP, multi-beam echo sounders, side scan sonar, sub-bottom profilers, and water quality sensors. It makes it ideal for complex underwater survey missions.

Equipped with dual GNSS antennas, integrated IMU, and real-time RTK positioning, the M20 delivers centimeter-level accuracy even in challenging marine environments. It also includes a dual-propulsion system, automatic cruise and return-to-home capabilities, and is resistant to Category 3 winds and Category 2 waves, with IP67 water resistance.

With up to 7 hours of autonomous operation, real-time video communication, 4G telemetry, and a remote control range of up to 2.5 km, the M20 USV is a complete, field-ready solution for river mapping, dredging surveys, hydrology analysis, and coastal monitoring projects, where high precision and full autonomy are required.

Dimensions (L×W×H): 1180 × 700 × 390 mm
Weight (without battery): 12.8 kg
Material: Nano carbon fiber polymer composite
IP Rating: IP67
Wind–wave resistance: Beaufort Cat 3 wind, Cat 2 waves
Propulsion: Electric drive; differential/reversible steering
Cruise speed: 7 m/s max
Endurance: 5.5 h @ 2 m/s
Battery: 33 V, 50 Ah detachable lithium
Default echo sounder: 200 kHz; 5° beam; 0.15–100 m; ±1 cm ±0.1% D
GNSS antennas: Dual (front and rear)
GNSS constellations: GPS, BDS, GLONASS, Galileo, QZSS, SBAS, IRNSS
Remote control: up to 2.5 km; 7.2-inch display

Dual ducted propellers: steady thrust for efficient cruising
Double-decker trimaran hull: improved stability on survey tracks
Built-in 200 kHz echo sounder: ready for single-beam bathymetry out of the box
Optional dual-frequency/MBES support: extend depth range up to 600 m and adapt to sites
Dual GNSS antennas + IMU: reliable heading at low speeds for straight lines
4G + radio datalink: RTK corrections and remote control on the water
7 m/s cruise with 5.5 h endurance: cover large areas with fewer swaps
7.2″ controller with 2.5 km link: plan missions and monitor video/telemetry in the field
IP67 composite hull: protects electronics during marine work
Radar + 360° camera: situational awareness for obstacle avoidance

South_M20_USV_Datasheet_EN.pdf

USV hull (AQUA M20)
Built-in mini single-frequency echo sounder
Integrated microwave radar
Integrated 360° camera
Integrated GNSS antennas ×2 (front and rear)
Network bridge antenna
4G telecom antenna
Radio datalink antenna
Battery
Battery charger
Remote controller
Remote controller charger
Transport case
Software dongle

Q1: Can the M20 mount ADCP or multibeam payloads?

A1: Yes. The moon pool supports ADCP, sub-bottom profiler, side scan, multibeam, and dual-frequency echo sounders.

Q2: How are RTK corrections delivered offshore?

A2: Via 4G telecom and a radio datalink to a base station; dual GNSS antennas provide heading for auto-pilot.

Q3: What runtime should I plan for typical bathymetry lines?

A3: About 5.5 hours at 2 m/s with the standard 33V 50Ah battery.

Q4: What water conditions is it rated for?

A4: Resistant to Beaufort Category 3 winds and Category 2 waves.

Q5: What’s the control range and interface?

A5: Up to 2.5 km using a 7.2-inch controller for route planning, live camera view, and telemetry.
