Metricop S
Wall Anchor M8 Thread I Height 40mm
Contact us for the best deal on this product.

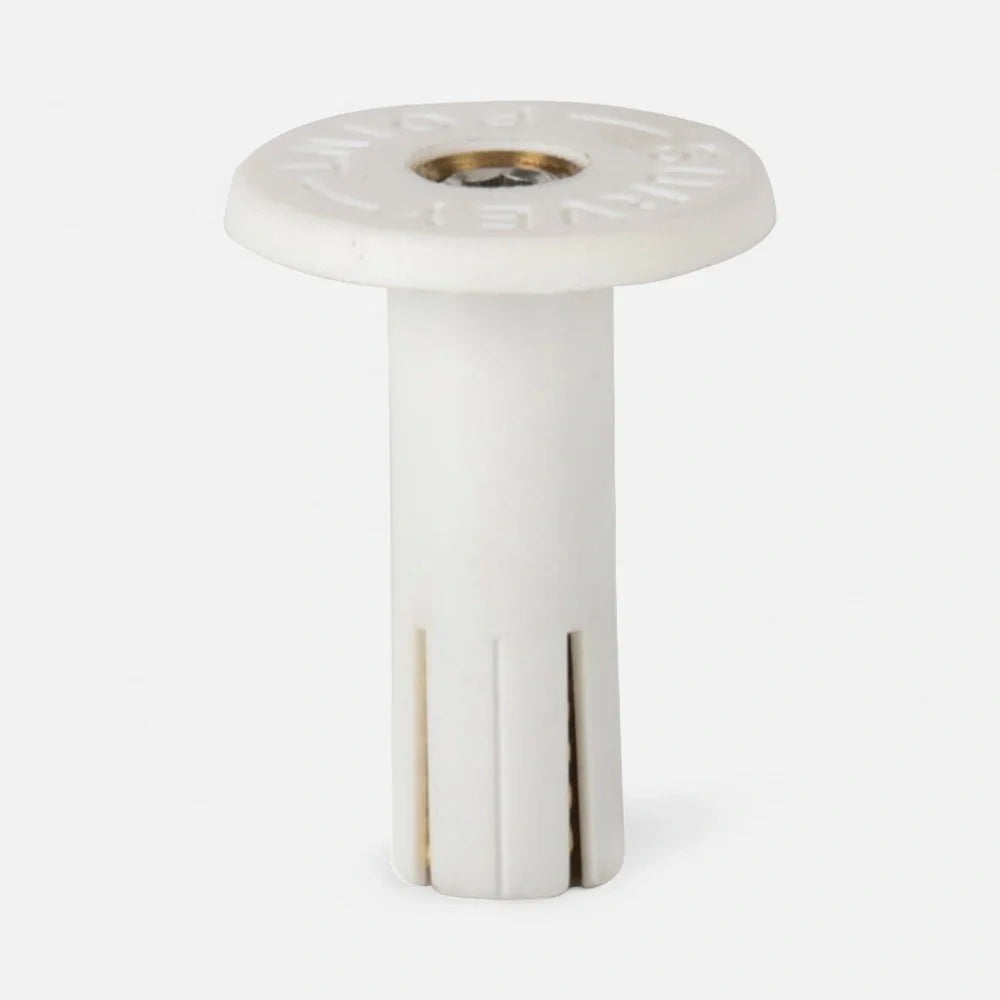

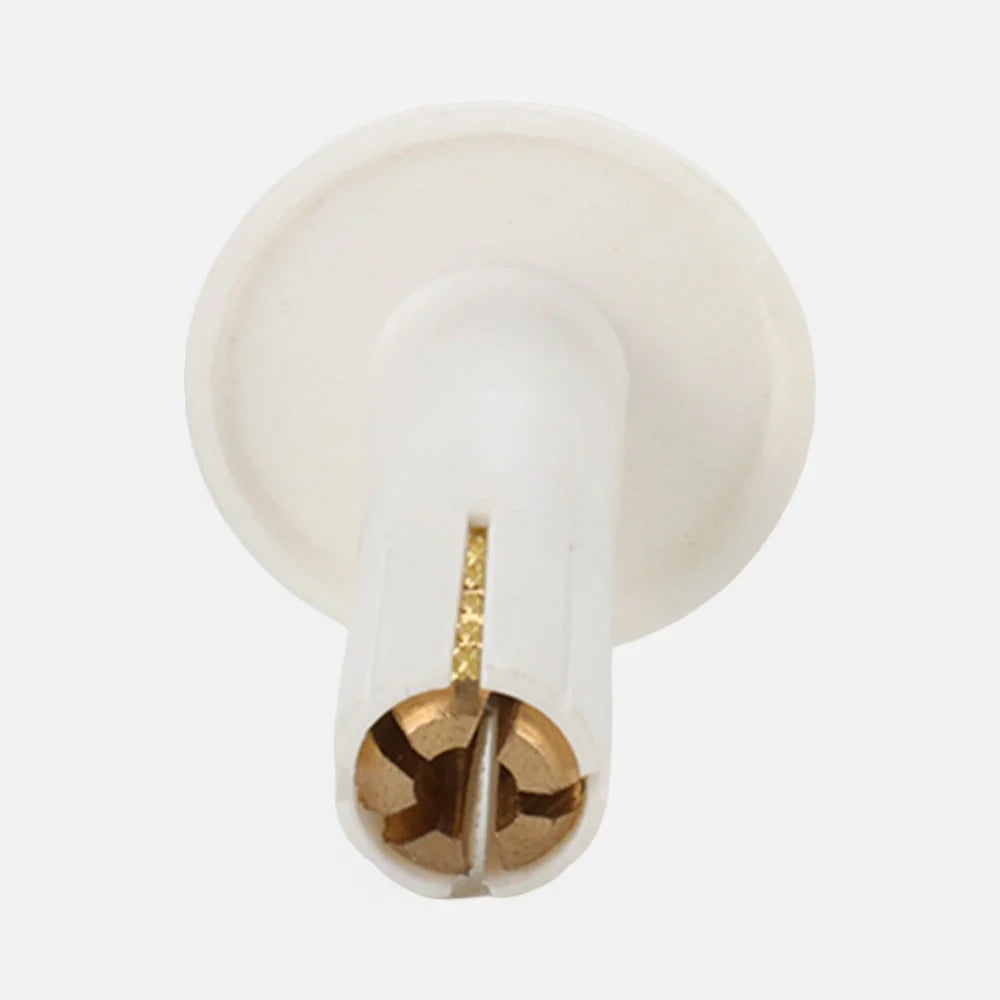

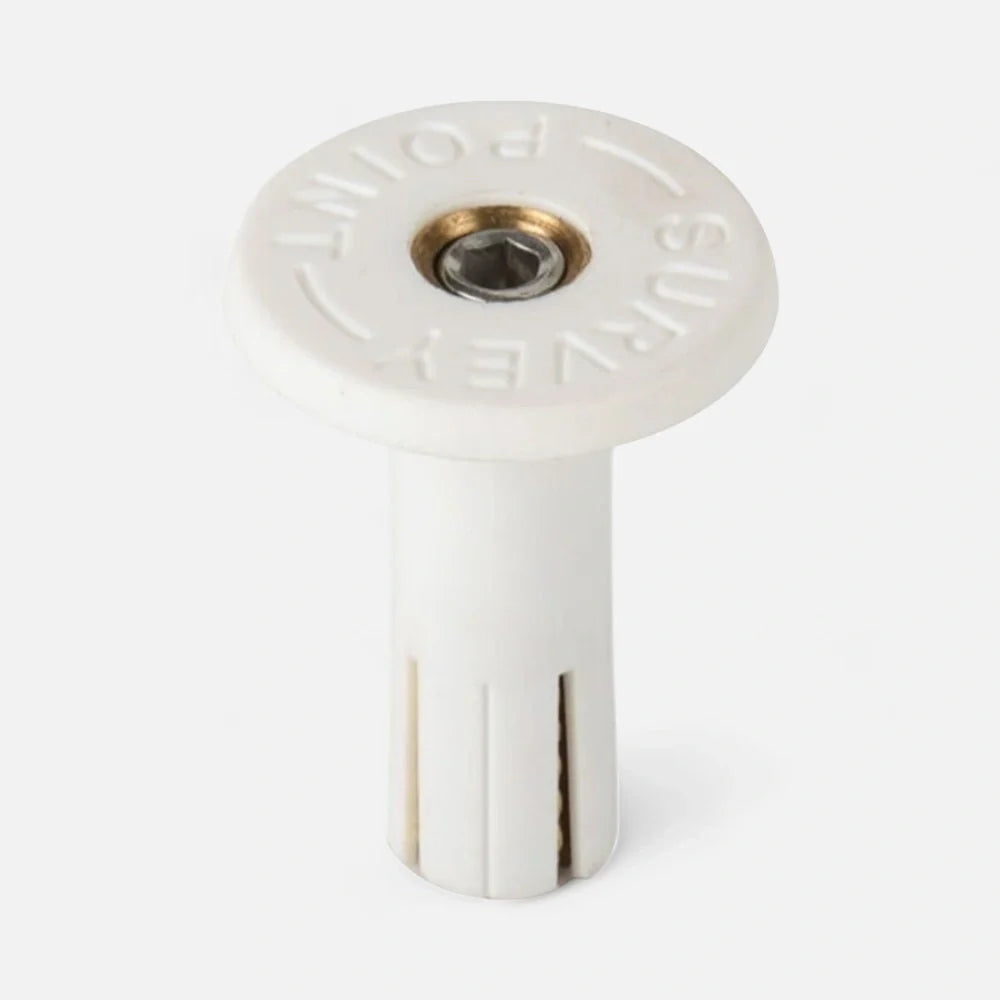

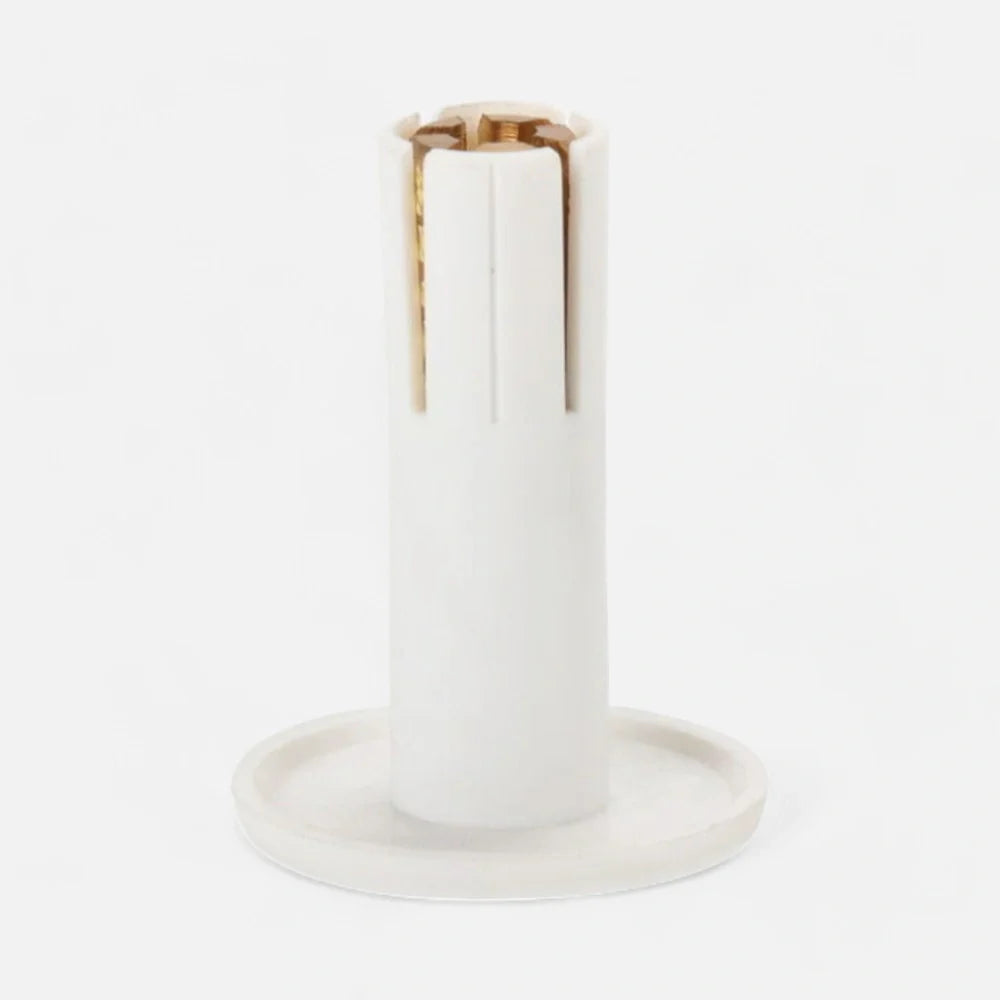

The Brass Expansion Survey Point Plug is designed for secure installation on walls or the ground, providing a highly visible and corrosion-resistant solution for various surveying applications. It features a white PVC cladding for enhanced visibility and durability. The plug has a flat head diameter of 30mm and a brass female (internal) M8 thread. With an overall length/height of 40mm, it includes a grub screw diameter of M8ž10 and a steel ball diameter of M6. The shank diameter is M12, and it requires a drill diameter of 12mm. Weighing 18-20g for the full set, it comes equipped with two M8 hex grub screws and one steel ball. Available in three highly visible colors: red, white, and yellow. Compatible with all Geomaster ADP8 Adapters (Male M8 Thread), it is suitable for survey marks, surveying prisms, prism holders, retro targets, and scanner spheres.
- Brass expansion survey point plug for installation on the wall or ground
- White PVC cladding for high visibility and corrosion resistance
- Flat head diameter: 30mm
- Brass thread: Female (internal) M8
- Overall length/height: 40mm
- Grub screw diameter: M8ž10
- Steel ball diameter: M6
- Shank diameter: M12
- Drill diameter: 12mm
- Net weight: 18-20g (full set)
- Includes 2 M8 hex grub screws and 1 steel ball
- Available in three highly visible colors: red, white, yellow
- Compatible with all Geomaster ADP8 Adapters (Male M8 Thread)
- Suitable for survey marks, surveying prisms, prism holders, retro targets, and scanner spheres
- Material: Brass with white PVC cladding
- Flat Head Diameter: 30mm
- Thread Type: Female (internal) M8
- Overall Length/Height: 40mm
- Grub Screw Diameter: M8ž10
- Steel Ball Diameter: M6
- Shank Diameter: M12
- Drill Diameter: 12mm
- Net Weight: 18-20g (full set)
- Includes: 2 M8 hex grub screws and 1 steel ball
- Color Options: Red, White, Yellow
- Compatibility: Geomaster ADP8 Adapters (Male M8 Thread)
- Applications: Survey marks, surveying prisms, prism holders, retro targets, scanner spheres
-
