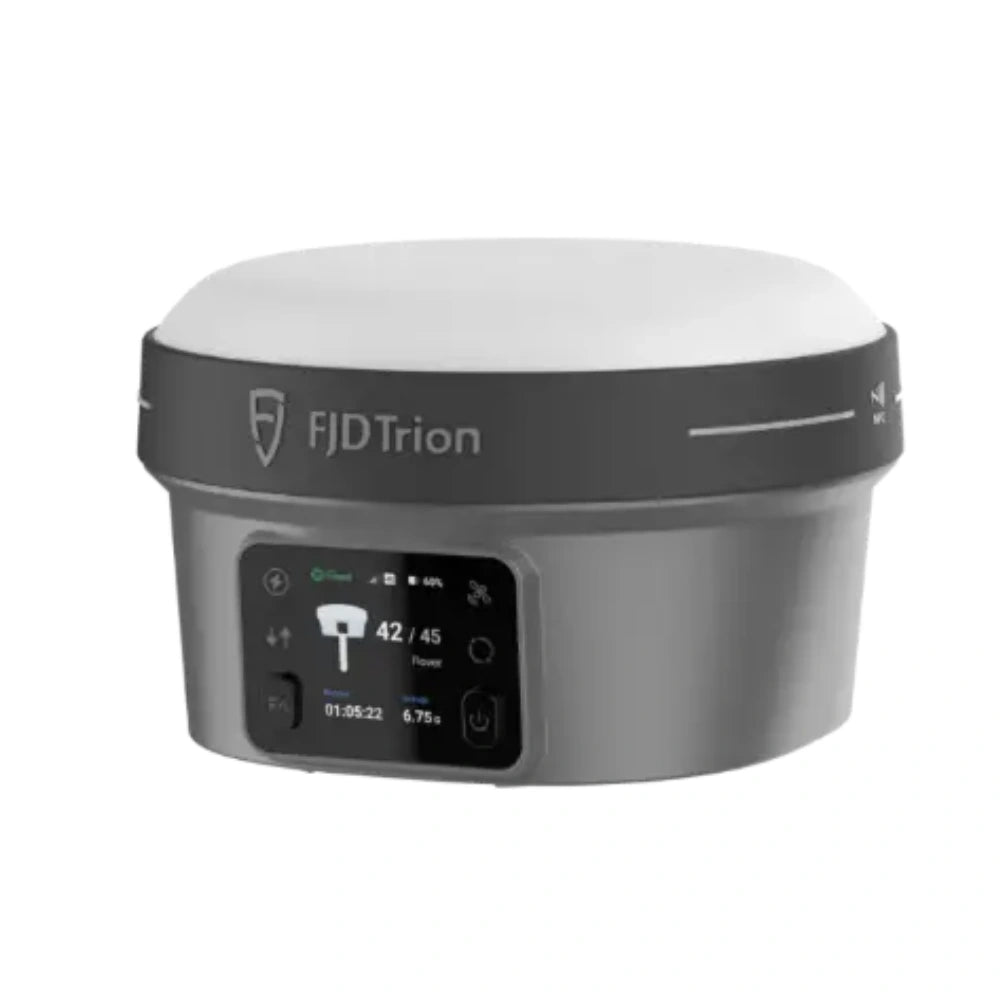

FJD Trion V10L GNSS RTK Receiver – Laser Surveying with Visual Stakeout and 2nd Gen IMU

Name: FJD Trion V10L GNSS RTK Receiver – Laser Surveying with Visual Stakeout and 2nd Gen IMU
Brand: FJDynamics
SKU: MET-GPS45
Price: 1000.00 USD
Availability: InStock

$1,000.00

The FJD V10L GNSS Rover is a high-performance RTK solution with laser-guided stakeout, dual starlight cameras, and IMU-based tilt compensation. Designed for surveyors seeking accuracy, safety, and speed in the field.

Product variants

Quantity

Secure Payments

Quick worldwide shipping with trusted carriers
Multiple safe payment options for peace of mind
Professional advice to choose the right equipment
24/7 premium customer assistance

Product Information

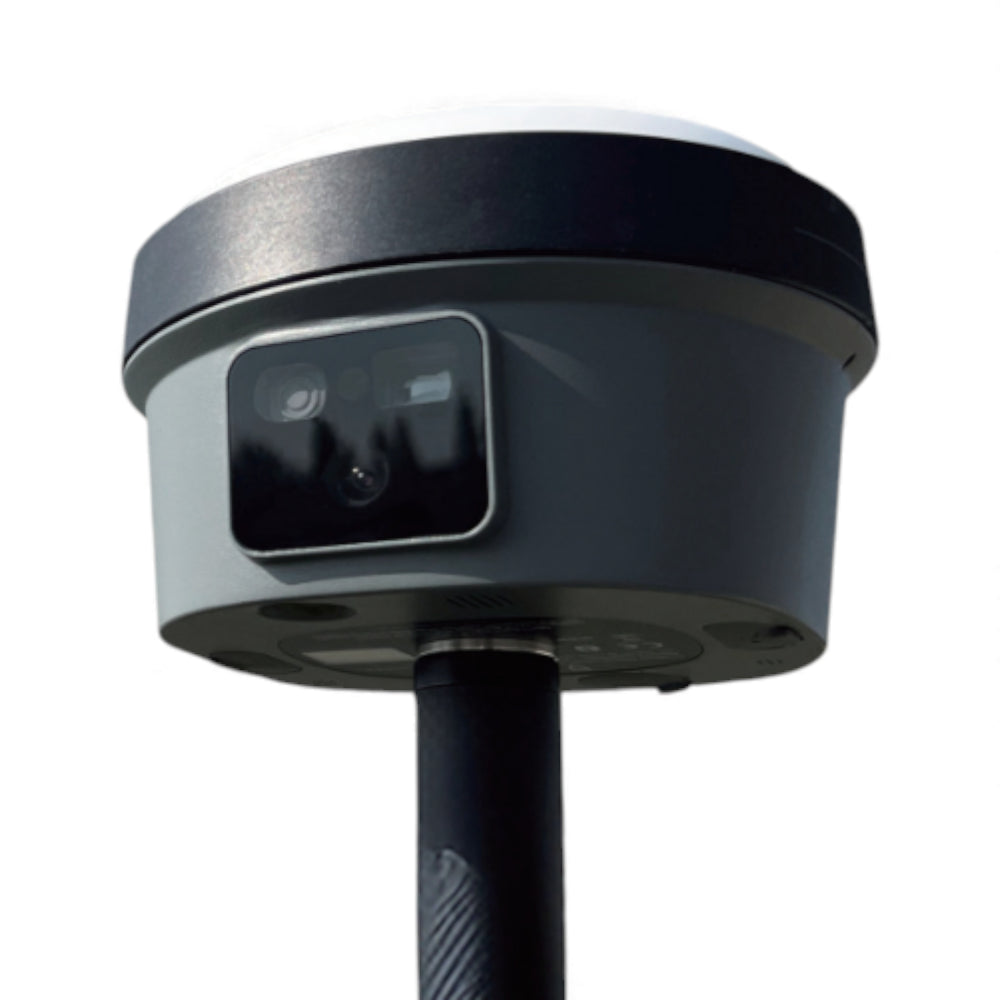

The FJD Trion V10L GNSS Rover Set is engineered for visual stakeout and extreme field performance. Equipped with a precision green laser and dual 2MP night-vision cameras, it allows you to measure from a distance without touching the point, ensuring accuracy and safety in complex terrain.

Its second-generation IMU delivers tilt compensation up to 60°, eliminating the need to level the pole. The onboard 1408-channel GNSS engine ensures reliable RTK positioning across all constellations. With built-in 4G, UHF, Wi-Fi, and Bluetooth, it connects seamlessly to CORS networks or a local base.

Whether you're working in tight urban settings, bridge edges, tunnels, or under dense foliage, the V10L Rover performs with unmatched precision.

Specifications:

GNSS Channels: 1408
Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS
RTK Accuracy: Horizontal: 8 mm + 1 ppm, Vertical: 15 mm + 1 ppm
Tilt Compensation: Up to 60°, no calibration needed
IMU Tilt Accuracy: 8 mm + 0.6 mm/°
Laser Class: 2M, 520nm, visible up to 5 m (±2 cm)
Visual Targeting Range: Up to 80 m
Cameras: Dual 2MP global shutter, starlight night vision
Battery: 7000 mAh Li-ion, up to 15 hours rover time
Data Storage: 32 GB internal
Display: 1.41" OLED, 274 pp
Communication: 4G LTE, UHF 410–470 MHz, Wi-Fi 2.4/5 GHz, NFC, Bluetooth 5.0
Protection: IP68, MIL-STD-810G, 2 m drop-resistant
Weight: 980 g
Dimensions: Diameter 130 mm × Height 83 mm

Key Features:

Green laser targeting with up to 5 m range and ±2 cm accuracy
Dual 2MP night-vision cameras with AR-assisted stakeout
Real-time IMU tilt compensation up to 60°, no calibration required
1408-channel GNSS engine (GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS)
Laser auto-alignment with EasyFix for auto-zoom and target lock
Visual targeting accuracy up to 80 m
4G LTE, Wi-Fi 2.4/5GHz, UHF radio, NFC, Bluetooth 5.0
IP68 rugged housing, 2-meter drop resistance, MIL-STD-810G certified
32 GB internal memory with OLED display
7000mAh battery for up to 15 hours of rover operation

Download Center

What’s in the Box:

FJD Trion V10L GNSS Rover Receiver
GNSS Survey Pole
Controller (model may vary)
Controller Clamp Mount
2× Li-ion Batteries
Dual Battery Charger and Power Adapter
UHF Antenna
USB-C Cable
Rugged Transport Case
Quick Start Guide

FAQ:

Q: What is the maximum non-contact measuring distance using the laser?

A: The green laser allows non-contact stakeout up to 5 meters with ±2 cm accuracy.

Q: Can the system perform well at night or in tunnels?

A: Yes, the dual starlight cameras enable AR-guided stakeout even in low-light environments.

Q: Is this unit compatible with CORS networks?

A: Yes, the built-in 4G LTE module supports NTRIP corrections for use with CORS.

Q: Do I need to level the pole before measuring?

A: No. The advanced IMU provides 60° tilt compensation without calibration, making measurements possible at an angle.

Q: How durable is the rover unit?

A: It is IP68-rated, drop-resistant up to 2 meters, and tested to military MIL-STD-810G standards.

Q: Is this compatible with visual photogrammetry apps or software?

A: This feature is available on the V10Li model. The V10L supports visual targeting and AR stakeout.

Q: What’s the difference between V10L and V10La or V10Li?

A: V10L is optimized for visual stakeout. V10La lacks the laser and visual components. V10Li includes photogrammetry support in addition to visual targeting.
