Product Information

Professional Data Transfer Cable for Leica Total Stations

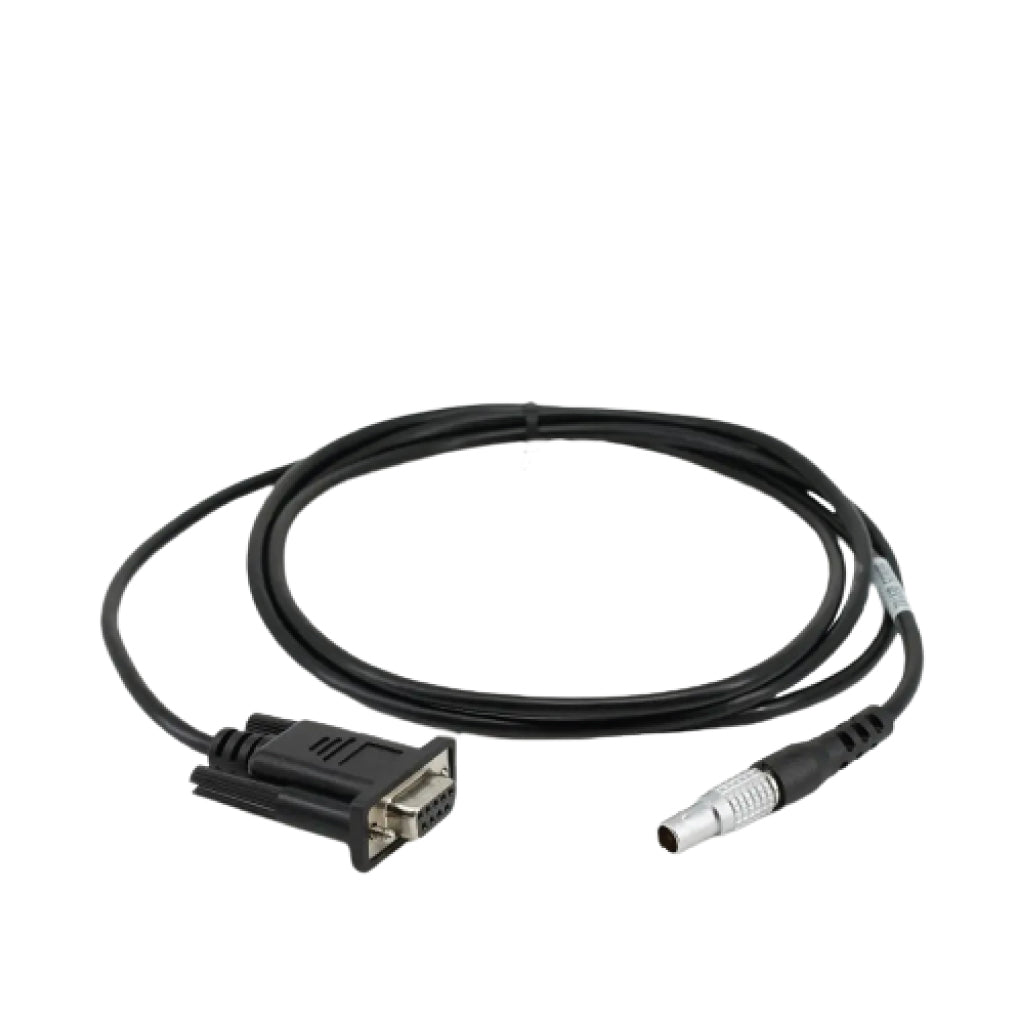

Name: GEV102 Data Cable for Leica Total-station
Brand: Leica Style
SKU: CAB02
Price: 82.00 USD
Availability: InStock

The GEV102 delivers reliable data communication between your Leica Total Station and external devices. Engineered for professional surveyors who demand consistent field performance.

Universal Connectivity Solution

Featuring dual-connector design with Cluster/COM 9 Pin and Bayonet 5 Pin (S) connections, the GEV102 bridges your Leica Total Station to computers, data collectors, and peripheral equipment. This versatile configuration ensures compatibility across multiple device types while maintaining secure, interference-free data transmission.

Field-Proven Durability

Built to withstand demanding surveying environments, this cable incorporates robust materials and reinforced connector housings. The secure bayonet locking mechanism prevents accidental disconnection during critical data transfers, while the flexible cable design resists kinking and wear from repeated field use.

• Dual connector compatibility for versatile device connections
• Secure bayonet locking prevents accidental disconnection
• Reinforced construction withstands field conditions
• Optimized cable length for practical surveying workflows

Essential Workflow Integration

Whether transferring measurement data, updating instrument firmware, or conducting remote diagnostics, the GEV102 ensures seamless communication between your Total Station and processing equipment. This essential accessory streamlines data workflows and maintains the precision standards your projects demand.

Product Name: GEV102 Data Cable

Connectors:

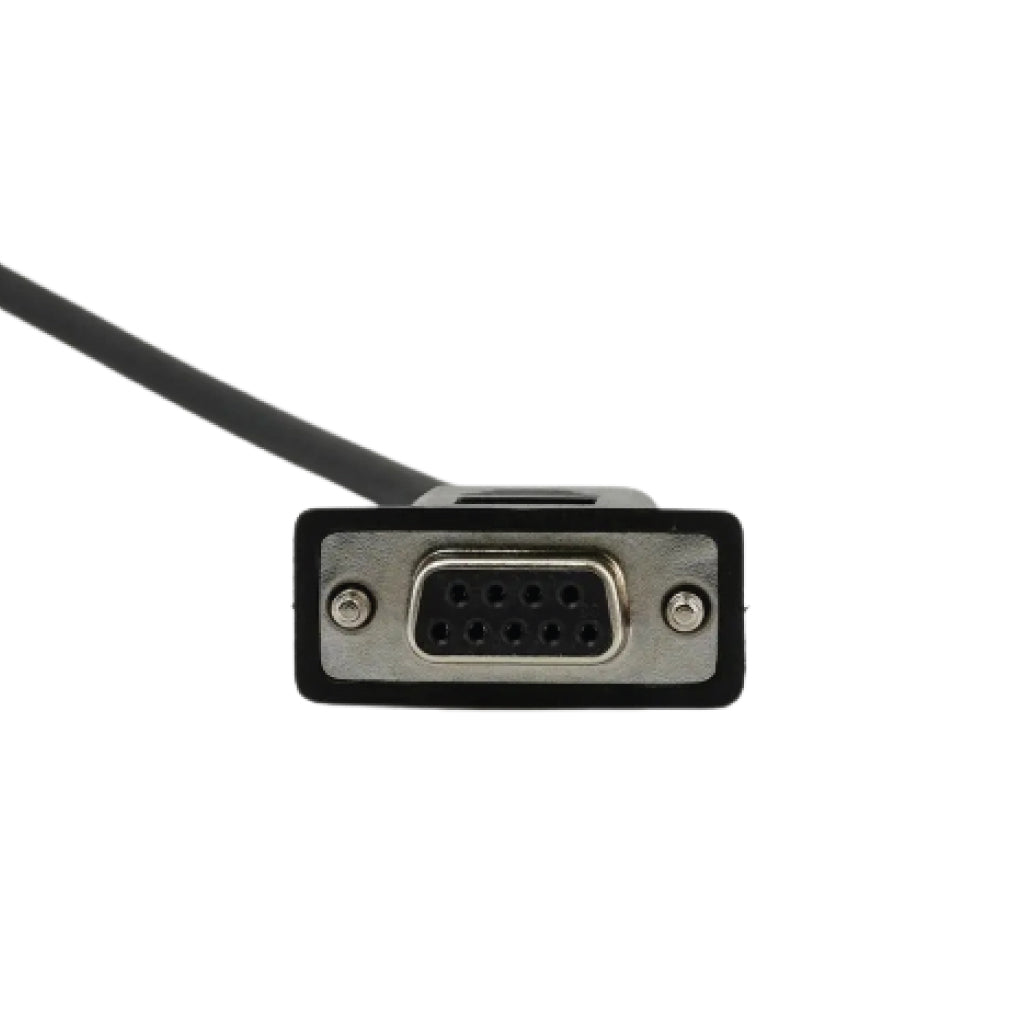

Port A: Cluster/COM 9 Pin
Port B: Bayonet 5 Pin (S)

Compatibility: Leica Total Stations and Leica Small 5 Pin Port

Material: High-quality, durable materials for longevity and performance

Features :

Reliable Data Transfer

Ensures secure and efficient communication between Leica Total Stations and compatible devices

Dual Connector System

Features Cluster/COM 9 Pin and Bayonet 5 Pin (S) connectors for versatile connectivity options

Field-Ready Durability

Built to withstand harsh surveying conditions while maintaining consistent performance

Leica Compatibility

Specifically engineered for seamless integration with Leica Total Station systems

Quick Connection

Direct connection to Leica Small 5 Pin Port for fast and convenient data transfer setup

Professional Grade

Precision-manufactured to meet the exacting standards of professional surveying applications

Download Center

Reviews :

4.8/5

★★★★★

Based on verified reviews

★★★★★

Marcus Chen

Senior Survey Technician · Verified Purchase

Essential for seamless data transfer

The GEV102 cable provides rock-solid connectivity between our Leica TS16 and data collectors. The bayonet connector locks securely and has withstood months of field conditions without any connection issues. An absolute necessity for maintaining data integrity during large infrastructure projects.

★★★★★

Sarah Rodriguez

Project Surveyor · Verified Purchase

Reliable performance in harsh environments

After six months of use in construction surveying, this cable continues to deliver consistent data transmission. The build quality is exceptional and the connectors show no signs of wear despite daily field use. Worth every penny for professional applications.

★★★★☆

David Thompson

Land Surveyor · Verified Purchase

Good quality but premium priced

The cable performs exactly as expected with our Leica equipment and maintains stable connections throughout long survey sessions. While the price point is high, the reliability justifies the cost for professional surveying work. No data loss or connection drops experienced.

★★★★★

Jennifer Park

Geospatial Engineer · Verified Purchase

Perfect compatibility and durability

This GEV102 cable is engineered to exact specifications and integrates flawlessly with our Leica total station fleet. The connector quality is superior and the cable jacket has proven resistant to environmental factors. An indispensable component for serious surveying operations.

★★★★★

Robert Kim

Survey Department Manager · Verified Purchase

Professional grade reliability

We've standardized on the GEV102 across our surveying teams and have seen zero connectivity failures in over a year of deployment. The secure bayonet locking mechanism prevents accidental disconnections during critical measurements. Highly recommended for enterprise applications.

What's in the Box

Complete data cable solution for professional surveying operations.

✓ 1× GEV102 Data Cable with Cluster/COM 9 Pin and Bayonet 5 Pin (S) connectors
✓ 1× Quick Reference Guide

Note: Total station, data collector, and software sold separately.

Frequently Asked Questions

General

✓ Which Leica Total Station models are compatible with the GEV102 cable? ▾

The GEV102 is designed for Leica Total Stations equipped with both Cluster/COM 9 Pin and Bayonet 5 Pin (S) connector configurations. This includes most professional-grade Leica Total Station series. For specific model compatibility, consult your instrument's technical documentation or contact technical support.

✓ What is the maximum data transfer range for the GEV102 cable? ▾

The GEV102 provides reliable serial communication within standard cable length limitations. Data integrity is maintained throughout the cable's full length, ensuring consistent performance in field surveying applications. The cable supports standard RS-232 communication protocols at recommended baud rates.

✓ Can the GEV102 cable be used with data collectors and field computers? ▾

Yes, the GEV102 facilitates communication between Leica Total Stations and compatible data collectors, field computers, and surveying software. The dual connector design accommodates various device configurations, making it suitable for comprehensive surveying workflows and data management systems.

✓ What maintenance is required for the GEV102 data cable? ▾

Regular inspection of connector pins and cable integrity ensures optimal performance. Clean connectors with appropriate solvents when necessary, and store the cable properly to prevent damage. Avoid excessive bending or tension during field use. The cable's robust construction minimizes maintenance requirements while maximizing operational reliability.

✓ Is the GEV102 cable suitable for harsh field conditions? ▾

The GEV102 is engineered for professional surveying environments and designed to withstand typical field conditions including temperature variations, moisture, and dust exposure. The cable construction and connector materials provide durability while maintaining signal integrity in demanding outdoor applications.

Still have questions? Contact our technical support team.
