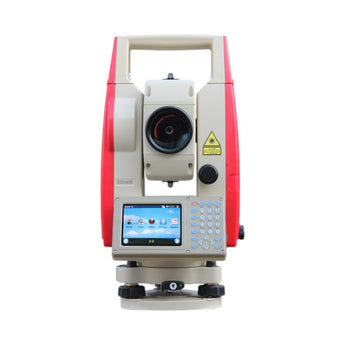

Kolida KTS-472R Series

 Specs

Distance Measurement

• Reflectorless: Up to 1000m
• Prism Mode: Up to 5000m
• Accuracy: ±(2+2ppm×D) mm (prism), ±(3+2ppm×D) mm (reflectorless)
• Measuring Time: <0.3s (Fine), <0.1s (Tracking)

Angle Measurement

• Accuracy: 2″ or 5″ (model-dependent)
• Method: Absolute Continuous Encoding
• Dual-axis compensation: Yes
• Minimum Reading: 0.1″

Display & System

• OS: Windows CE 6.0
• Touchscreen: 3.5”, 640×480 high resolution
• Software: Kolida Mapping Genius, Engineering Genius, SurvCE (optional)
• Processor: Intel PXA310 806MHz
• Memory: 128MB RAM, 512MB NAND Flash (>2,000,000 pts)

Connectivity

• Ports: USB, Mini USB, SD Card, RS-232
• Bluetooth: Yes
• Wi-Fi: Optional (not included by default after April 2022)

Optics

• Telescope: 30x magnification, 1°30′ field of view
• Minimum Focus Distance: 1m
• Laser Plummet: Yes (default), Optical optional

Power & Durability

• Battery: Rechargeable Li-ion, 7.4V, 2700–3100mAh
• Operation Time: Up to 10–20 hours (with 2 batteries)
• Protection: IP65, 2m drop-tested
• Operating Temp: –20°C to +50°C
• Dimensions: 200×190×350mm
• Weight: 6.0 kg

Features

• EDM Range: Up to 1000m (reflectorless), 5000m (with prism)
• High Accuracy: ±(2+2ppm×D) mm (reflector), ±(3+2ppm×D) mm (reflectorless)
• Fast Measurement: 0.1s in tracking mode, 0.3s in fine mode
• Dual-Axis Compensation for increased stability
• 3.5” Touchscreen with high brightness for outdoor use
• Operating System: Windows CE 6.0 with support for 3rd-party software
• Data Communication: USB, Mini USB, SD Card (up to 32GB), RS-232
• Bluetooth & Wi-Fi connectivity (Wi-Fi optional after April 2022)
• Onboard Software: Mapping Genius and Engineering Genius
• IP65 Protection: Dustproof, waterproof, 2m drop-tested
• Battery Life: Up to 20 hours with two batteries
• Laser Plummet and Coaxial Laser Pointer for easy target acquisition

KTS-472_Datasheet_EN

Kolida_KTS_472_Datasheet

In the Box

• 1× KTS-472R Total Station
• 2× Rechargeable Li-ion Batteries
• 1× Battery Charger
• 1× Communication Cable
• 1× Mini USB Cable
• 1× SD Card
• 1× Tool Kit
• 1× Dryer
• 1× Plummet
• 1× Carrying Case
• 1× Operation Manual
• 1× Warranty Card
• 1× QC Pass Certificate
• 1× Rain Cover
• 2× Belt for Carrying Case

FAQ

Q: What is the maximum range without a prism?

A: The KTS-472R10LC measures up to 1000 meters without a prism.

Q: Is this model compatible with Carlson SurvCE or FieldGenius?

A: Yes, it supports both Carlson SurvCE and MicroSurvey FieldGenius.

Q: Does it come with Wi-Fi?

A: Wi-Fi was removed from the default configuration after April 30th, 2022, but some versions may still include it optionally.

Q: How long does the battery last?

A: One battery provides up to 10 hours of operation; two batteries can run for up to 20 hours.

Q: What’s included in the box?

A: Total station, 2x batteries, charger, data cables, SD card, carrying case, tools, rain cover, plummet, operation manual.
