GNSS South INNO7 (1598) Rover-Base Set

Name: GNSS South INNO7 (1598) Rover-Base Set
Brand: South
SKU: MET-GPSB-07
Price: 6100.00 USD
Availability: InStock

$6,100.00

4.71

The GNSS South INNO7 (1598) Rover-Base Set features 5G connectivity, advanced IMU tilt compensation, and long-range UHF communication. With dual RTK engine technology, an HD touch screen, and a 64GB SSD, it offers the ultimate combination of speed, precision, and durability for professional surveyors capable of supporting you in all kinds of situations.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The South INNO7 (1598) Rover-Base Set is a next-generation GNSS RTK system featuring 5G connectivity, dual RTK engine algorithms, and an advanced IMU module. Designed for high-speed data transmission, remote surveying, and long-range UHF communication, this receiver ensures superior accuracy and efficiency in all environments. Equipped with Farlink radio technology, an HD color touch screen, and a rugged IP68-rated body, the INNO7 is built for modern surveyors who demand precision and reliability.

GNSS Channels: 1598

Supported Systems: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS

Positioning Accuracy:

RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
Static: 2.5 mm + 0.5 ppm (horizontal), 5 mm + 0.5 ppm (vertical)
PPK: 3 mm + 1 ppm (horizontal), 5 mm + 1 ppm (vertical)
IMU Tilt Correction: <10 mm + 0.7 mm/° tilt, up to 60°

Initialization Time: 2-8 seconds

IMU Technology: Fast initialization, calibration-free, magnetic interference-resistant

Battery: 3400mAh removable Li-ion, up to 12 hours (rover mode)

Dimensions: 153mm × 106mm

Weight: 1.2kg

Material: Magnesium aluminum alloy shell

Environmental Protection: IP68-rated, MIL-STD-810G drop resistance

Communication & Connectivity:

5G network module (backward compatible with 4G/3G)
Farlink UHF radio (up to 15km range)
WiFi Hotspot, Bluetooth 4.0
NFC for fast pairing

Data Storage:

64GB SSD internal storage
USB plug-and-play data transfer
Supports RTCM, Rinex, and NMEA formats

Special Features:

Dual RTK engine algorithm for enhanced accuracy
HD 1.54-inch color LCD touch screen
Auto-dialing PPP technology for real-time connectivity

1598-channel GNSS engine with full constellation tracking

Dual RTK engine algorithm for improved coordinate accuracy

Farlink UHF radio with up to 15km range

5G connectivity for high-speed data transmission

64GB internal SSD storage for extended data logging

IP68 waterproof & MIL-STD-810G shockproof durability

3400mAh removable battery with up to 12-hour operation

HD color LCD touch screen for easy interaction

Smart web-based interface for remote configuration

South__INNO7-1598__Datasheet

⭐️⭐️⭐️⭐️⭐️ L. Hafiz – Verified Buyer – May 31, 2024

"This set has exceeded my expectations, offering quick satellite acquisition and high precision. The build quality is excellent."

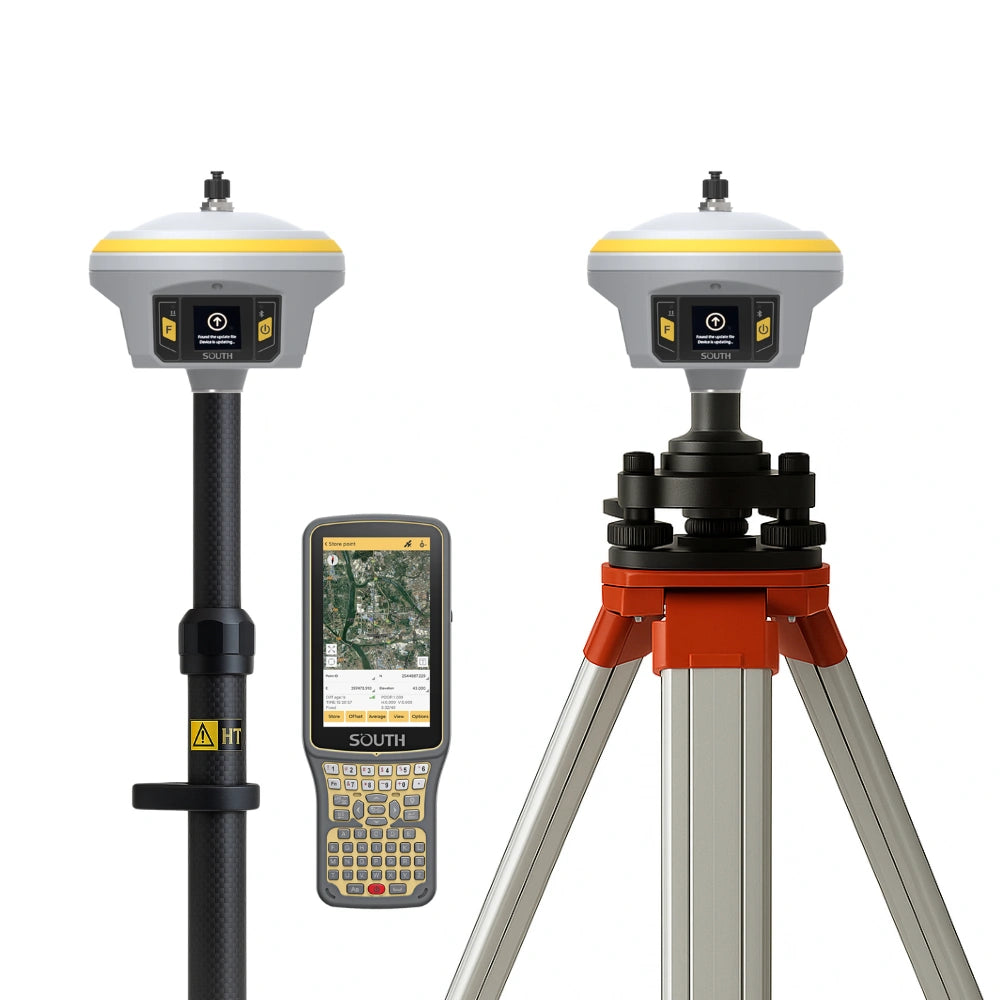

South INNO7 (1598) GNSS Base & Rover Set

South INNO7 (1598) GNSS RTK Receiver (Base)
South INNO7 (1598) GNSS RTK Receiver (Rover)
Field controller (model varies)
GNSS survey pole

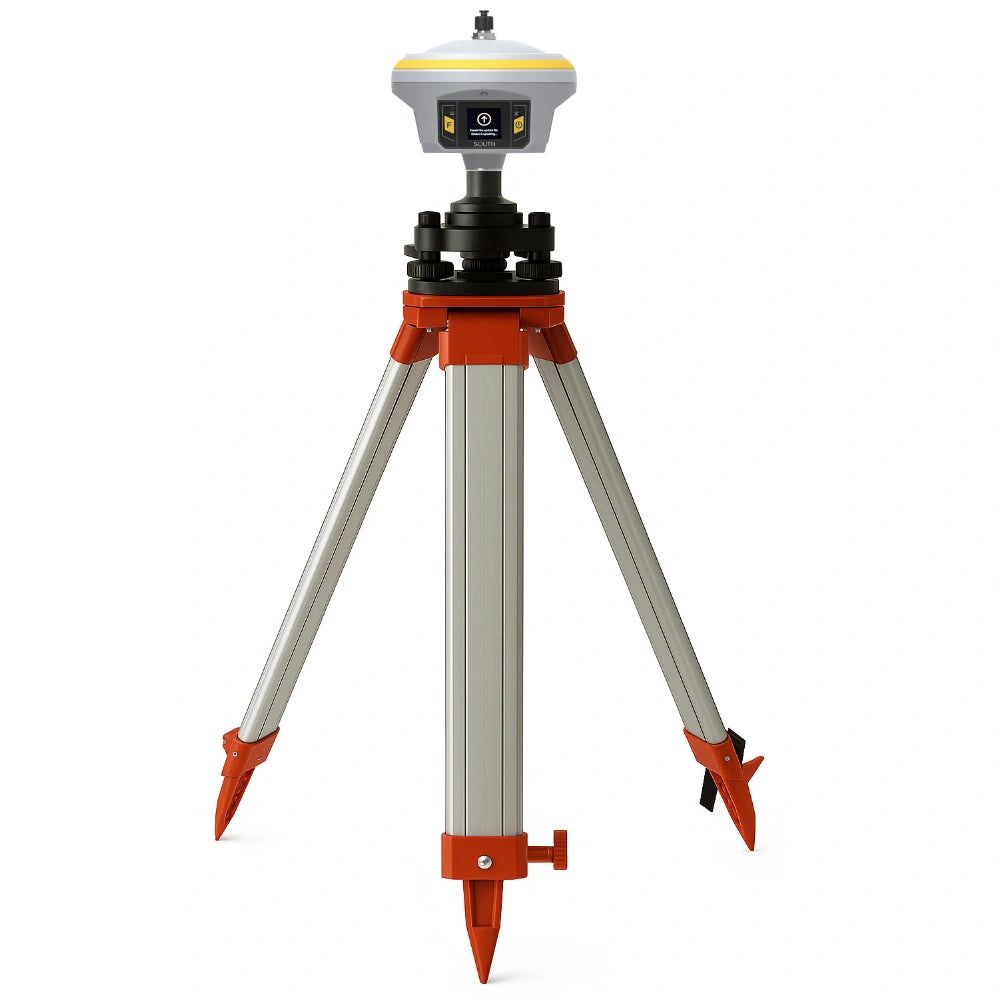

Tripod for base station
Tribrach & carrier with extension
Rechargeable 3400mAh Li-ion batteries (x2)
USB charging cables (x2)
Power adapters (x2)
Controller holder
Transport cases (for receiver & accessories)
Quick start guide

Q: What makes the South INNO7 (1598) different from other GNSS RTK receivers?

A: The INNO7 integrates 5G connectivity, dual RTK engine technology, and an HD color touch screen, making it one of the most advanced GNSS receivers for real-time precision surveying.

Q: How accurate is the INNO7 (1598) in RTK mode?

A: The RTK accuracy is 8 mm + 1 ppm horizontally and 15 mm + 1 ppm vertically, ensuring precise results for any surveying application.

Q: How does the dual RTK engine algorithm improve accuracy?

A: This technology allows the receiver to cross-check and refine coordinate calculations, reducing errors and improving measurement reliability.

Q: What is the benefit of 5G connectivity?

A: The 5G network module ensures faster data transmission, lower latency, and improved CORS network stability, making real-time corrections more reliable.

Q: What is the battery life of the South INNO7 (1598)?

A: The 3400mAh removable battery provides up to 12 hours of continuous operation, depending on the communication mode used.

Q: Can the INNO7 perform stakeout using AR technology?

A: Yes, the receiver supports AR-guided stakeout with advanced navigation assistance, allowing for more intuitive field operations.

Q: Is the INNO7 suitable for extreme field conditions?

A: Yes, it is IP68-rated, dustproof, waterproof, and MIL-STD-810G certified, ensuring maximum durability in harsh environments.

Q: What connectivity options does the INNO7 offer?

A: The device includes 5G network capability, Farlink UHF radio, WiFi Hotspot, Bluetooth 4.0, and NFC pairing for seamless data transmission.

Q: What accessories come with the South INNO7 (1598) Rover-Base Set?

A: The full set includes:

Two GNSS receivers (rover & base)
Tripod for base station
GNSS pole for rover
Tribrach & carrier with extension
Field controller with a controller holder
