GNSS South INSIGHT V2 Rover-Base Set

1598-channel GNSS engine with multi-constellation support

IMU tilt compensation (up to 60° tilt)

AR-assisted stakeout for enhanced visualization

Farlink UHF radio with up to 8km range

Compact, lightweight design with rugged IP68 protection

WiFi, Bluetooth 4.2, and NFC connectivity

4GB internal storage with USB and cloud access

6800mAh battery with up to 12-hour operation

Smart web-based interface for easy configuration

GNSS Channels: 1598

Supported Systems: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS

Positioning Accuracy:

• RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
• Static: 2.5 mm + 0.1 ppm (horizontal), 3 mm + 0.4 ppm (vertical)
• PPK: 3 mm + 1 ppm (horizontal), 5 mm + 1 ppm (vertical)
• IMU Tilt Correction: additional uncertainty < 8 mm + 0.7 mm/° tilt, up to 60°

Initialization Time: <10 seconds

IMU Technology: calibration-free, immune to magnetic interference

Battery: 6800mAh Li-ion, up to 12 hours in rover mode

Dimensions: 131mm × 80mm

Weight: 800g

Material: Magnesium aluminum alloy shell

Environmental Protection: IP68-rated, waterproof up to 2m, MIL-STD-810G drop resistance

Communication & Connectivity:

• Farlink UHF radio (up to 8km range)
• WiFi Hotspot, Bluetooth 4.2
• NFC for fast pairing

Data Storage:

• 4GB SSD internal storage, expandable up to 32GB
• USB plug-and-play data transfer
• Supports RTCM, Rinex, and NMEA formats

Special Features:

• AR-assisted stakeout with 2MP camera
• IMU tilt sensor for fast and precise staking
• Intelligent power management for extended endurance

South_Insight_V2_Datasheet

Q: What makes the South Insight V2 different from other GNSS RTK receivers?

A: The Insight V2 is a compact, palm-sized GNSS RTK receiver featuring advanced IMU tilt compensation, AR-assisted stakeout, and an intelligent power management system for extended endurance.

Q: How accurate is the Insight V2 in RTK mode?

A: The RTK accuracy is 8 mm + 1 ppm horizontally and 15 mm + 1 ppm vertically, ensuring centimeter-level precision for professional surveying applications.

Q: How does the AR-assisted stakeout feature work?

A: The built-in 2MP camera provides real-time visual guidance for stakeout, allowing users to follow on-screen cues for precise point positioning.

Q: What is the battery life of the Insight V2?

A: The built-in 6800mAh battery provides up to 12 hours of operation in rover mode and 10 hours in internal UHF base mode.

Q: Is the Insight V2 suitable for harsh environments?

A: Yes, it is IP68-rated, waterproof up to 2m, dustproof, and MIL-STD-810G certified for drop resistance.

Q: What connectivity options does the Insight V2 offer?

A: The device includes UHF radio, WiFi Hotspot, Bluetooth 4.2, and NFC pairing for seamless data transfer and base-rover communication.

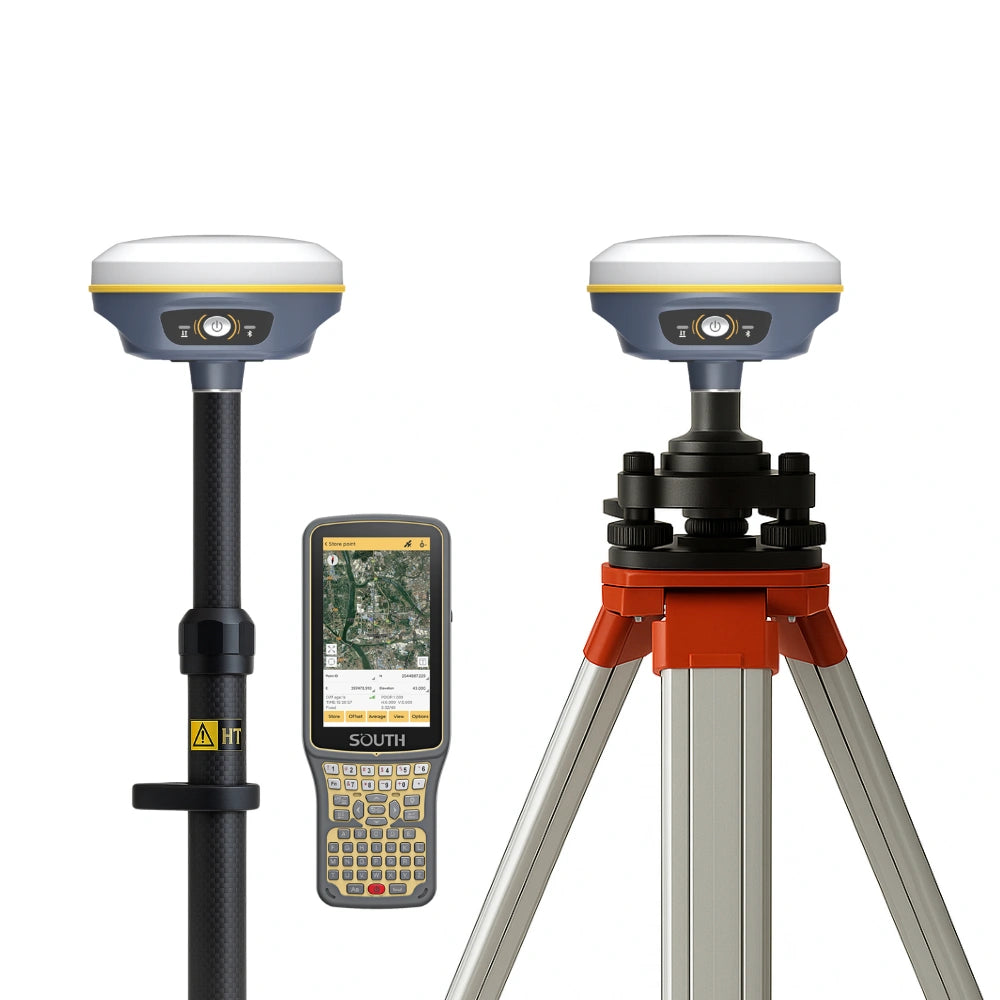

Q: What accessories come with the South Insight V2 Rover-Base Set?

A: The full set includes:

• Two GNSS receivers (rover & base)

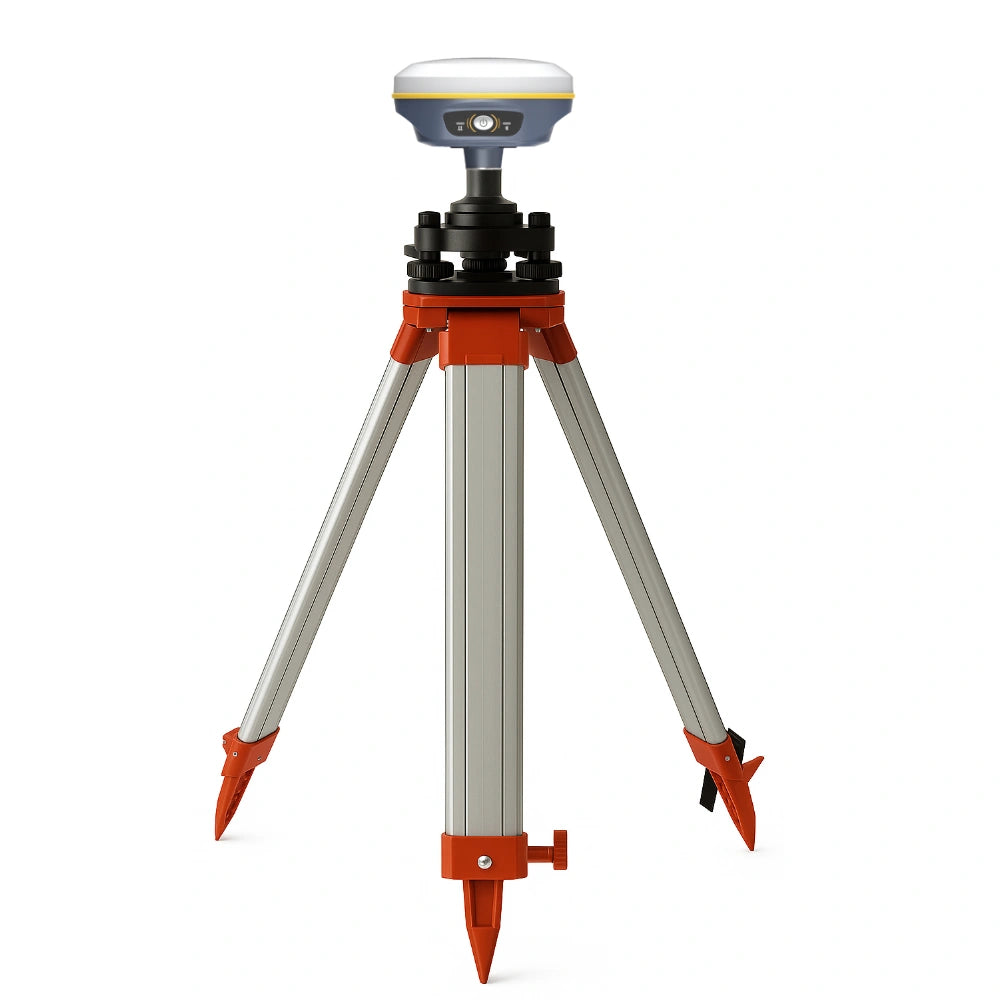

• Tripod for base station
• GNSS pole for rover
• Tribrach & carrier with extension
• Field controller with a controller holder
