PozStar P5 Base & Rover Set

Channels: Dual 1408-channel GNSS modules supporting all GNSS satellites and frequencies

IMU Technology: Tilt measurement up to 60° for both base and rover

Positioning Accuracy:

• RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
• Static: 2.5 mm + 0.5 ppm (horizontal), 5 mm + 0.5 ppm (vertical)

Data Output: NMEA format via 5-pin serial port

Connectivity:

• Bluetooth remote control
• USB Type-C port for charging and data transfer
• Radio antenna connector (410 to 470 MHz)

Battery: SAMSUNG 6,700mAh Li-ion batteries for long-term use

Dimensions: 135mm x 88.2mm (each receiver)

Weight: 825g (each receiver)

Durability:

• IP67-rated dustproof and waterproof
• 2m drop resistance

Software Compatibility:

• PozPad Android-based field software
• Optional SurPad APP for enhanced CAD and mapping functions

Dual 1408-channel GNSS receivers with advanced multi-constellation tracking

IMU tilt sensors for accurate measurements up to 60° inclination

Compact and lightweight design for enhanced portability

High-quality SAMSUNG lithium-ion batteries for long-term operation

IP67-grade protection for dust and water resistance

Bluetooth remote control and USB Type-C connectivity for easy data transfer

PozPad Android-based software for real-time data collection and stakeout

Optional SurPad APP for advanced CAD engine functions and altitude control

PozStar P5_Datasheet

PozStar P5 Base & Rover Set

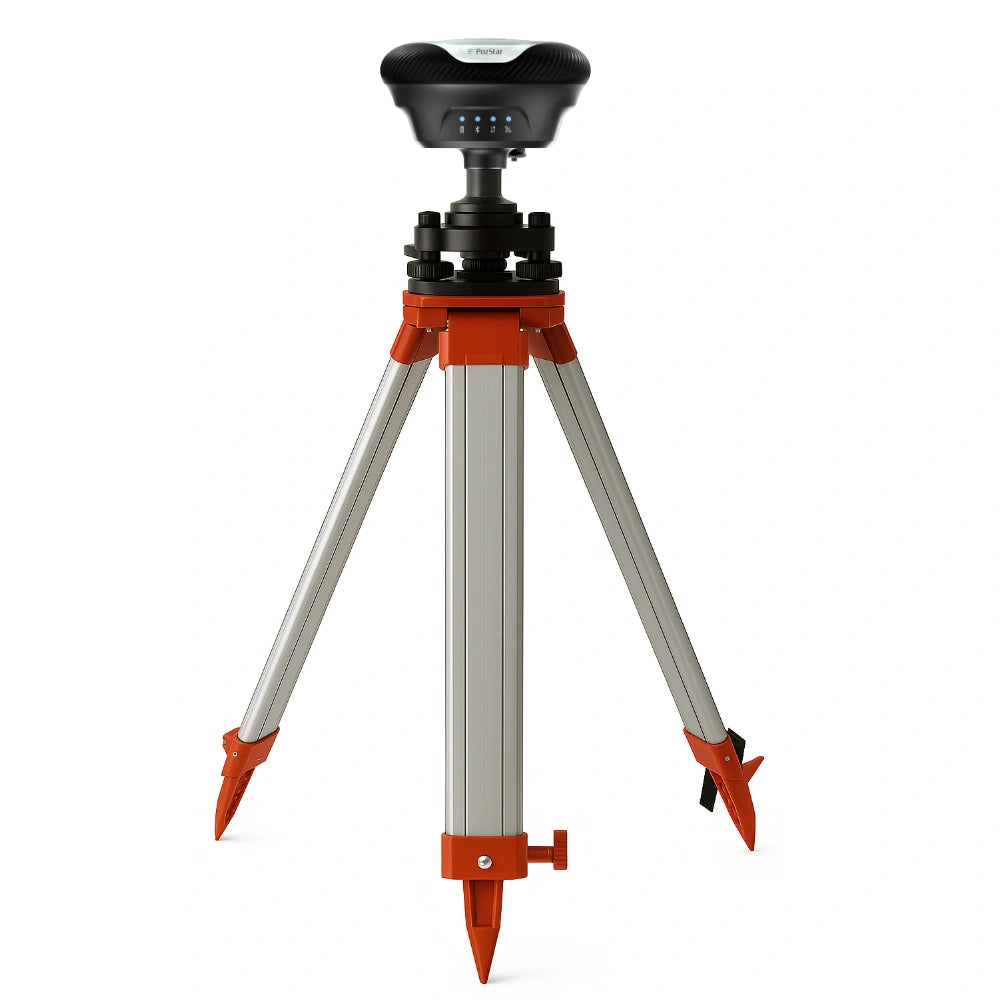

• PozStar P5 GNSS Receiver (Base)
• PozStar P5 GNSS Receiver (Rover)
• SAMSUNG 6,700mAh Li-ion Batteries (x2)
• USB Type-C Charging Cables (x2)
• Radio Antennas (x2)
• Tripod for Base Station
• GNSS Pole for Rover
• Protective Carrying Cases
• Controller Holder
• Quick Start Guide

Q: What is included in the PozStar P5 Base & Rover Set?

A: The set includes dual PozStar P5 GNSS receivers (one as base, one as rover), along with batteries, antennas, and necessary accessories for a complete RTK solution.

Q: How accurate is the PozStar P5 Base & Rover Set in RTK mode?

A: The RTK positioning accuracy is 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical), ensuring centimeter-level precision.

Q: Can the PozStar P5 be used on tilted surfaces?

A: Yes, the IMU tilt sensors support measurements up to 60°, allowing for fast and flexible data collection on uneven terrain.

Q: What is the battery life of the PozStar P5?

A: Each receiver is powered by a 6,700mAh SAMSUNG lithium-ion battery, ensuring long-term operation suitable for extended fieldwork.

Q: Is the PozStar P5 Base & Rover Set suitable for harsh environments?

A: Yes, it is IP67-rated for dust and water resistance and is drop-resistant up to 2 meters, ensuring durability in challenging conditions.

Q: What software is included with the PozStar P5?

A: It includes the PozPad Android-based field software and is compatible with the optional SurPad APP for advanced CAD and mapping functions.

Q: Does the set support Bluetooth connectivity?

A: Yes, the Bluetooth remote control allows for wireless operation and real-time data transfer, enhancing usability and productivity.
