PozStar

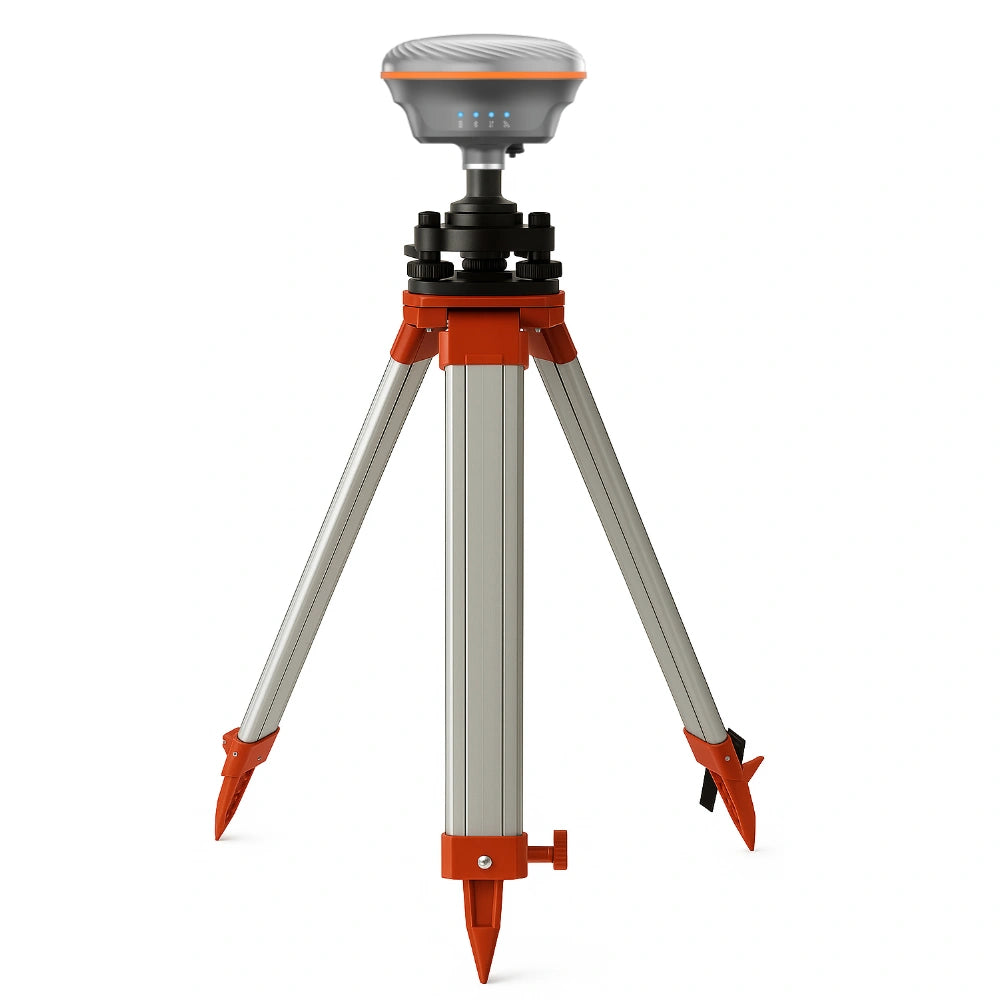

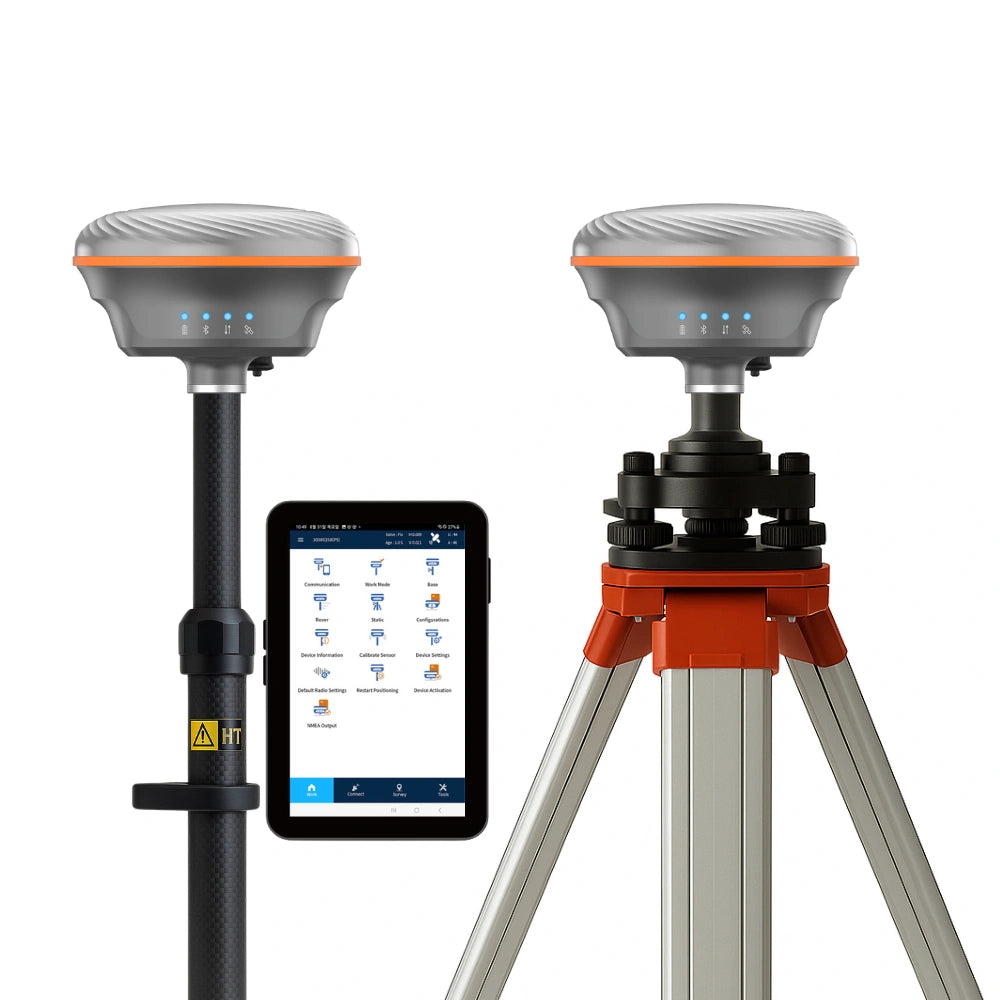

PozStar S5 Base & Rover Set

Name: PozStar S5 Base & Rover Set
Brand: PozStar
SKU: MET-GPSB-12
Price: 5900.00 USD
Availability: InStock

$5,900.00

4.83

The PozStar S5 Base & Rover Set is a very versatile GNSS RTK system specifically created for high-precision land surveying and mapping. It features dual 1408-channel GNSS receivers and IMU tilt compensation of up to 60°. You can control it with the help of the very intuitive PozPad Android-based software. It helps to deliver accurate and reliable measurements in any environment.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The PozStar S5 Base & Rover Set provides unmatched accuracy and efficiency for surveyors and geospatial professionals. This complete GNSS RTK solution includes dual PozStar S5 receivers, each equipped with 1408-channel GNSS modules supporting multi-constellation tracking. This configuration ensures reliable and high-precision RTK positioning in all environments.

With IMU tilt sensors supporting measurements up to 60°, the PozStar S5 allows fast, flexible data collection on uneven surfaces. The lightweight and compact design (135mm x 88.2mm, 825g each) enhances portability, while the IP67-rated rugged construction guarantees dustproof and waterproof protection.

The PozPad Android-based field software enables real-time mapping, stakeout, and data collection using Bluetooth connectivity. The system is powered by SAMSUNG 6,700mAh lithium-ion batteries, ensuring long-term operation for uninterrupted fieldwork. Designed and manufactured in Korea, the PozStar S5 Base & Rover Set guarantees reliability, quality, and responsive after-sales support.

Channels: Dual 1408-channel GNSS modules, supporting all GNSS satellites and frequencies

IMU Technology: Tilt measurement up to 60° for both base and rover

Positioning Accuracy:

RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
Static: 2.5 mm + 0.5 ppm (horizontal), 5 mm + 0.5 ppm (vertical)

Data Output: NMEA format via 5-pin serial port

Connectivity:

Bluetooth remote control
USB Type-C port for charging and data transfer
Radio antenna connector (410 to 470 MHz)

Battery: SAMSUNG 6,700mAh Li-ion batteries for long-term use

Dimensions: 135mm x 88.2mm (each receiver)

Weight: 825g (each receiver)

Durability:

IP67-rated dustproof and waterproof
2m drop resistance

Software Compatibility:

PozPad Android-based field software
Optional SurPad APP for enhanced CAD and mapping functions

Dual 1408-channel GNSS receivers for reliable and high-precision RTK positioning

IMU tilt sensors supporting measurements up to 60° inclination

Multi-constellation tracking for increased accuracy and satellite availability

Lightweight and compact design (825g per receiver) for enhanced portability

High-quality SAMSUNG lithium-ion batteries for long-term field operation

IP67-grade protection for dust and water resistance

Bluetooth remote control and USB Type-C connectivity for easy data transfer

PozPad Android-based software for real-time data collection, mapping, and stakeout

Optional SurPad APP for advanced CAD engine functions and altitude control

PozStar S5_Datasheet

⭐️⭐️⭐️⭐️ K. Jantosh – Verified Buyer – February 13, 2025

"I was initially hesitant to switch to the PozStar S5, but after testing it for a few weeks, I can confidently say it performs just as well as some high-end brands. It maintains a strong RTK fix, even on large infrastructure projects."

⭐️⭐️⭐️⭐️⭐️ M. Bogi – Verified Buyer – December 7, 2024

"I was a bit worried about configuring everything, but the seller provided clear instructions and even followed up to see if I needed help. The receiver connected to satellites within seconds, and the interface is simple and intuitive."

PozStar S5 Base & Rover Set

PozStar S5 GNSS Receiver (Base)
PozStar S5 GNSS Receiver (Rover)
SAMSUNG 6,700mAh Li-ion Batteries (x2)
USB Type-C Charging Cables (x2)
Radio Antennas (x2)
Tripod for Base Station
GNSS Pole for Rover
Protective Carrying Cases
Controller Holder
Quick Start Guide

Q: What is included in the PozStar S5 Base & Rover Set?

A: The set includes dual PozStar S5 GNSS receivers (one as base, one as rover), along with batteries, antennas, and necessary accessories for a complete RTK solution.

Q: How accurate is the PozStar S5 Base & Rover Set in RTK mode?

A: The RTK positioning accuracy is 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical), ensuring centimeter-level precision.

Q: Can the PozStar S5 be used on tilted surfaces?

A: Yes, the IMU tilt sensors support measurements up to 60°, allowing for fast and flexible data collection on uneven terrain.

Q: What is the battery life of the PozStar S5?

A: Each receiver is powered by a 6,700mAh SAMSUNG lithium-ion battery, ensuring long-term operation suitable for extended fieldwork.

Q: Is the PozStar S5 Base & Rover Set suitable for harsh environments?

A: Yes, it is IP67-rated for dust and water resistance and is drop-resistant up to 2 meters, ensuring durability in challenging conditions.

Q: What software is included with the PozStar S5?

A: It includes the PozPad Android-based field software and is compatible with the optional SurPad APP for advanced CAD and mapping functions.

Q: Does the set support Bluetooth connectivity?

A: Yes, the Bluetooth remote control allows for wireless operation and real-time data transfer, enhancing usability and productivity.
