FJD TRION V10i GNSS Receiver In Nature Angled

FJDynamics

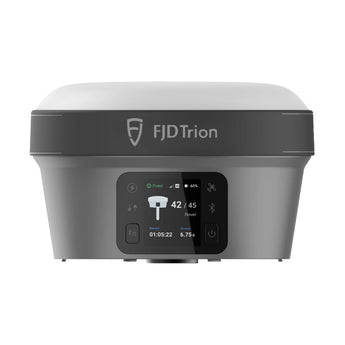

FJD TRION V10i GNSS Receiver

Name: FJD TRION V10i GNSS Receiver
Brand: FJDynamics
SKU: MET-GPS44
Price: 1000.00 USD
Availability: InStock

$1,000.00

The FJD TRION V10i GNSS Receiver delivers precise RTK positioning with 1408 channels supporting GPS, GLONASS, Galileo, and BeiDou, ensuring stable and accurate results in the field. Featuring IMU-based 60° tilt compensation and dual cameras (2 MP forward, 5 MP downward), it simplifies surveying tasks. Its rugged IP68-rated design and long battery life make it reliable for demanding projects.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The FJD Trion V10i is a premium visual GNSS receiver with AR stakeout and photogrammetry, designed to redefine surveying accuracy and user experience in the field. Powered by the Septentrio Mosaic-X5 GNSS module with 1408 channels, it delivers high-precision RTK performance, supporting full-constellation tracking including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.

What sets the V10i apart is its visual measurement technology and augmented reality stakeout feature. Using dual cameras (2 MP forward, 5 MP downward) and advanced algorithms, the device achieves 3–5 cm accuracy even without a controller—ideal for hard-to-reach or unsafe locations.

The V10i supports IMU-based tilt compensation up to 60°, enabling surveyors to take precise measurements without leveling the pole. It features a sunlight-readable OLED display, noise-canceling microphone, and internal 7000 mAh battery for 15+ hours of rover operation.

With 4G connectivity, NFC, Bluetooth, Wi-Fi, and UHF radio in one unit, the V10i is a true all-in-one solution for cadastral, topographic, infrastructure, and coastline surveys. Its IP68-rated waterproof aluminum body withstands 2-meter drops, extreme temperatures, and harsh jobsite conditions.

For surveyors who demand real-time visual data, seamless connectivity, and smart field tools, the FJD V10i offers unmatched versatility, efficiency, and AR precision—all in one rugged receiver.

GNSS Channels: 1408, supporting GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Positioning Accuracy: Horizontal 8 mm + 1 ppm RMS; Vertical 15 mm + 1 ppm RMS
Sensor Resolution: Forward 2 MP; Downward 5 MP
Visual Measurement Accuracy: Typically 3–5 cm
Tilt Compensation: Up to 60° calibration-free
Initialization Time: <5 seconds with >99.9% reliability
Connectivity: 4G modem, UHF radio, Wi-Fi (2.4/5 GHz), Bluetooth, NFC
Internal Memory: 32 GB onboard storage
Battery: 7000 mAh; Rover 15 h, Base 10 h, Static >25 h
Durability: IP68 dustproof, waterproof, 2 m drop-proof

1408 GNSS channels – Full constellation tracking for maximum signal stability
IMU-based tilt compensation – Survey freely up to 60° without calibration
Visual Measurement – Achieve 3–5 cm accuracy with photos and video only
AR Stakeout – Faster, smoother, and more intuitive fieldwork
Dual cameras – Capture field visuals for precision and documentation
OLED display – Sunlight-readable for outdoor use
IP68 rugged body – Reliable in wet, dusty, and rough environments
Long battery life – Supports extended field sessions without interruption
Fast initialization (<5s) – Start surveying quickly with high reliability
Multi-connection support – SIM card, UHF, Wi-Fi, Bluetooth, and NFC

FJD TRION V10i GNSS Receiver
UHF antenna
Carrying case
USB Type-C cable
Power adapter with fast charging
Quick start guide and documentation

Q1: How accurate is the V10i for RTK surveys?

A1: It delivers 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical RTK accuracy.

Q2: Can the V10i perform measurements without keeping the pole upright?

A2: Yes, it supports 60° tilt compensation with no calibration needed.

Q3: Does the V10i support visual surveying?

A3: Yes, its dual cameras enable visual measurement with 3–5 cm accuracy, useful for hard-to-reach areas.

Q4: How durable is the receiver in the field?

A4: It is IP68-rated, waterproof, dustproof, and survives a 2 m drop.

Q5: What is the typical battery performance during long surveys?

A5: The 7000 mAh battery runs up to 15 hours in rover mode and over 25 hours in static mode.
