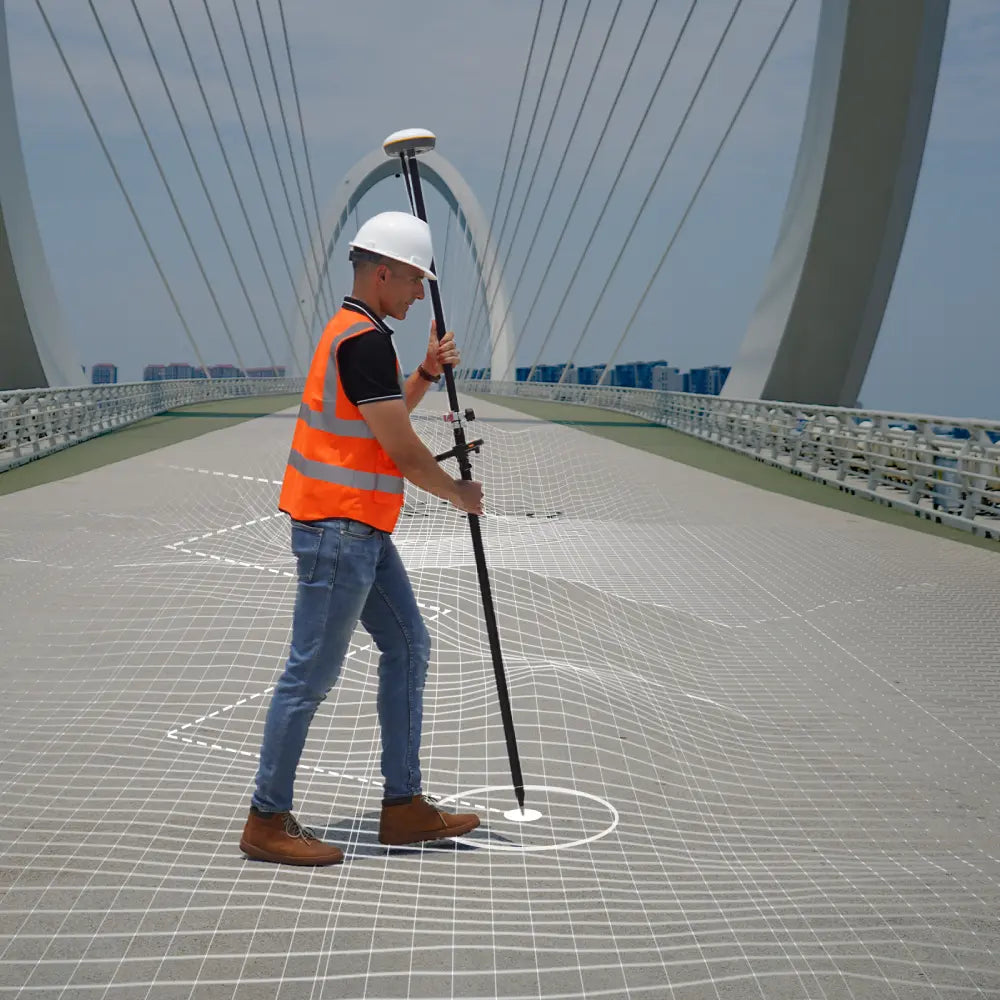

FJD TRION V1t GNSS Receiver Bridge Survey

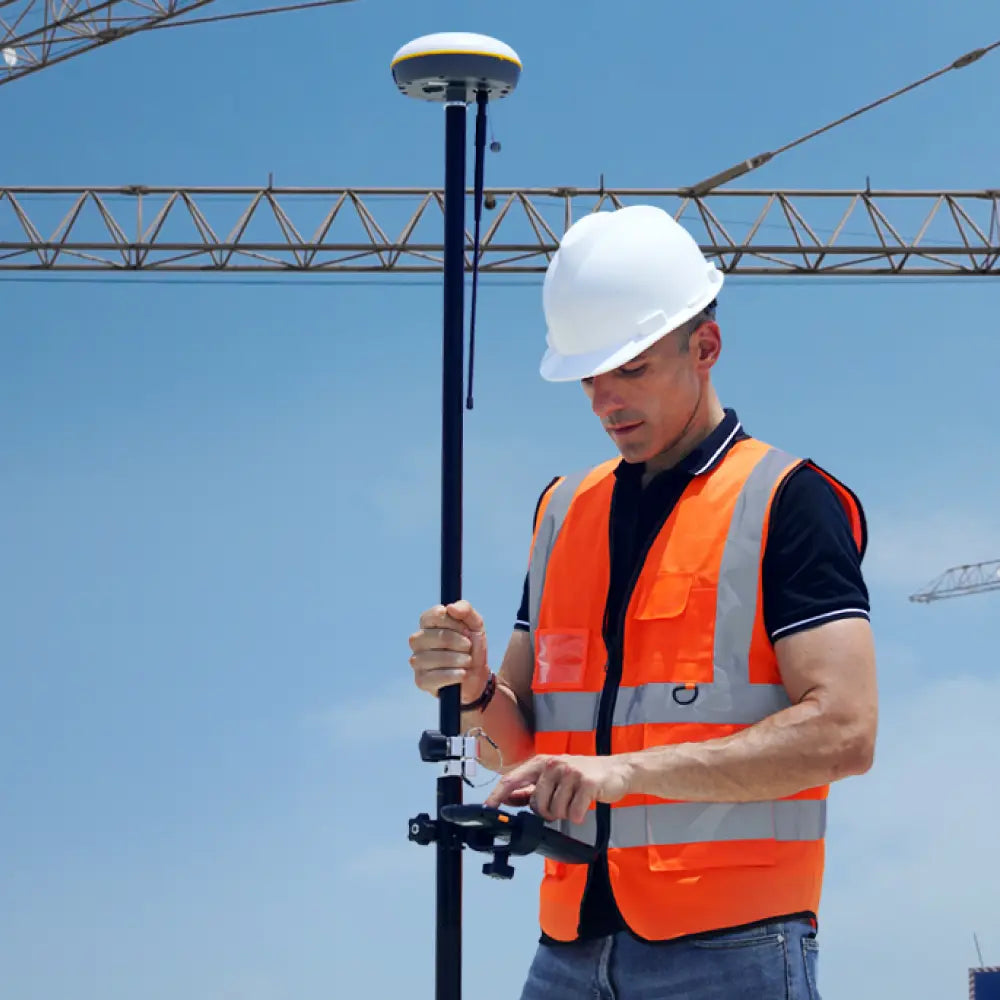

FJD TRION V1t GNSS Receiver Construction Site

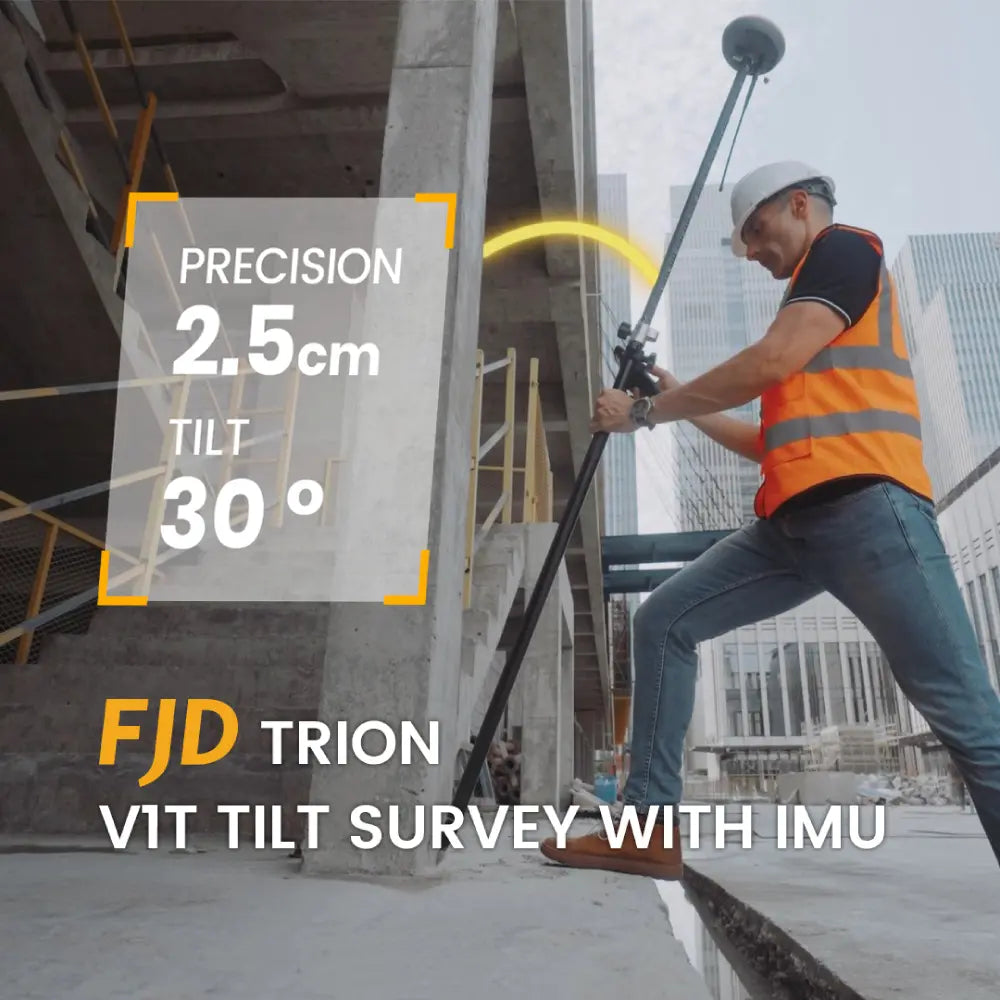

FJD TRION V1t GNSS Receiver Tilt Precision Demo

FJDynamics

FJD TRION V1t GNSS Receiver

Name: FJD TRION V1t GNSS Receiver
Brand: FJDynamics
SKU: MET-GPS43
Price: 1000.00 USD
Availability: InStock

$1,000.00

The FJD TRION V1t GNSS Receiver is a high-precision RTK receiver designed for demanding surveying applications. Featuring a built-in IMU, advanced satellite tracking with 1,408 channels, and Galileo HAS-PPP support, it delivers reliable positioning in challenging environments. With long-lasting battery life and rugged durability, the FJD Trion V1t GNSS Receiver empowers professionals in construction, agriculture, and engineering monitoring.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The FJD Trion V1t is a compact, high-performance GNSS receiver with IMU tilt compensation, built for professionals who need reliable RTK positioning and long-lasting performance in any environment. With 1408 channels supporting full-constellation satellite tracking (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS), the V1t delivers centimeter-level accuracy even in complex or obstructed environments.

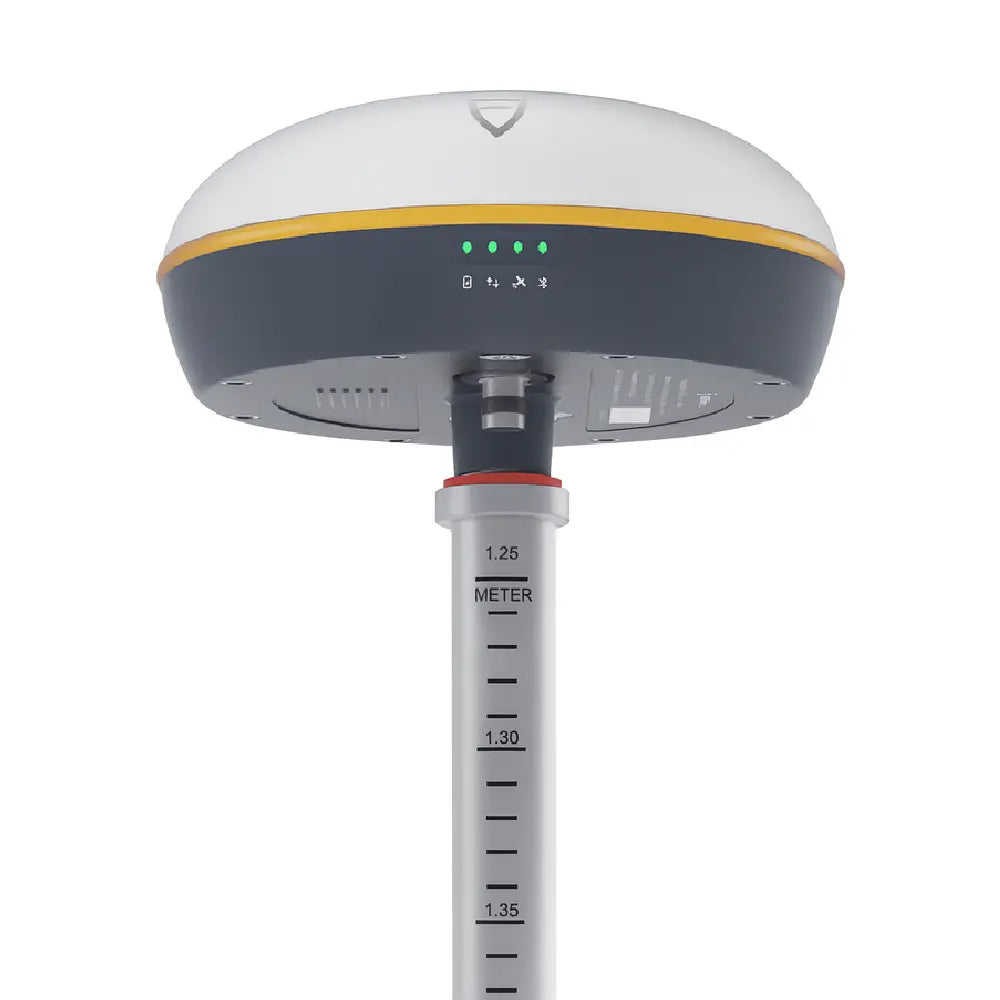

The integrated inertial measurement unit (IMU) supports tilt angles up to 60° with 2.5 cm horizontal accuracy, allowing fast, calibration-free measurements without leveling the pole. Ideal for challenging fieldwork and fast-paced stakeout jobs.

With low power consumption, a 6500 mAh battery (offering up to 15 hours of rover use), and support for both internal and external UHF radios, the V1t is optimized for both flexibility and performance. It includes advanced features like HAS-PPP positioning via Galileo E6, ensuring higher accuracy and stability even in remote locations without full RTK coverage.

From road construction and engineering monitoring to precision agriculture and resource exploration, the FJD V1t GNSS receiver with IMU is a rugged, efficient, and intelligent solution for modern geospatial professionals.

Channels: 1408 GNSS channels, full constellation tracking
Tilt Compensation: Built-in IMU, 2.5 cm accuracy at 30°, max 60° tilt
RTK Accuracy: Horizontal ±(8 mm + 1 ppm), Vertical ±(15 mm + 1 ppm)
PPP Accuracy: Horizontal ±20 cm, Vertical ±40 cm
Startup Time: <20 s cold start, <10 s hot start, <5 s RTK init
Battery Life: 6,500 mAh; 10 h (base) / 15 h (rover)
Weight & Size: 1070 g; 162 × 86 mm
Durability: IP67 rated, operates from -30 °C to +60°C
Data Output: RTCM 3.X, NMEA-0183; update rate up to 20 Hz
Connectivity: Bluetooth, Wi-Fi, USB Type-C, UHF radio (410–470 MHz / 902–928 MHz)

1408 GNSS Channels – Full constellation tracking: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS
Built-in IMU Tilt Compensation – 2.5 cm accuracy at 30° tilt, up to 60°
HAS-PPP Support – Stable Galileo-based precise point positioning
Long Battery Life – 10 hours (base) and 15 hours(rover)
Fast Initialization – RTK fix in less than 5 seconds (baseline <10 km)
Rugged IP67 Protection – Dustproof, waterproof, and field-ready
Universal Radio Protocols – Compatible with TRIMTALK, TT450S, TRANSEOT, Satel
USB PD Fast Charging – 30W aviation plug and Type-C support

In the Box:

FJD TRION V1t GNSS Receiver
UHF Antenna
Type-C Cable
7-pin Lemo Cable
Power Adapter
Carrying Case
User Manual

Q1: Does the V1t support multi-constellation GNSS?

A1: Yes, it supports GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS.

Q2: How accurate is the tilt compensation?

A2: It achieves 2.5 cm accuracy at 30° tilt and supports up to 60°.

Q3: Can the receiver operate in extreme environments?

A3: Yes, it operates between -30°C and +60°C, and stores safely between -40°C and +70°C.

Q4: How long does the battery last in the field?

A4: The base station runs about 10 hours, while the rover lasts up to 15 hours.

Q5: Is the receiver resistant to dust and water?

A5: Yes, it is IP67 rated, ensuring durability in harsh field conditions.
