South ALTAS levelling set complete auto level kit with tripod and staff

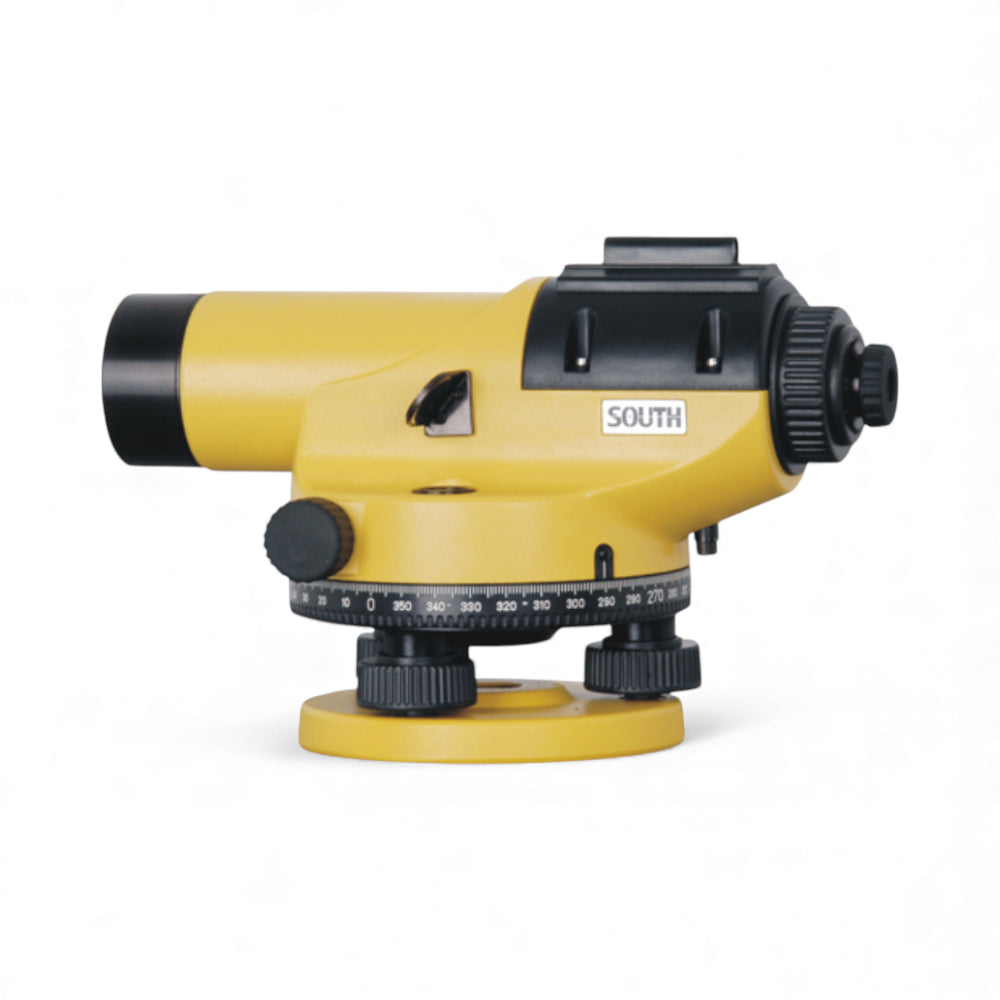

South ALTAS high-precision auto level instrument for surveying

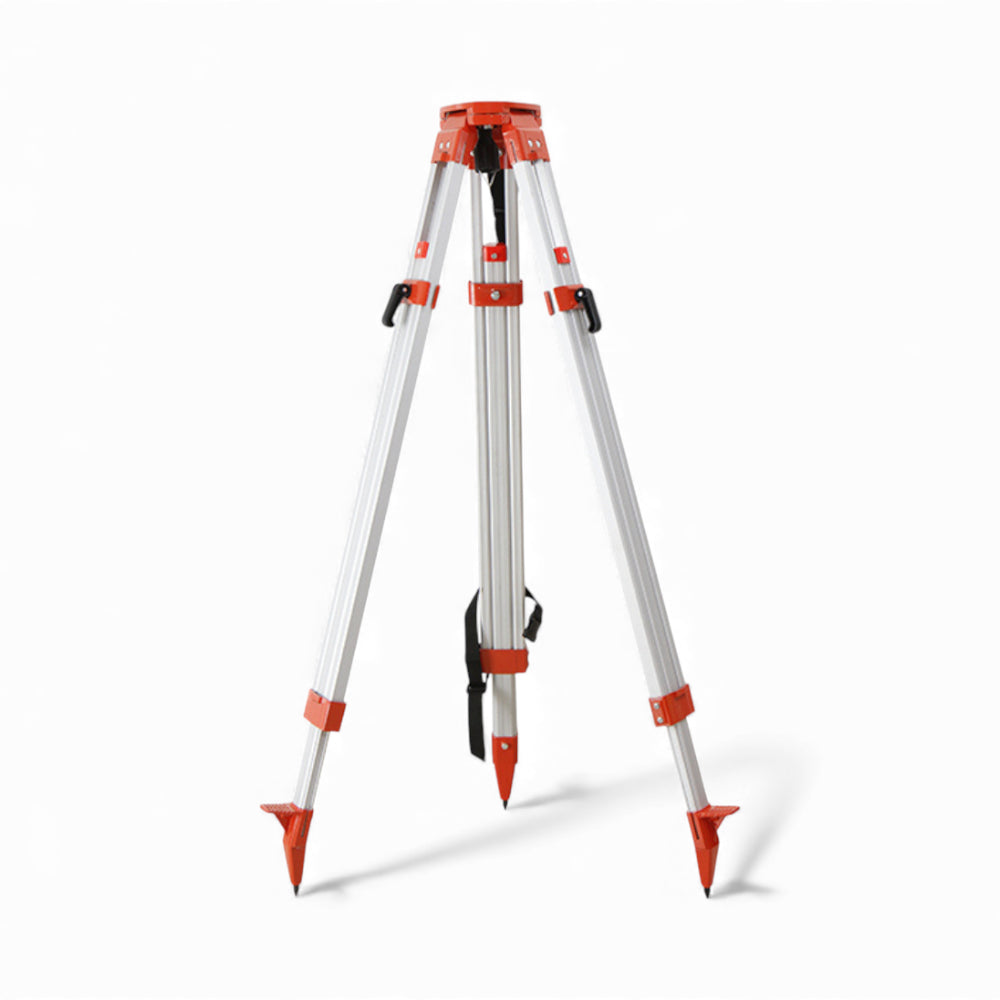

South ALTAS robust aluminium tripod for leveling applications

South ALTAS graduated leveling staff included in the complete kit

South Surveying

South ALTAS Levelling Set – Complete Auto Level Kit with Tripod and Staff

Name: South ALTAS Levelling Set – Complete Auto Level Kit with Tripod and Staff
Brand: South Surveying
SKU: OPTLEV01
Price: 1000.00 USD
Availability: InStock

$1,000.00

Complete leveling set including Auto Level, tripod, and staff — ideal for precise and durable fieldwork. Includes all accessories for immediate use in construction, surveying, and engineering projects.

Product variants

Quantity

Secure Payments

Quick worldwide shipping with trusted carriers
Multiple safe payment options for peace of mind
Professional advice to choose the right equipment
24/7 premium customer assistance

Product Information

The ALTAS Levelling Set is a fully integrated, professional-grade leveling package designed for precise measurements in tough job site environments. This all-in-one set includes an auto level (20X, 24X, 28X, or 32X), lightweight yet durable tripod with flat head, and a 5-meter aluminum staff with leveling bubble. With magnetic damping compensator technology, weather-resistant components, and essential accessories like a plumb, adjusting pin, and carrying bag, the ALTAS set is ready for action on any construction or surveying site.

Ideal for engineers, contractors, and land surveyors who require accuracy, convenience, and rugged performance in a complete leveling package.

Specifications

Auto Level:

Magnification: 20X / 24X / 28X / 32X
Aperture: 34mm to 38mm (depending on model)
Accuracy: 2.5mm to 1.0mm
Field of View: 1°20′
Minimum Focus: 0.6m
Image: Erect
Compensator Type: Magnetic damping
Compensator Range: ±15′
Compensator Accuracy: ±0.6″
Circle Graduation: 360° / 400gon
Protection: IP54
Operating Temperature: -20℃ to +50℃

Tripod:

Extended Height: 1600mm
Closed Height: 970mm
Lock Type: Twist lock
Head Type: Flat head (120mm/45mm)
Legs: Round

Aluminum Staff:

Scale: Dual Sides (E-type & millimeter)
Extended Height: 5m
Sections: 5
Deviation per meter: ±0.5mm
Total Deviation: ±3mm

Package:

Dimensions: 1265 × 240 × 210mm
Weight: 8.6 kg

Key Features

All-in-one leveling package
Optional magnification: 20X, 24X, 28X, 32X
Auto level with magnetic damping compensator
Lightweight aluminum tripod with flat head
5-meter, 5-section aluminum staff with ABS buckle
Water and dust resistant (IP54 rating)
Erect image and large field of view (1°20′)
Rugged carrying case and included leveling bubble
Works in temperatures from -20℃ to +50℃
Includes all accessories: wrench, adjusting pin, plumb, lens cap, staff, tripod

Download Center

What’s in the Box

Auto Level (choice of 20X / 24X / 28X / 32X)
ATS-5T Aluminum Tripod
AGR5 Aluminum Staff (5m, 5 sections)
Levelling bubble
Hex wrench & adjusting pin
Lens cap & plumb
Carrying case
Carrying bag
User manual

FAQ

Q: What is included in the ALTAS Levelling Set?

A: The set includes everything needed for leveling: auto level, tripod, 5m staff, leveling bubble, tools, and carry case.

Q: What is the working temperature range?

A: The system is designed for -20℃ to +50℃, suitable for most outdoor environments.

Q: Is the auto level protected against water and dust?

A: Yes, the device is IP54-rated for dust and water resistance.

Q: What type of leveling staff is included?

A: A 5-meter aluminum staff with ABS buckle and dual-side scales (E-type and mm).

Q: How durable is the tripod?

A: The ATS-5T tripod features a twist lock, flat head, and round aluminum legs, offering durability and light weight.
