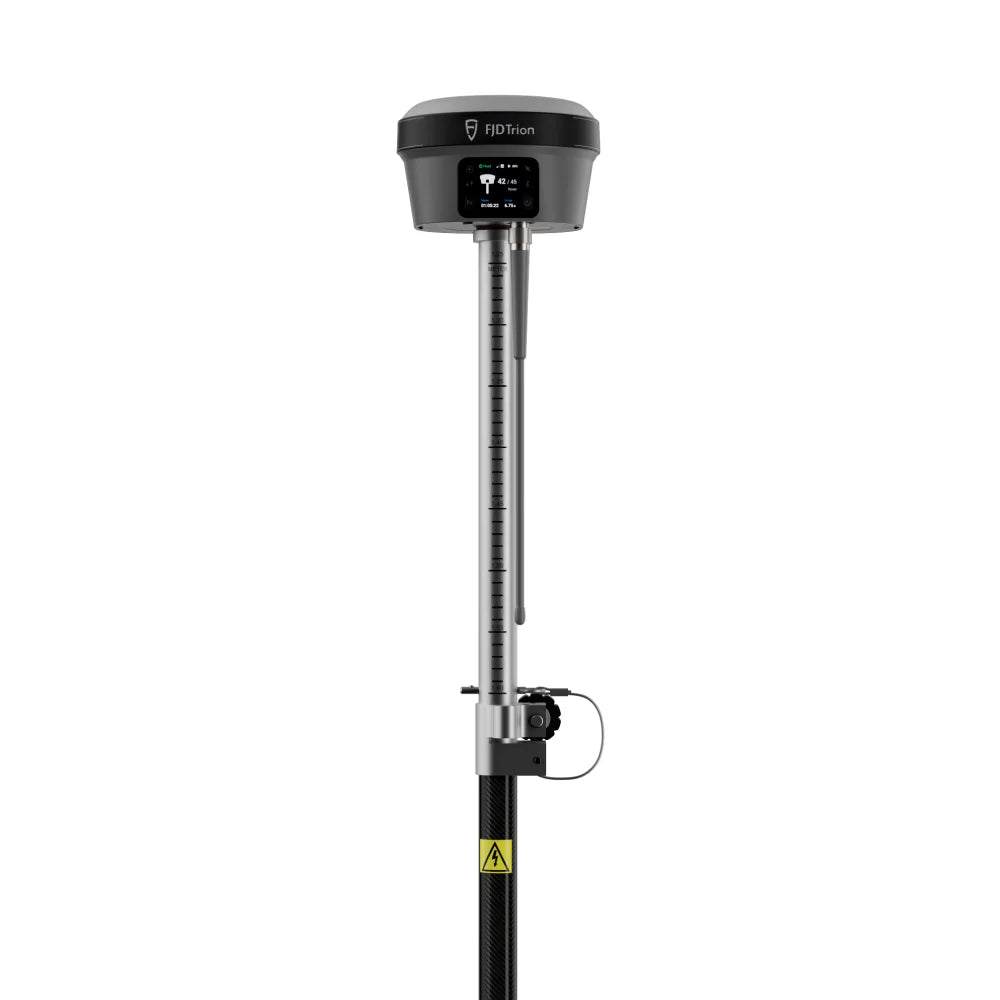

FJD TRION V10i GNSS Rover Set Rover Front

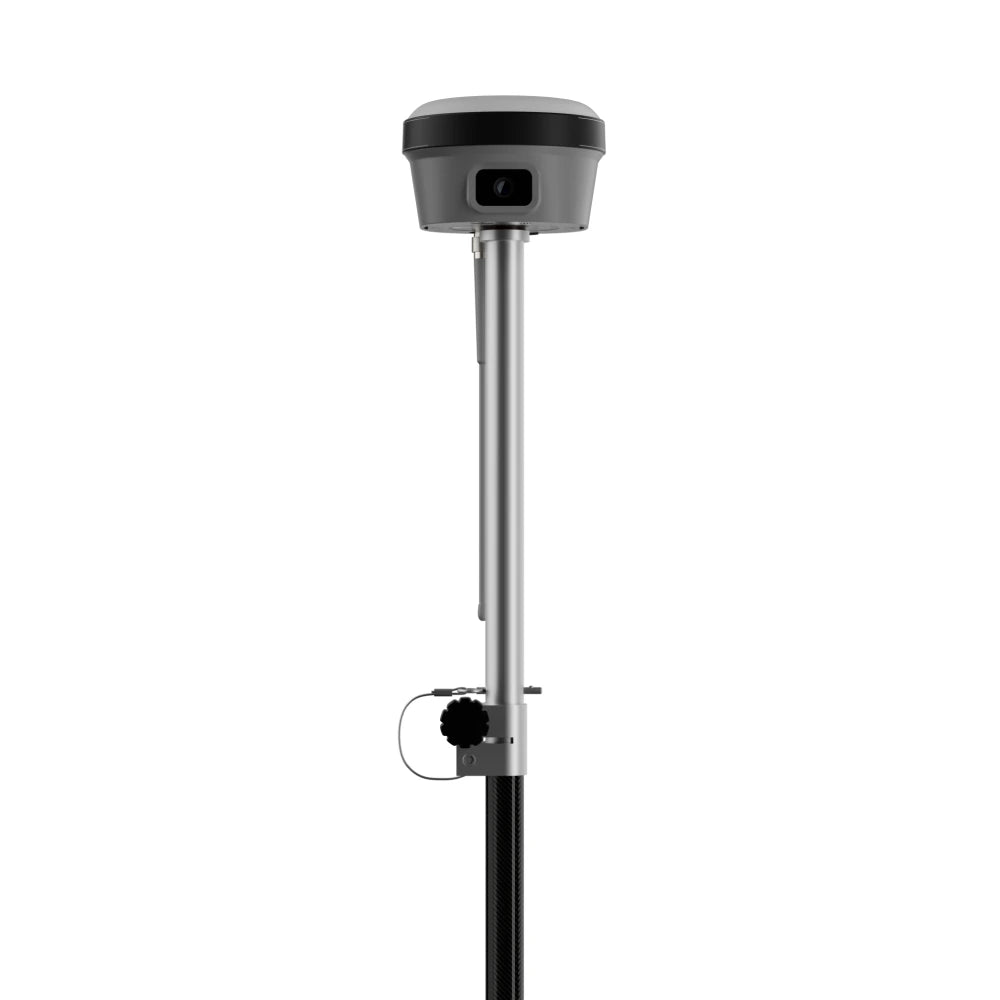

FJD TRION V10i GNSS Rover Set Rover Back

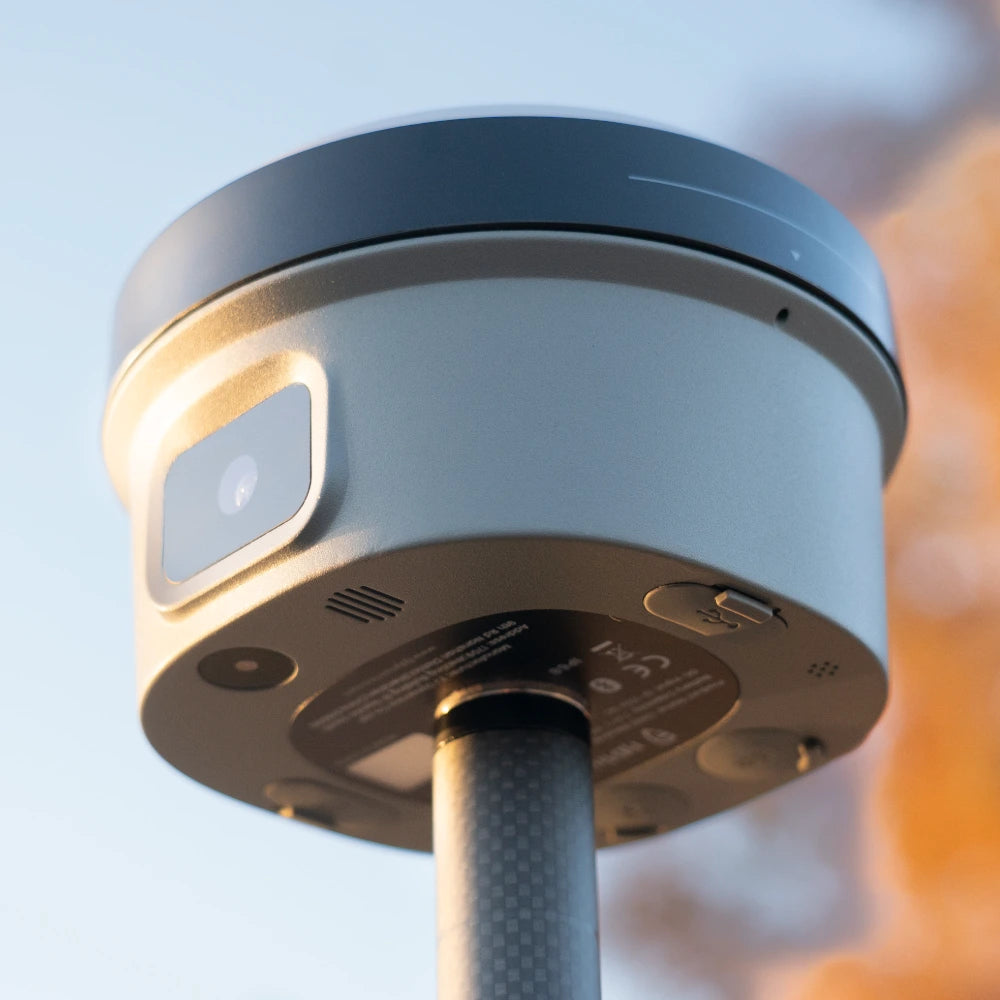

FJD TRION V10i GNSS Rover Set Receiver Left

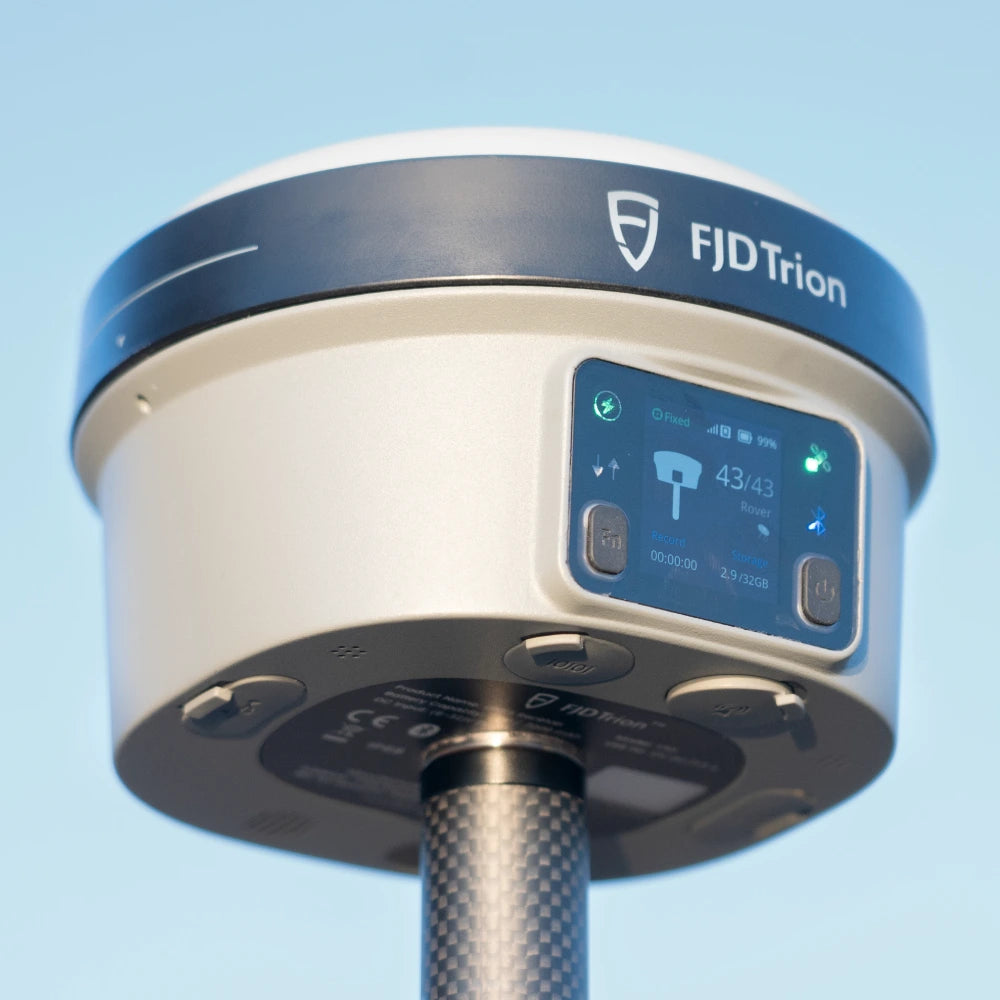

FJD TRION V10i GNSS Rover Set Receiver Right

FJDynamics

FJD TRION V10i - GNSS Rover Set

Name: FJD TRION V10i - GNSS Rover Set
Brand: FJDynamics
SKU: MET-GPSR-33
Availability: InStock

$0.00

The FJD TRION V10i GNSS Rover Set combines millimeter-level RTK accuracy with advanced IMU tilt compensation up to 60°, ensuring reliable performance even on uneven terrain. Equipped with dual cameras, AR stakeout, and visual measurement features, it enhances productivity in cadastral, topographic, and infrastructure surveys. Rugged, lightweight, and equipped with 4G, Wi-Fi, Bluetooth, NFC, and UHF radio, the V10i is built for field efficiency.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The FJD TRION V10i GNSS Rover Set is designed for surveyors who require precision, durability, and advanced visual features. With 1408 GNSS channels, millimeter-level RTK accuracy, and calibration-free IMU tilt compensation up to 60°, the V10i ensures reliable results across cadastral, topographic, and utility projects. Its lightweight alloy body and IP68 protection allow consistent performance even in harsh conditions.

Featuring AR stakeout, dual cameras, and visual measurement capabilities with 3–5 cm accuracy, the V10i streamlines surveying tasks. The OLED display,multi-connectivity options, and 15-hour rover batteryprovide efficient workflows, while the integrated UHF radio and 4G modem keep operations connected in the field.

Positioning accuracy: Horizontal 8 mm + 1 ppm RMS, Vertical 15 mm + 1 ppm RMS
IMU-based tilt compensation: Up to 60°, calibration-free
GNSS channels: 1408 channels, GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Cameras: Forward 2 MP, Downward 5 MP, 83° field of view
Processor: 4-core with multi-engine algorithm
Connectivity: Wi-Fi, Bluetooth 4.2, NFC, 4G modem, UHF radio
Display: 1.41" OLED screen, readable in strong sunlight
Ruggedness: 2 m drop-proof, IP68 dustproof and waterproof
Battery: 7000 mAh, 15 h (rover), 10 h (base), 25 h (static)

1408 GNSS Channels – Reliable tracking of GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
60° IMU Tilt Compensation – Precise measurements without pole leveling
Visual Measurement (3–5 cm accuracy) – Faster data collection without extra equipment
Dual Cameras (2 MP forward, 5 MP downward) – Clear imaging for visual surveys
AR Stakeout with 4-core Processor – Smooth, intuitive visual guidance in the field
1.41" OLED Display – Sunlight-readable status monitoring
Rugged IP68 & 2 m Drop-Proof – Built for demanding outdoor projects
Long Battery Life (up to 25 h static) – Extended field operation without interruptions

FJD_Trion_V10i_GNSS_Rover_Set_Datasheet_EN.pdf

FJD TRION V10i GNSS Receiver
Survey Controller/Handheld Device
Survey Pole
UHF Antenna
Charging Adapter and Cables
Protective Carrying Case
User Manual

Q1: How accurate is the visual measurement function?

A1: The V10i’s visual measurement achieves 3–5 cm accuracy using only the receiver and camera data.

Q2: Can I use the V10i without a controller?

A2: Yes, it can be set as a base station or static mode using physical buttons and OLED display.

Q3: How durable is the device for field conditions?

A3: It is IP68 rated, drop-proof up to 2 m, and operatesfrom -35°C to 65°C.

Q4: Does the V10i support multi-constellation GNSS tracking?

A4: Yes, it supports GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS on 1408 channels.

Q5: What connectivity options are available?

A5: The V10i includes Wi-Fi, Bluetooth, NFC, 4G modem, UHF radio, and SIM card support.
