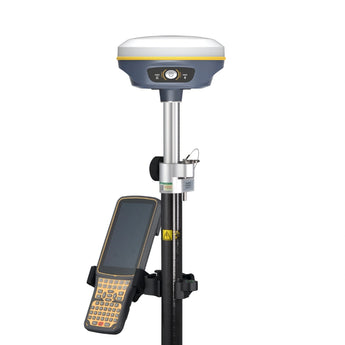

South Insight V2 GNSS Rover Set

1598-channel GNSS engine with full constellation tracking

IMU tilt compensation (up to 60° tilt)

AR-assisted stakeout for visual navigation

Farlink UHF radio with up to 8km range

Compact, lightweight design with rugged IP68 protection

WiFi, Bluetooth 4.2, and NFC connectivity

4GB internal storage with USB and cloud access

6800mAh battery with up to 12-hour operation

Smart web-based interface for easy configuration

GNSS Channels: 1598

Supported Systems: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, IRNSS

Positioning Accuracy:

• RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
• Static: 2.5 mm + 0.1 ppm (horizontal), 3 mm + 0.4 ppm (vertical)
• PPK: 3 mm + 1 ppm (horizontal), 5 mm + 1 ppm (vertical)
• IMU Tilt Correction: < 8 mm + 0.7 mm/° tilt, up to 60°

Initialization Time: < 10 seconds

IMU Technology: Calibration-free, magnetic interference-resistant

Battery: 6800mAh Li-ion, up to 12 hours (rover mode)

Dimensions: 131mm × 80mm

Weight: 800g

Material: Magnesium aluminum alloy shell

Environmental Protection: IP68-rated, MIL-STD-810G drop resistance

Communication & Connectivity:

• Farlink UHF radio (up to 8km range)
• WiFi Hotspot, Bluetooth 4.2
• NFC for fast pairing

Data Storage:

• 4GB SSD internal storage, expandable up to 32GB
• USB plug-and-play data transfer
• Supports RTCM, Rinex, and NMEA formats

Special Features:

• AR-assisted stakeout with 2MP camera
• Intelligent power management for extended endurance
• Electronic bubble for real-time leveling

South_Insight_V2_Datasheet

Q: What makes the South Insight V2 GNSS Rover Set different from other RTK receivers?

A: The Insight V2 is a palm-sized, lightweight GNSS RTK receiver featuring IMU tilt compensation, AR-assisted stakeout, and intelligent power management for extended endurance.

Q: How accurate is the Insight V2 in RTK mode?

A: The RTK accuracy is 8 mm + 1 ppm horizontally and 15 mm + 1 ppm vertically, ensuring centimeter-level precision for surveying applications.

Q: How does the AR-assisted stakeout feature work?

A: The built-in 2MP camera provides real-time visual guidance, allowing users to follow on-screen cues for precise stakeout positioning.

Q: What is the battery life of the Insight V2?

A: The 6800mAh battery provides up to 12 hours of operation in rover mode, making it suitable for extended fieldwork.

Q: Is the Insight V2 suitable for harsh environments?

A: Yes, it is IP68-rated, waterproof up to 2m, dustproof, and MIL-STD-810G certified for extreme durability.

Q: What connectivity options does the Insight V2 offer?

A: The device includes Farlink UHF radio, WiFi Hotspot, Bluetooth 4.2, and NFC pairing for seamless data transmission.

Q: What accessories come with the South Insight V2 GNSS Rover Set?

A: The set includes:

• One GNSS rover receiver
• Field controller
• GNSS pole for precise measurements
