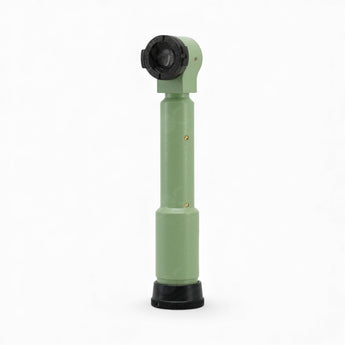

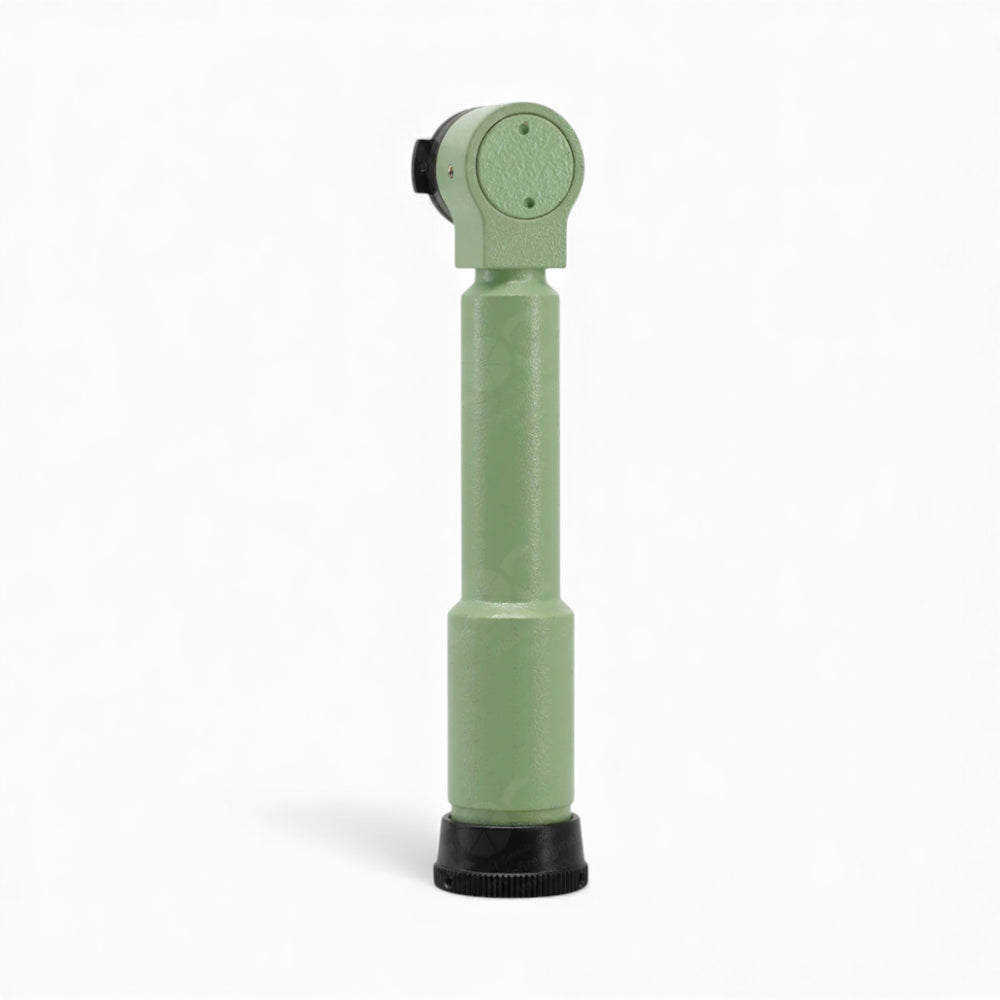

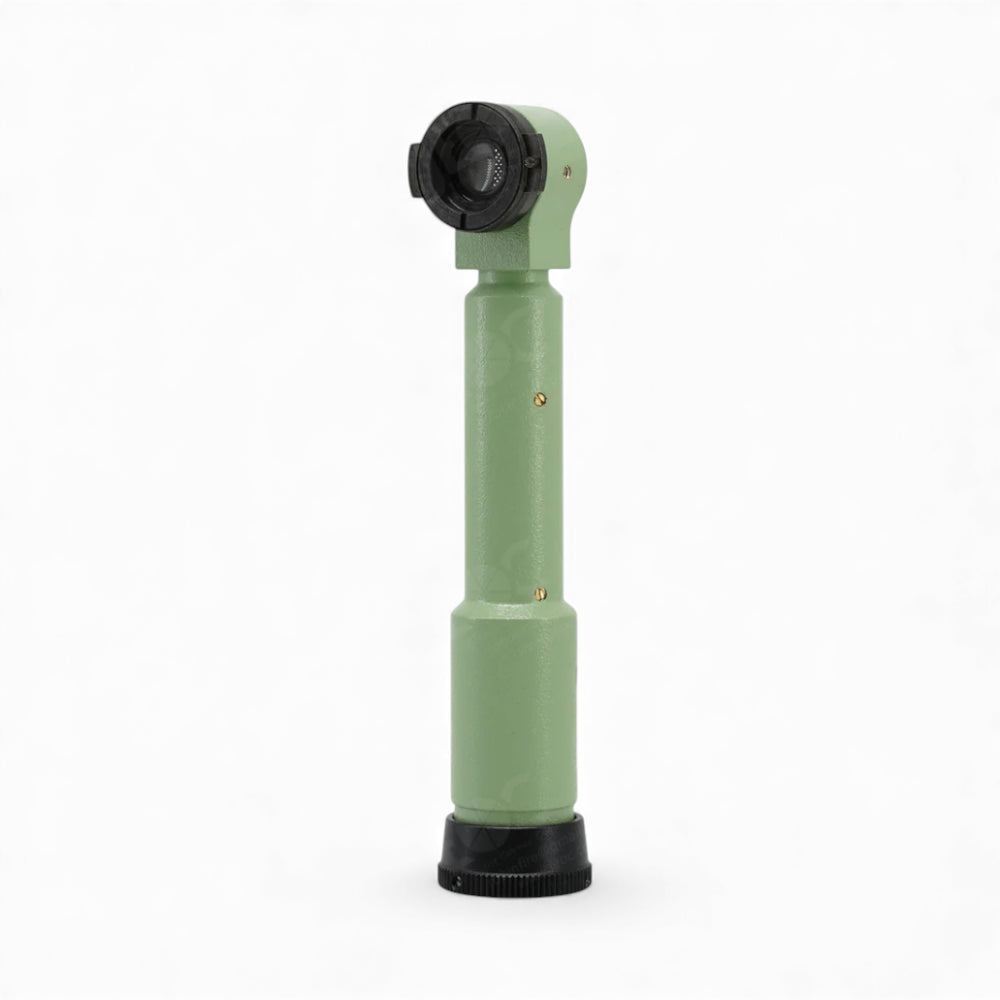

Diagonal Eyepiece for Swiss TS02 / GeoMax 20 & 30 Total Stations – Steep Sight Eyepiece

Name: Diagonal Eyepiece for Swiss TS02 / GeoMax 20 & 30 Total Stations – Steep Sight Eyepiece
Brand: Metricop
SKU: SCW64
Price: 390.00 USD
Availability: InStock

$390.00

Precision diagonal eyepiece designed for Swiss-style TS02 and GeoMax 20/30 total stations. Enables steep sight measurements, overhead observations, and improved visibility in tight or obstructed environments.

Product variants

Quantity

Secure Payments

Quick worldwide shipping with trusted carriers
Multiple safe payment options for peace of mind
Professional advice to choose the right equipment
24/7 premium customer assistance

Product Information

This diagonal eyepiece is specifically engineered for Swiss-format total stations, including the TS02 and GeoMax 20/30 series. It allows operators to comfortably perform steep vertical observations and measurements in areas where the standard straight eyepiece cannot provide a clear viewing angle.

Ideal for building construction, monitoring, tunnel works, and overhead target measurement, this eyepiece improves efficiency, reduces operator strain, and ensures precise sighting even in challenging locations. Its optical clarity and rugged housing provide reliable performance in demanding field conditions.

Specifications

Compatibility: Swiss TS02, GeoMax 20 series, GeoMax 30 series
Optical Type: Diagonal eyepiece, angled view
Usage: Steep sight, overhead targets, vertical observations
Housing Material: High-strength coated metal body
Attachment Method: Direct fit (Swiss standard interface)
Field Applications: Construction, monitoring, tunneling, structural control

Key Features

Compatible with Swiss TS02 and GeoMax 20/30 total stations
Enables steep sight and vertical angle observations
Allows comfortable viewing during overhead measurements
Precision optical design for clear, distortion-free imaging
Durable construction for intensive field use
Quick attachment and removal
Ideal for confined spaces, construction sites, and monitoring tasks

Download Center

What’s in the Box

Diagonal Eyepiece for Swiss TS02 / GeoMax 20/30
Protective cap
Packaging box

FAQ

Does this eyepiece fit Leica total stations?

No — it is specifically for Swiss-format TS02 and GeoMax 20/30 devices. You need a Leica GFZ3 replacement for Leica instruments.

Is this eyepiece suitable for steep vertical shots?

Yes, it is designed exactly for steep sight and overhead observations.

Can I use it for monitoring installations?

Absolutely — it helps sight targets placed high or in narrow areas.

Does it require calibration?

No additional calibration is needed. Attach and use.
