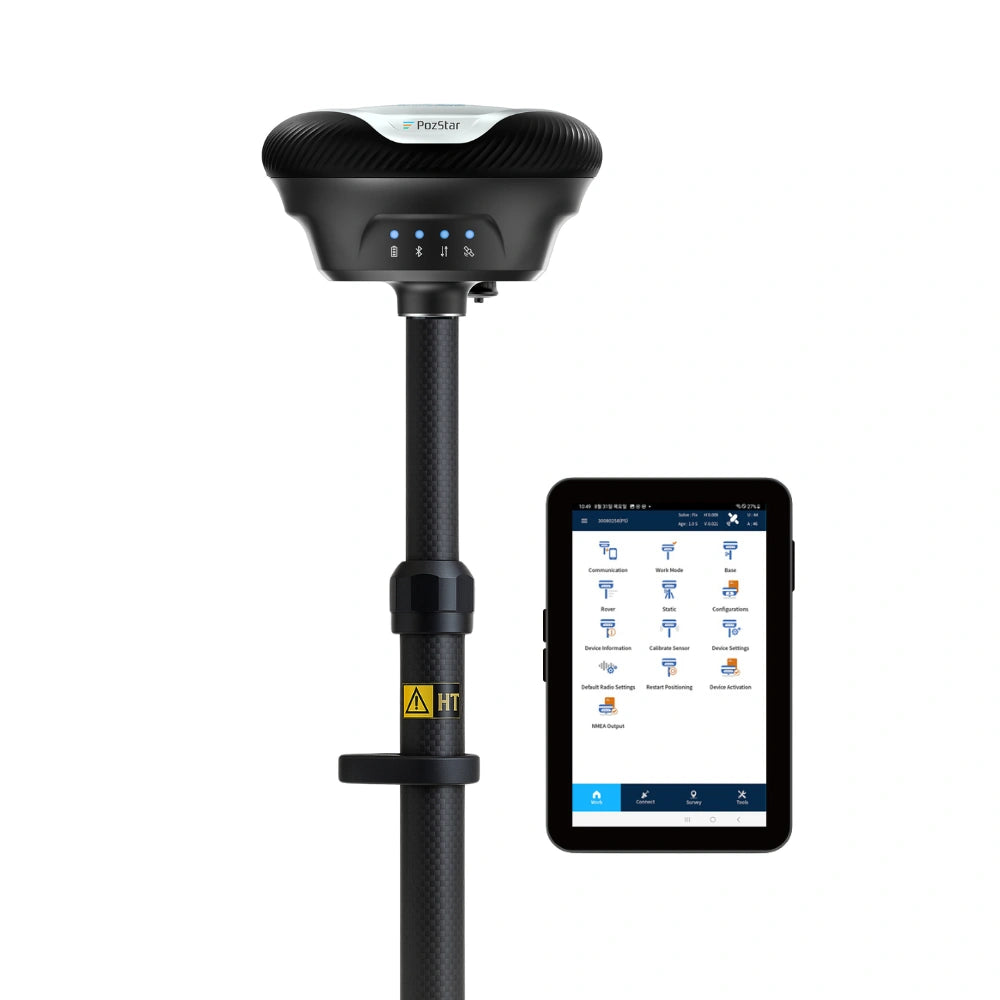

PozStar P5 Rover Set - High-Precision RTK with IMU Tilt

Name: PozStar P5 Rover Set - High-Precision RTK with IMU Tilt
Brand: PozStar
SKU: MET-GPSR-11
Price: 3900.00 USD
Availability: InStock

$3,900.00

4.83

PozStar S5 GNSS RTK Rover offers real-time centimeter-level accuracy with 60° IMU tilt compensation, 4G LTE, UHF, Bluetooth, and dual hot-swappable batteries for all-day surveying.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The PozStar P5 GNSS Rover Set delivers high-precision RTK positioning with a 1408-channel GNSS receiver supporting multi-constellation tracking. Designed for professional surveyors and geospatial experts, it ensures reliable accuracy and performance.

The IMU tilt sensor enables tilted measurements up to 60°, allowing for fast and flexible data collection on uneven surfaces without the need to level the pole. Its compact and lightweight design (135mm x 88.2mm, 825g) enhances portability and ease of use, while the IP67-rated durable construction provides dustproof and waterproof protection.

The PozPad Android-based field software allows for real-time mapping, stakeout, and data collection, while Bluetooth connectivity ensures wireless control and data transfer. Powered by a SAMSUNG 6,700mAh lithium-ion battery, the PozStar P5 offers long-term operation for uninterrupted fieldwork.

Channels: 1408-channel GNSS module supporting all GNSS satellites and frequencies

IMU Technology: Tilt measurement up to 60°

Positioning Accuracy:

RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
Static: 2.5 mm + 0.5 ppm (horizontal), 5 mm + 0.5 ppm (vertical)

Data Output: NMEA format via 5-pin serial port

Connectivity:

Bluetooth remote control
USB Type-C port for charging and data transfer
Radio antenna connector (410 to 470 MHz)

Battery: SAMSUNG 6,700mAh Li-ion battery for long-term use

Dimensions: 135mm x 88.2mm

Weight: 825g

Durability:

IP67-rated dustproof and waterproof
2m drop resistance

Software Compatibility:

PozPad Android-based field software
Optional SurPad APP for enhanced CAD and mapping functions

1408-channel GNSS receiver for high-precision RTK positioning

IMU tilt sensor for accurate measurements up to 60° inclination

Multi-constellation tracking for reliable performance in challenging environments

Compact and lightweight design for enhanced portability

High-quality SAMSUNG lithium-ion battery for long-term operation

IP67-grade protection for dust and water resistance

Bluetooth remote control and USB Type-C connectivity for easy data transfer

PozPad Android-based software for real-time data collection, mapping, and stakeout

Optional SurPad APP for advanced CAD engine functions and altitude control

⭐️⭐️⭐️⭐️ O. Jamaz – Verified Buyer – March 20, 2025

"The performance of this GNSS set is top-notch, but the rover is slightly heavier than expected. However, considering the signal stability and accuracy, it’s worth it."

⭐️⭐️⭐️⭐️⭐️ U. Ugur – Verified Buyer – November 28, 2023

"I highly recommend it. One of the things I love about this unit is that it’s quick to set up, and I don’t have to worry about battery life during long shifts."

PozStar P5 GNSS Rover Set

PozStar P5 GNSS Receiver (Rover)
SAMSUNG 6,700mAh Li-ion Battery
USB Type-C Charging Cable
Radio Antenna
GNSS Pole
Controller Holder
Protective Carrying Case
Quick Start Guide

Q: What is included in the PozStar P5 Rover Set?

A: The set includes a PozStar P5 GNSS receiver, along with a GNSS pole, controller holder, battery, antenna, and accessories needed for mobile RTK surveying.

Q: How accurate is the PozStar P5 Rover Set in RTK mode?

A: The RTK positioning accuracy is 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical), ensuring centimeter-level precision.

Q: Can the PozStar P5 be used on tilted surfaces?

A: Yes, the IMU tilt sensor supports measurements up to 60°, allowing for fast and flexible data collection on uneven terrain.

Q: What is the battery life of the PozStar P5?

A: The 6,700mAh SAMSUNG lithium-ion battery provides long-term operation, ideal for extended fieldwork.

Q: Is the PozStar P5 suitable for harsh environments?

A: Yes, it is IP67-rated for dust and water resistance and is drop-resistant up to 2 meters, ensuring durability in challenging conditions.

Q: What software is included with the PozStar P5?

A: It includes the PozPad Android-based field software and is compatible with the optional SurPad APP for advanced CAD and mapping functions.

Q: Does the set support Bluetooth connectivity?

A: Yes, the Bluetooth remote control allows for wireless operation and real-time data transfer, enhancing usability and productivity.
