PozStar

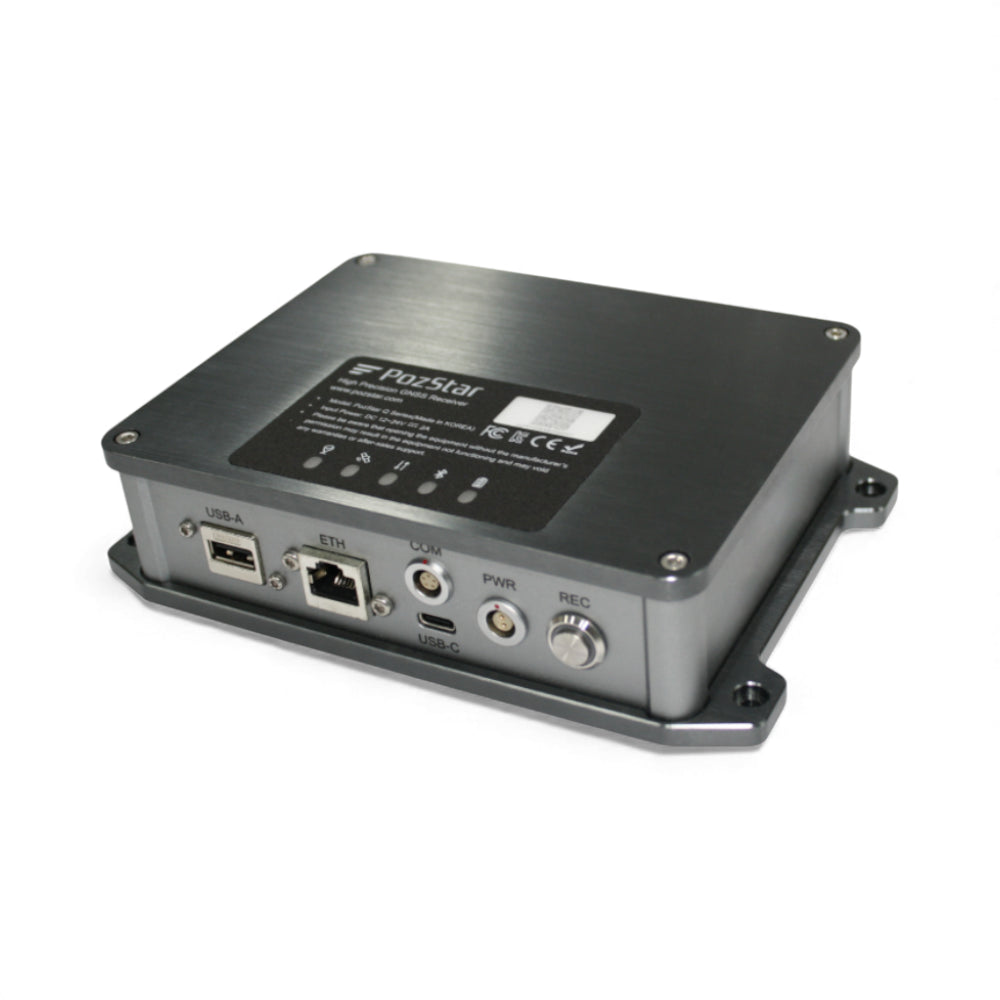

PozStar Q2-100 GNSS Receiver – Precision Positioning for Agricultural Machinery and Auto-Steering Systems
PozStar Q2-100 is a compact, high-performance GNSS Rover Set built for smart agriculture applications. With full-band satellite signal tracking, 1408 channels, and centimeter-level precision, this system enhances route planning, automation, and field efficiency. Built tough with an IP67-rated aluminum housing.
Price on request
SKU: MET-GPS48
Price depends on configuration, availability, delivery destination, and shipping method. Send us a request and we will prepare a tailored quote with delivery time.
Secure checkout available with major credit cards, Apple Pay, Google Pay and Shop Pay.
Product Highlights
- Full-band GNSS signal tracking (GPS, GLONASS, BDS, Galileo, QZSS, SBAS, NAVIC)
- 1408 channels with low-cost IMU integration
- Centimeter-level positioning accuracy
- Optimized for autonomous tractors and agricultural machinery
- IP67-rated aluminum alloy housing
Overview
The PozStar Q2-100 GNSS Rover Set is a cutting-edge positioning solution engineered for precision agricultural machinery and automation. Delivering centimeter-level RTK accuracy via 1408 channels, this unit supports all major satellite constellations (GPS, GLONASS, Galileo, BDS, QZSS, SBAS, NAVIC) and offers seamless data integration with modern auto-steering systems and smart farming platforms.
With a low-cost integrated IMU, detachable GNSS antenna, and intuitive Web UI, it empowers users with flexible setup, real-time monitoring, and remote configuration. Its IP67-rated robust aluminum housing ensures excellent durability even in harsh environments.
Specifications
| GNSS Channels | 1408 |
|---|---|
| Supported Satellite Constellations | GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, NAVIC |
| GNSS Antenna | Detachable external antenna (TNC connector) |
| Positioning Accuracy | Centimeter‑level RTK precision |
| IMU Sensor | Integrated low‑cost IMU for enhanced stability |
| Configuration & Monitoring | Full Web UI (Skyplot, IO settings, Radio settings, Logs, Recording controls) |
| Power Input | 12–24V DC (2‑pin aviation connector) |
| Environmental Protection | IP67 dustproof and waterproof |
| Housing Material | Aluminum alloy enclosure |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Recording Control | One‑button logging start/stop |
| Mounting Ports | External antenna port, UHF port, LTE/USB port |
| Trigger | Two‑second physical recording button |
Features
Full-band GNSS signal tracking (GPS, GLONASS, BDS, Galileo, QZSS, SBAS, NAVIC)
1408 channels with low-cost IMU integration
Centimeter-level positioning accuracy
Optimized for autonomous tractors and agricultural machinery
IP67-rated aluminum alloy housing
Web-based UI for real-time control and monitorin
Integrated UHF Radio Module (optional) for RTK correction data

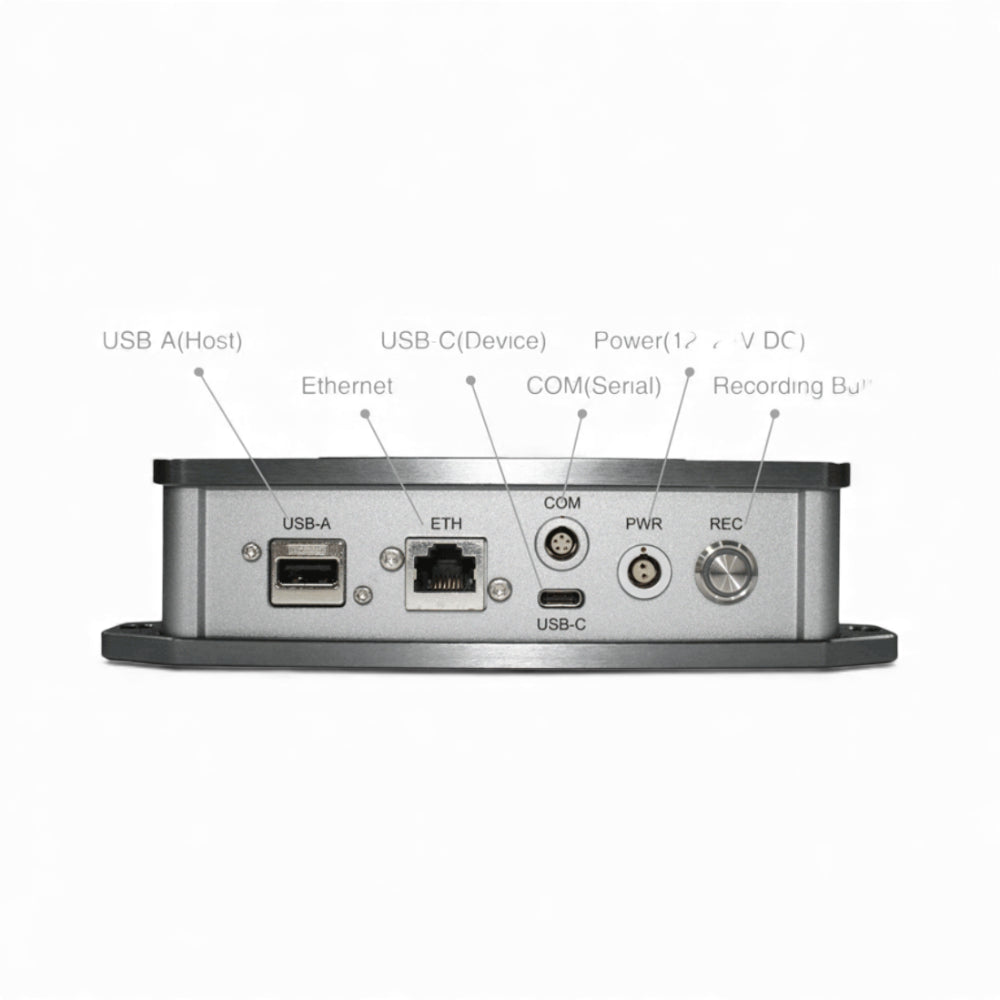

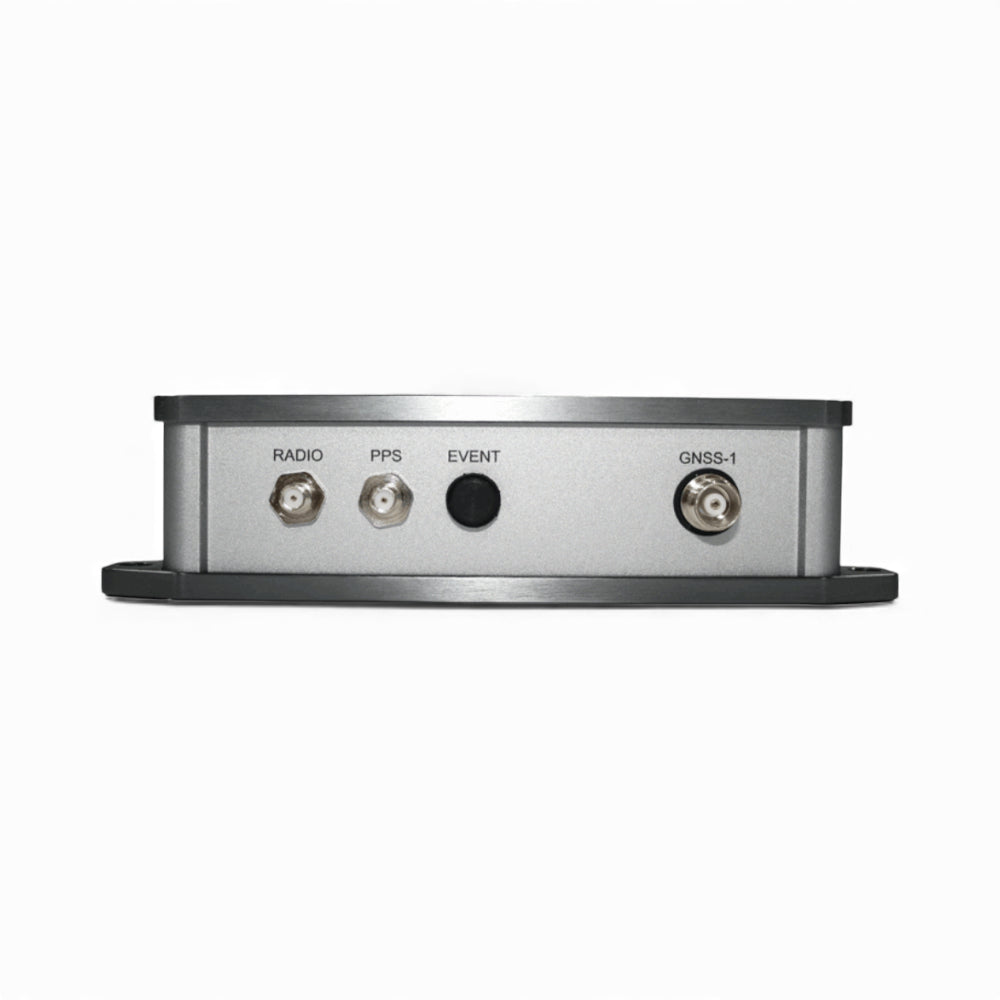

Flexible connectivity: USB-A, USB-C, Ethernet, 5-Pin Serial, PPS, Event Marker
Support for LTE USB dongles for mobile network access
Smart configuration: IO, Skyplot, Radio, and Recording Settings
In the Box
- PozStar Q2-100 GNSS Rover Receiver
- Detachable GNSS Antenna
- GNSS Antenna Cable (5M, TNC type)
- USB-C Cable for Data Transfer
- Power Supply Cable (12–24V DC, 2-pin)
- Communication Cable (5-Pin Serial)
- Radio Antenna (for UHF Module – optional)
- Web UI access with remote configuration features
- Rugged Transport Case
- Quick Start Manual
Frequently Asked Questions
Reviews
Compare similar equipment
A structured side-by-side of comparable options in this category to help you choose the right setup for your workflow.
| Specification | This product | |||
|---|---|---|---|---|
| Brand | PozStar | PozStar | PozStar | PozStar |
| Availability | In stock | In stock | In stock | In stock |
| Product Type | GNSS Receiver | GNSS Receiver | GNSS Receiver | GNSS Receiver |
| Condition | New | New | New | New |
| Recommended Use | High-precision GNSS RTK work | High-precision GNSS RTK work | Monitoring projects | High-precision GNSS RTK work |
| Channels | 1408 channels | — | 1408 channels | — |
| IMU / Tilt Compensation | — | — | — | Yes |
| IP Rating | IP67 | — | IP67 | — |
| Package Type | Rover Set | Rover Set | Rover Set | Rover Set |
| Delivery Time | 4–7 business days | 4–7 business days | 4–7 business days | 4–7 business days |
