PozStar S5 Rover Set - High-Precision RTK with IMU Tilt

Name: PozStar S5 Rover Set - High-Precision RTK with IMU Tilt
Brand: PozStar
SKU: MET-GPSR-12
Price: 4900.00 USD
Availability: InStock

$4,900.00

4.8

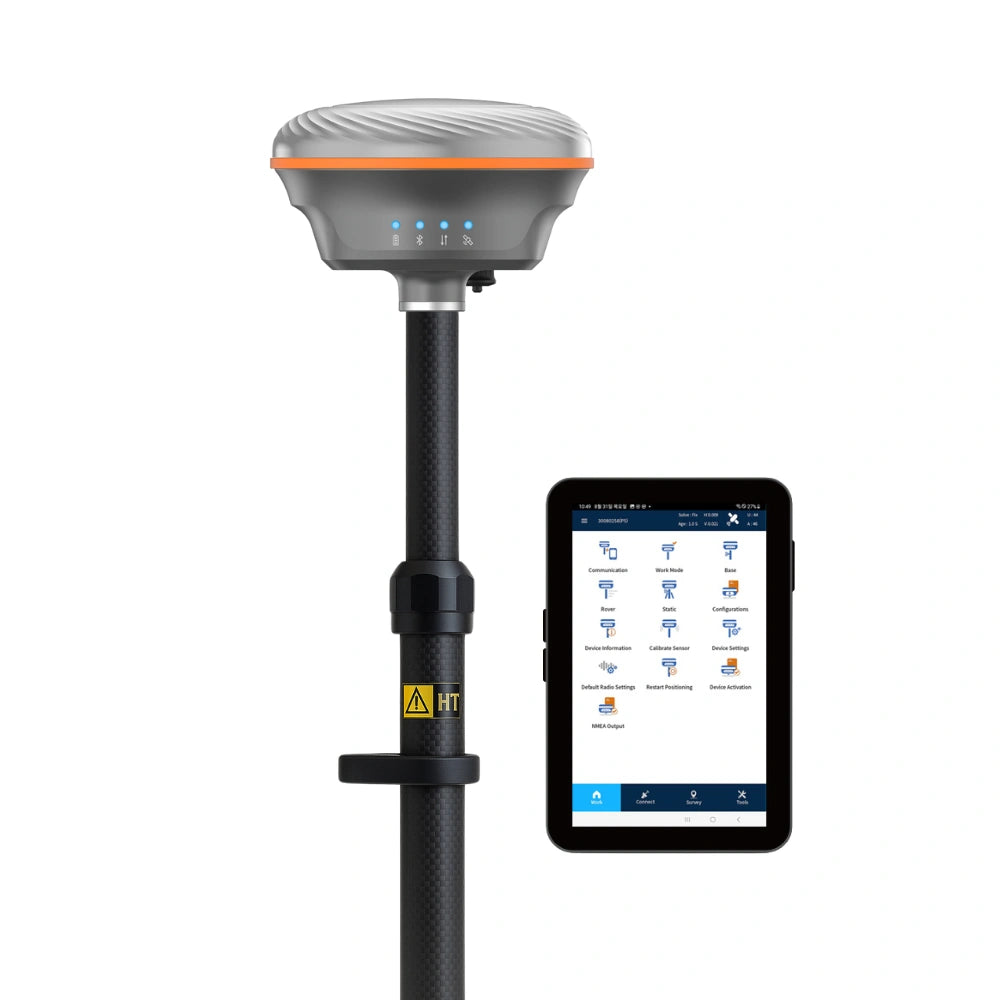

The PozStar S5 Rover Set is a very precise RTK GNSS system designed specifically for mobile surveying and geospatial applications. It features a 1408-channel GNSS receiver, a PozPad Android-based software for easy control, and IMU tilt compensation of up to 60°. It is capable of delivering accurate and reliable positioning in various kinds of environments, even the most challenging ones.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The PozStar S5 GNSS Rover Set provides unmatched precision and portability for surveyors and geospatial professionals. It includes a single PozStar S5 GNSS receiver with a 1408-channel GNSS module supporting multi-constellation tracking for high-accuracy RTK positioning.

The IMU tilt sensor enables tilted measurements up to 60°, allowing for fast and flexible data collection on uneven surfaces without the need to level the pole. The lightweight and compact design (135mm x 88.2mm, 825g) enhances portability and ease of use, while the IP67-rated durable construction ensures dustproof and waterproof protection.

The PozPad Android-based field software enhances usability with real-time mapping, stakeout, and data collection, while Bluetooth connectivity allows for wireless control and data transfer. Powered by a SAMSUNG 6,700mAh lithium-ion battery, the PozStar S5 guarantees long-term operation for uninterrupted fieldwork.

Channels: 1408-channel GNSS module supporting all GNSS satellites and frequencies

IMU Technology: Tilt measurement up to 60°

Positioning Accuracy:

RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
Static: 2.5 mm + 0.5 ppm (horizontal), 5 mm + 0.5 ppm (vertical)

Data Output: NMEA format via 5-pin serial port

Connectivity:

Bluetooth remote control
USB Type-C port for charging and data transfer
Radio antenna connector (410 to 470 MHz)

Battery: SAMSUNG 6,700mAh Li-ion battery for long-term use

Dimensions: 135mm x 88.2mm

Weight: 825g

Durability:

IP67-rated dustproof and waterproof
2m drop resistance

Software Compatibility:

PozPad Android-based field software

Optional SurPad APP for enhanced CAD and mapping functions

1408-channel GNSS receiver for high-precision RTK positioning

IMU tilt sensor for accurate measurements up to 60° inclination

Multi-constellation tracking for reliable performance in challenging environments

Compact and lightweight design for enhanced portability

High-quality SAMSUNG lithium-ion battery for long-term operation

IP67-grade protection for dust and water resistance

Bluetooth remote control and USB Type-C connectivity for easy data transfer

PozPad Android-based software for real-time data collection, mapping, and stakeout

Optional SurPad APP for advanced CAD engine functions and altitude control

PozStar S5_Datasheet

⭐️⭐️⭐️⭐️⭐️ H. Pierre – Verified Buyer – July 14, 2024

"I’ve tested it on long-distance projects, and it performs flawlessly. Excellent performance!"

PozStar S5 GNSS Rover Set

PozStar S5 GNSS Receiver (Rover)
SAMSUNG 6,700mAh Li-ion Battery
USB Type-C Charging Cable
Radio Antenna
GNSS Pole
Controller Holder
Protective Carrying Case
Quick Start Guide

Q: What is included in the PozStar S5 Rover Set?

A: The set includes a PozStar S5 GNSS receiver, along with a GNSS pole, controller holder, battery, antenna, and accessories needed for mobile RTK surveying.

Q: How accurate is the PozStar S5 Rover Set in RTK mode?

A: The RTK positioning accuracy is 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical), ensuring centimeter-level precision.

Q: Can the PozStar S5 be used on tilted surfaces?

A: Yes, the IMU tilt sensor supports measurements up to 60°, allowing for fast and flexible data collection on uneven terrain.

Q: What is the battery life of the PozStar S5?

A: The 6,700mAh SAMSUNG lithium-ion battery provides long-term operation, ideal for extended fieldwork.

Q: Is the PozStar S5 suitable for harsh environments?

A: Yes, it is IP67-rated for dust and water resistance and is drop-resistant up to 2 meters, ensuring durability in challenging conditions.

Q: What software is included with the PozStar S5?

A: It includes the PozPad Android-based field software and is compatible with the optional SurPad APP for advanced CAD and mapping functions.

Q: Does the set support Bluetooth connectivity?

A: Yes, the Bluetooth remote control allows for wireless operation and real-time data transfer, enhancing usability and productivity.
