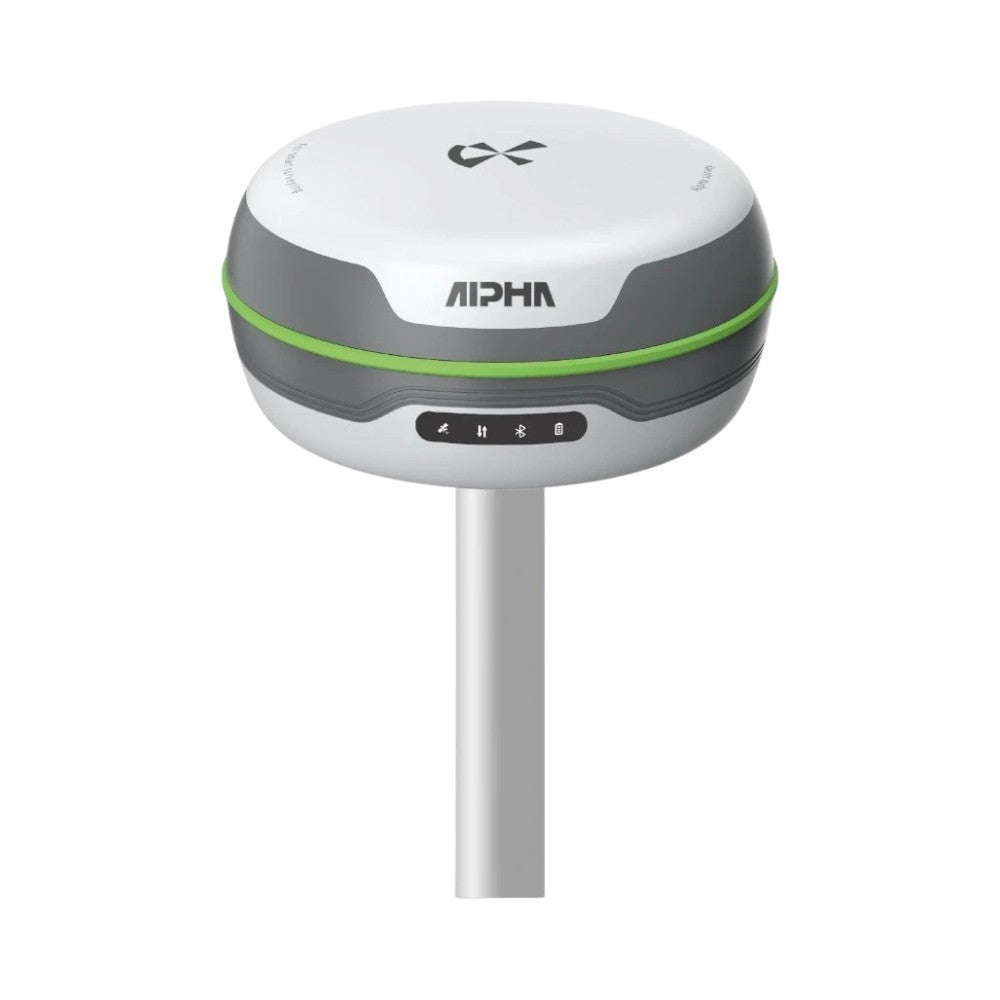

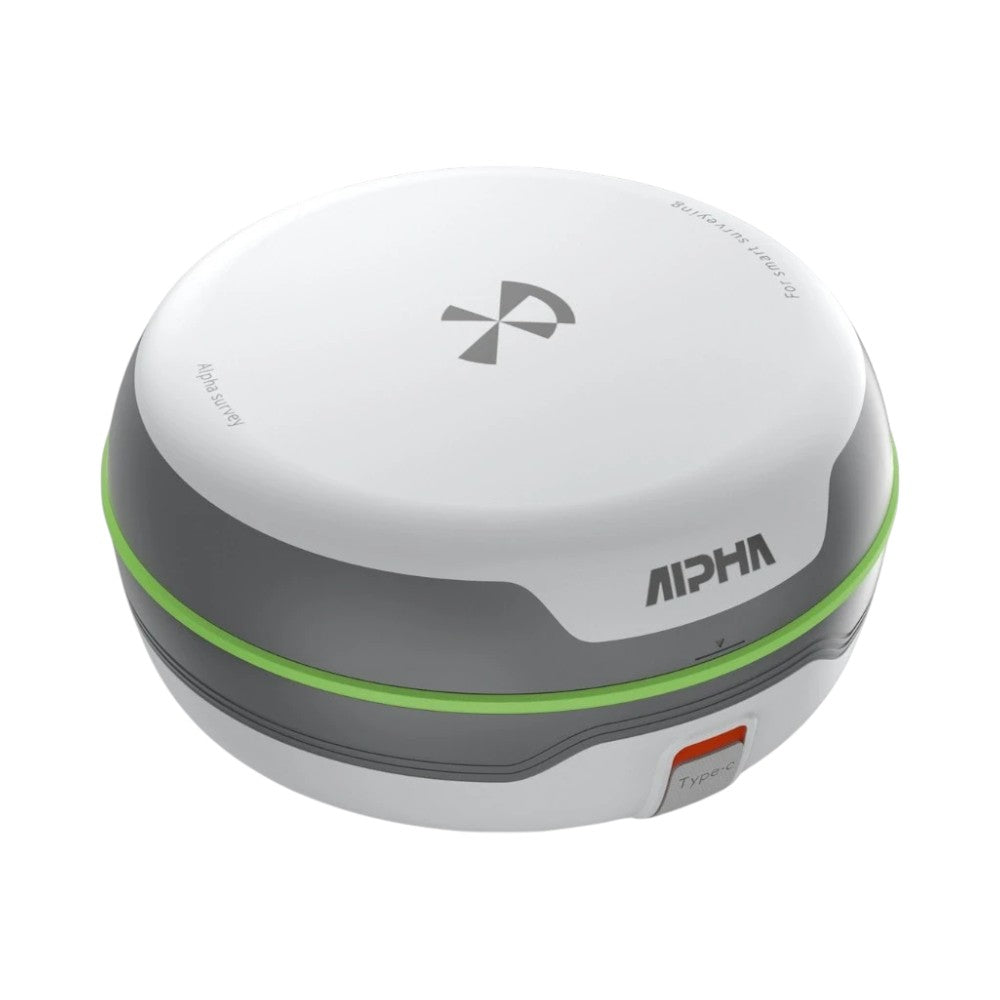

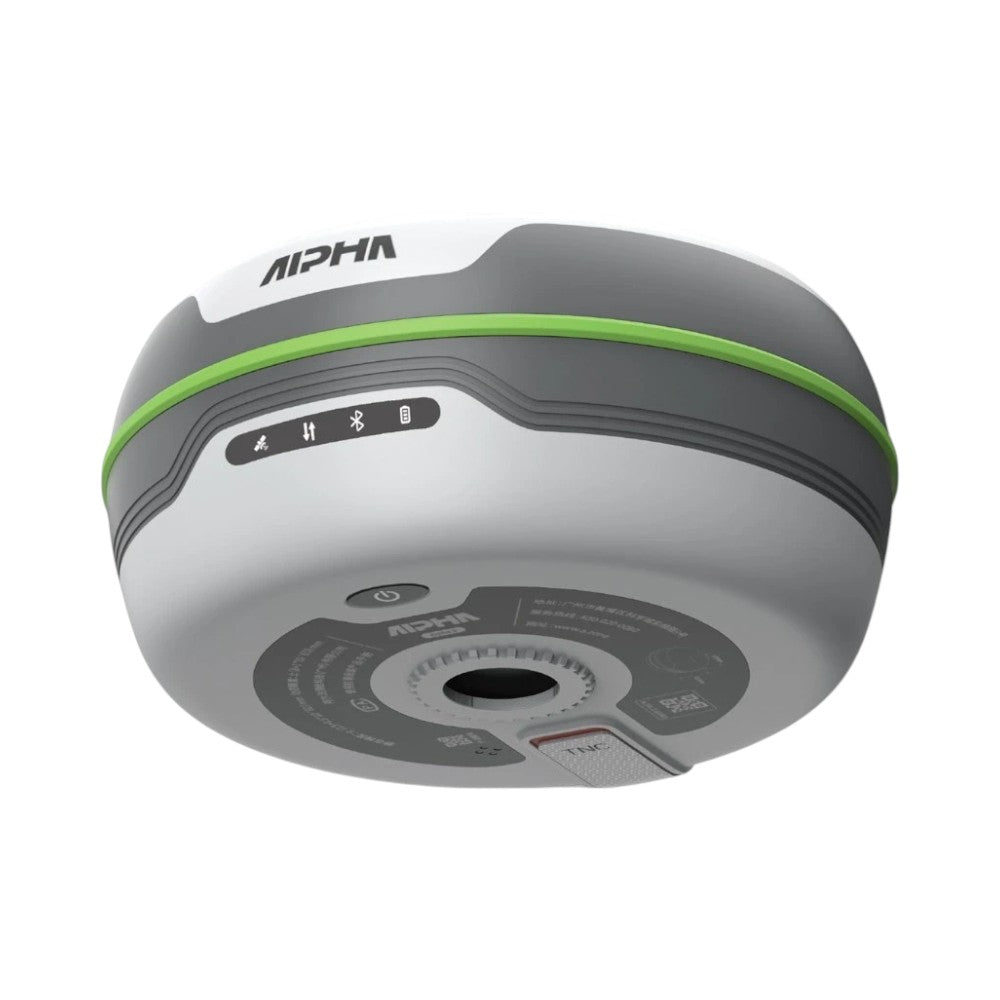

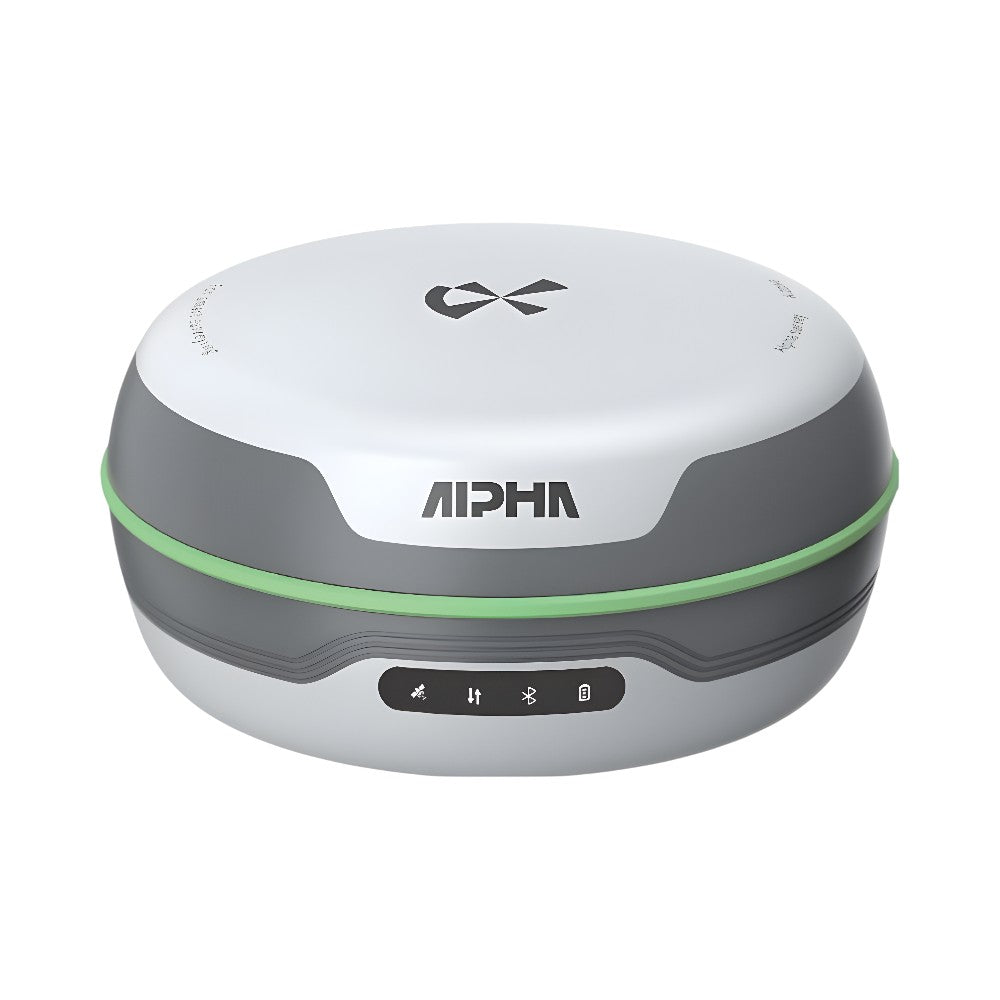

Alpha 5i RTK GNSS Receiver
The Alpha 5i RTK GNSS receiver is a specialized surveying tool that delivers unmatched precision, durability, and connectivity. It is ideal for surveying professionals that do their work in challenging environments and can withstand different types of temperatures, hubidyt, and weather conditions.
Price on request
SKU: MET-GPS01
Price depends on configuration, availability, delivery destination, and shipping method. Send us a request and we will prepare a tailored quote with delivery time.
Secure checkout available with major credit cards, Apple Pay, Google Pay and Shop Pay.
Product Highlights
- Extended Radio Range: Built-in transceiver with up to 12km range for reliable communication.
- All-Satellite Support: Compatible with GPS, BDS, GLONASS, Galileo, QZSS, and SBAS.
- Tilt Compensation: 60° tilt with 2cm accuracy for precise measurements in uneven conditions.
- Rugged Durability: IP67 rating for water/dust resistance and withstands 2m drops on concrete.
- Advanced Connectivity: 4G LTE, Bluetooth 5.0, and Type-C interface for seamless operation.
Overview
The Alpha 5i RTK GNSS Receiver is engineered for professionals who demand precision, reliability, and durability in challenging environments. Boasting a built-in radio transceiver with a range of up to 12km, 60° tilt compensation, and compatibility with all major satellite systems, the Alpha 5i offers exceptional performance for surveying and mapping. Its rugged design, long battery life, and advanced features make it the perfect tool for professionals working in demanding conditions.
Specifications
| Radio Range | Up to 12km |
|---|---|
| Tilt Compensation | 60°, with 2cm accuracy |
| Satellite Systems Supported | GPS, BDS, GLONASS, Galileo, QZSS, SBAS |
| Horizontal | ±(2.5mm + 0.5ppm) |
| Vertical | ±(5mm + 0.5ppm) |
| Battery Life | Up to 25 hours in rover mode |
| Protection | IP67, withstands 2m drop on concrete |
| Operating Temperature | -30°C to +70°C |
| Display | 5.5-inch screen with 8-core processor |
| Connectivity | 4G LTE, Bluetooth 5.0, Type-C interface |
| Software | Integrated DiMap for surveying and mapping |
Features

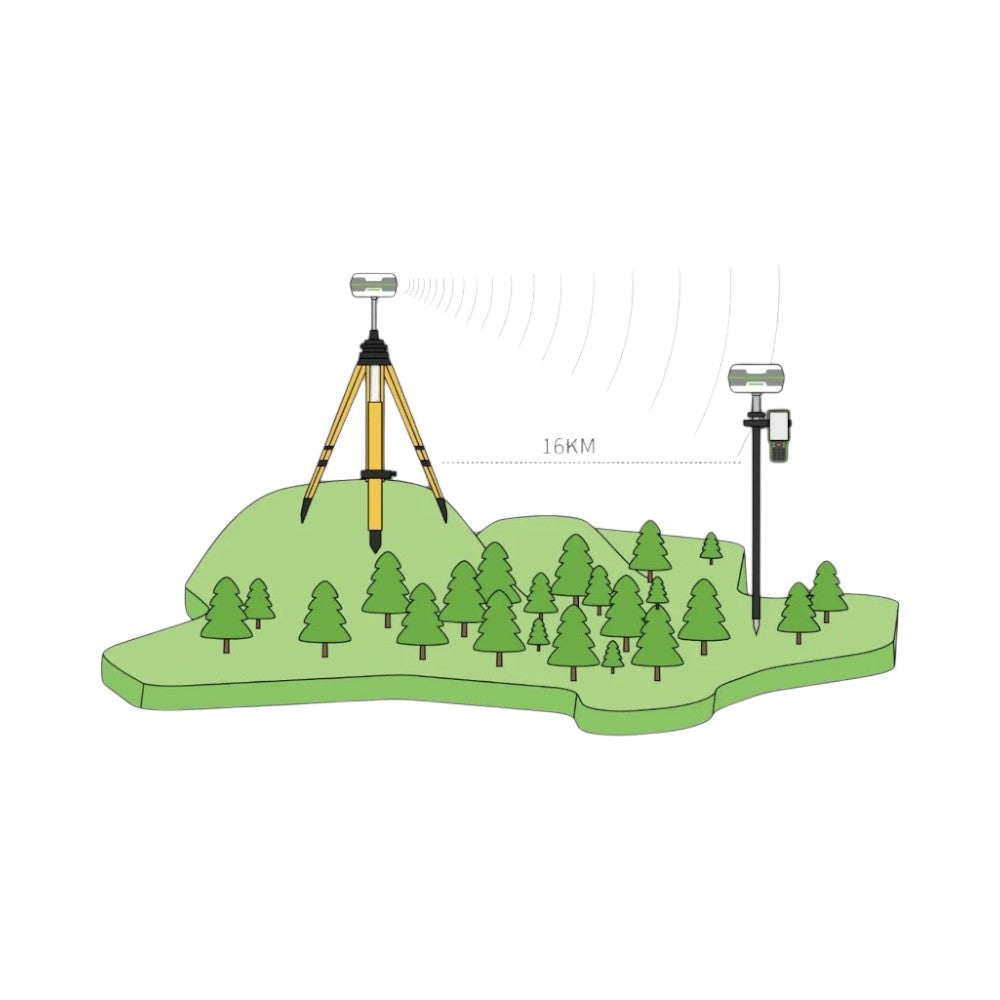

Extended Radio Range
Built-in transceiver with up to 12km range for reliable communication.
All-Satellite Support
Compatible with GPS, BDS, GLONASS, Galileo, QZSS, and SBAS.

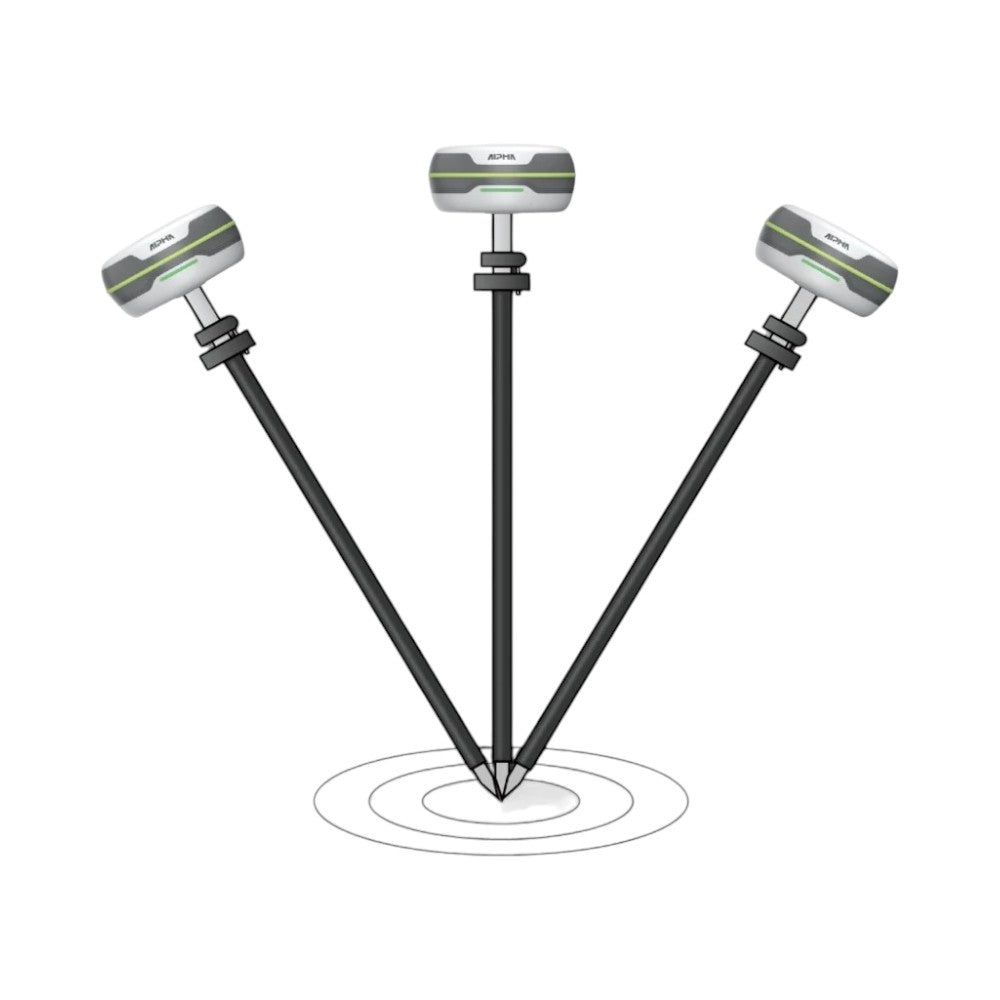

Tilt Compensation
60° tilt with 2cm accuracy for precise measurements in uneven conditions.
Rugged Durability
IP67 rating for water/dust resistance and withstands 2m drops on concrete.
Advanced Connectivity
4G LTE, Bluetooth 5.0, and Type-C interface for seamless operation.
High-Performance Display
5.5-inch screen with 8-core processor for efficient data management.
Integrated Software
DiMap software for professional surveying and mapping applications.
Long Battery Life
Up to 25 hours of operation in rover mode.
In the Box
- Alpha 5i GNSS RTK Receiver
- Rechargeable battery
- USB charging cable
- Power adapter
- UHF antenna
- Carrying case
- Quick start guide
Product Downloads
Download the datasheet, brochure or user guide for this product (PDF).
Frequently Asked Questions
Reviews
Previously published reviews
⭐️⭐️⭐️⭐️⭐️ S. Bill – Verified Buyer – September 20, 2024
"I originally bought the Alpha 5i as a backup GNSS unit, but it has quickly become my primary receiver. It connects to satellites fast and holds a fix even near trees and buildings, where some receivers struggle. The build quality is solid, and it feels like it can withstand the rough conditions of a construction site."
