Alpha

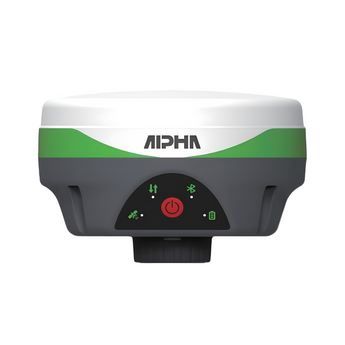

Alpha 4AR RTK - GNSS Receiver
The Alpha 4AR RTK - GNSS receiver comes with an ultra-compact design, excellent precision positioning, and durability so advanced that you can use it in any type of terrains. It is aimed at users that seek an ultimate surveying experience.
Price on request
SKU: MET-GPS09
Price depends on configuration, availability, delivery destination, and shipping method. Send us a request and we will prepare a tailored quote with delivery time.
Secure checkout available with major credit cards, Apple Pay, Google Pay and Shop Pay.
Product Highlights
- Compact Design: Weighs only 830g for easy transport and handling.
- High-Precision Antenna: 8cm full-frequency antenna supports all satellite systems.
- Advanced Chip Technology: Powered by the latest NebulasIV SoC chip for rapid fixed solutions.
- Inertial Navigation: 90° tilt compensation with 2cm accuracy for versatile applications.
- Integrated UHF Radio: Reliable real-time positioning up to 3km, compatible with RTK protocols.
Overview
The Alpha 4i RTK - GNSS Receiver is a cutting-edge solution for global surveying professionals, combining exceptional precision, speed, and durability in a lightweight design. With innovative technologies like the NebulasIV SoC chip and a robust all-satellite full-frequency antenna, this receiver ensures fast and accurate positioning, even in challenging environments. Its rugged build and advanced features make it the go-to choice for precision surveying.
Specifications
| Channels | 1408 |
|---|---|
| GNSS Support | GPS, GLONASS, Galileo, BDS, QZSS, SBAS, NAVIC |
| Horizontal | ±(8+1×10⁻⁶×D) mm |
| Vertical | ±(15+1×10⁻⁶×D) mm |
| Tilt Compensation | 0-90°, Update Rate: 100Hz |
| Operating System | RTOS |
| Bluetooth | BT5.0 (backward compatible) |
| Frequency Range | 410-470MHz |
| Water/Dust Resistance | IP67 |
| Operating Temperature | -30°C to +70°C |
| Weight | 830g |
Features
Compact Design: Weighs only 830g for easy transport and handling.
High-Precision Antenna: 8cm full-frequency antenna supports all satellite systems.
Advanced Chip Technology: Powered by the latest NebulasIV SoC chip for rapid fixed solutions.
Inertial Navigation: 90° tilt compensation with 2cm accuracy for versatile applications.
Integrated UHF Radio: Reliable real-time positioning up to 3km, compatible with RTK protocols.
Durable Construction: Aluminum alloy housing and nano-material cover for rugged use.
Seamless Connectivity: Bluetooth 5.0 for enhanced device compatibility.
Resilient Performance: Operates reliably in extreme temperatures (-30°C to +70°C).
In the Box
- Alpha 4i GNSS Receiver
- Rechargeable Li-ion Battery
- Dual Port Smart Charger
- GNSS Survey Antenna
- Antenna Cable
- Data Transfer Cable (USB)
- Carrying Case
- Quick Start Guide
- Calibration Certificate
- Tools and Accessories Kit
Product Downloads
Download the datasheet, brochure or user guide for this product (PDF).
Frequently Asked Questions
Reviews
Compare similar equipment
A structured side-by-side of comparable options in this category to help you choose the right setup for your workflow.
| Specification | This product | |||
|---|---|---|---|---|
| Brand | Alpha | FJDynamics | South | South |
| Price | Price on request | Price on request | Price on request | Price on request |
| Availability | In stock | In stock | In stock | In stock |
| Type | GNSS Receiver | GNSS LiDAR fusion system | GNSS Receiver | GNSS Receiver |
| Tracking Channels | — | — | — | 1760 channels |
| IMU / Tilt Compensation | — | Yes | — | Yes |
| Positioning Technology | RTK | RTK | — | — |
| Condition | New | New | New | New |
| Delivery Time | 4–7 business days | 4–7 business days | 4–7 business days | 4–7 business days |
