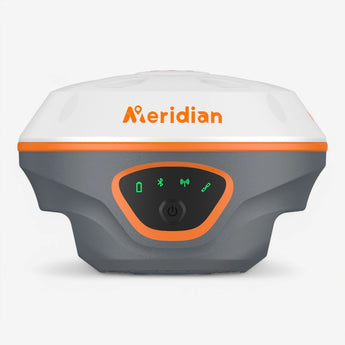

Meridian M20L GPS GNSS Receiver
Meridian M20L GPS GNSS Receiver Pole
Meridian M20L GPS GNSS Receiver Under View
Meridian M20L GPS GNSS Antena Receiver
Meridian M20L GPS GNSS Receiver Backside
Meridian M20L GPS GNSS Receiver Bottom
Meridian M20L GPS GNSS Receiver Top View
Meridian M20L GPS GNSS Receiver Backside
Meridian M20L GPS GNSS Receiver
Meridian M20L GPS GNSS Receiver Pole
Meridian M20L GPS GNSS Receiver Under View
Meridian M20L GPS GNSS Antena Receiver
Meridian M20L GPS GNSS Receiver Backside
Meridian M20L GPS GNSS Receiver Bottom
Meridian M20L GPS GNSS Receiver Top View
Meridian M20L GPS GNSS Receiver Backside

Meridian

Meridian M20L RTK GNSS Receiver

$2,900.00

Contact us for the best deal on this product.

The M20L GNSS Receiver is a high-precision RTK system engineered for professional surveying and geospatial applications. Featuring 1408-channel GNSS tracking, 120° IMU tilt compensation, and green laser technology for enhanced visibility, it ensures fast and accurate positioning even in complex environments.
Payment
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa
  • Worldwide Shipping
  • Buyer Protection and Product Warranty
  • Specialists in Import, Export, Taxes, and Duties
  • Expert Assistance and Premium Customer Support

Product Information

The M20L GNSS Receiver is designed to provide precise and efficient RTK positioning with a 1408-channel multi-constellation GNSS module. The integrated green laser technology allows for visual guidance up to 100 meters, making it ideal for surveying tasks requiring precise alignment.

The 120° calibration-free IMU tilt sensor ensures fast data collection without the need to level the pole, while the palm-sized, lightweight design (699g) offers easy handling and portability. The rugged IP67-rated housing guarantees dustproof and waterproof protection.

The 7.4V 7000mAh lithium-ion battery supports up to 26 hours of continuous operation, while Bluetooth connectivity ensures fast and seamless data transfer. The GSM mode (45-50 km) and 8 km radius range make it suitable for long-distance surveying.

Channels: 1408-channel GNSS receiver

GNSS Signal Support:

  • GPS: L1 C/A, L1C, L2P(Y), L2C, L5
  • GLONASS: L1, L2, L3
  • BEIDOU: B1I, B2I, B3I, B1C, B2a, B2b
  • GALILEO: E1, E5a, E5b, E6
  • QZSS: L1 C/A, L1C, L2C, L5, L6
  • SBAS: L1, L5
  • IRNSS: L5
  • L-Band: Atlas

Positioning Accuracy:

Single Point Positioning (RMS):

  • Horizontal: 1.5m
  • Vertical: 3.0m

DGPS (RMS):

  • Horizontal: 0.4m
  • Vertical: 0.8m

RTK (RMS):

  • Horizontal: ±(8 mm + 1 ppm)
  • Vertical: ±(15 mm + 1 ppm)

  • IMU Technology: 120° calibration-free tilt compensation

Laser Technology:

  • Green Laser Range: 100 meters
  • Accuracy: 8 mm + 3 mm/m

Connectivity:

  • Bluetooth: V2.1+EDR/V4.0 Dual Mode
  • GSM Mode: 45-50 km
  • Radius Range: Up to 8 km

Battery:

  • Capacity: 7.4V, 7000mAh lithium-ion
  • Battery Life: Up to 26 hours

Durability:

  • IP67-rated dustproof and waterproof
  • Operating Temperature: -40°C to +85°C

Weight: 699g

  • 1408-channel multi-constellation receiver for high-precision RTK
  • Green laser technology for visual alignment up to 100 meters
  • 120° IMU tilt sensor for fast and flexible measurements
  • Palm-sized and lightweight design for easy handling
  • High-capacity battery with up to 26 hours of operation
  • GSM mode (45-50 km) for long-distance connectivity
  • Radius range of 8 km for local surveying tasks
  • Bluetooth connectivity for fast data transfer
  • Rugged IP67-rated housing for dust and water resistance
  • High-precision RTK positioning suitable for professional surveying and mapping

M20L_Meridian_Datasheet.pdf

In the Box

  • M20L GNSS Receiver
  • 7.4V 7000mAh lithium-ion battery
  • USB Type-C charging cable
  • Green laser module
  • Protective carrying case
  • Quick start guide

Q: What is the battery life of the M20L GNSS Receiver?

A: The 7.4V 7000mAh lithium-ion battery offers up to 26 hours of continuous use, making it suitable for long-duration projects.

Q: How accurate is the M20L GNSS Receiver?

A: The RTK positioning accuracy is 8 mm + 1 ppm (horizontal) and 15 mm + 1 ppm (vertical), ensuring centimeter-level precision.

Q: Does the M20L support laser alignment?

A: Yes, it features green laser technology for alignment up to 100 meters with an accuracy of 8 mm + 3 mm/m.

Q: Can the M20L be used on tilted surfaces?

A: Yes, the IMU tilt sensor supports up to 120°, allowing for flexible measurements on uneven terrain.

Q: What is the protection rating of the M20L?

A: The M20L has an IP67-rated protection, making it dustproof and waterproof for rugged field conditions.

Q: What is the GSM mode range?

A: The GSM mode supports connectivity over a range of 45-50 km.
