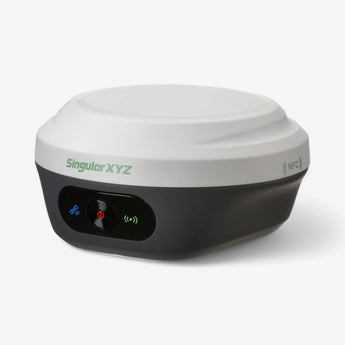

SingularXYZ Orion ONE-AR GNSS Receiver

Accuracy

• Standalone: 1.5 m (H) / 2.5 m (V)
• DGPS: 0.4 m (H) / 0.8 m (V)
• Static: 2.5 mm + 0.5 ppm (H) / 5 mm + 0.5 ppm (V)
• RTK: 8 mm + 1 ppm (H) / 15 mm + 1 ppm (V)
• PPP: 5 cm (H) / 10 cm (V)
• AR Stakeout: 8 mm + 1 ppm (H) / 15 mm + 1 ppm (V)
• Tilt Surveying: < ±2.5 cm (within 60°)
• Time Accuracy: 20 ns

GNSS Tracking

• Channels: 1408
• Constellations: GPS, GLONASS, BDS, Galileo, QZSS, NavIC, SBAS
• L-Band supported
• Cold Start: <30s
• RTK Init Time: <5s (typical), Re-acquisition: <1s
• RTK Reliability: >99.9%

Visual Sensor

• Sensor Type: Global shutter camera
• Pixel: 2 MP
• Frame Rate: 30 fps
• Field of View: 75°
• Feature: Starlight-grade image capture in low-light environments

Communication

• UHF Modem (LoRa, TRIMTALK, SATEL, etc.)
• Range: Up to 15 km
• Frequency: 410–470 MHz
• Channel spacing: 25 kHz
• Transmit Power: 0.5W – 2W
• Bluetooth 4.0 Dual Mode
• NFC & Wi-Fi (802.11 a/b/g/n/ac)
• Interface: Type-C port, SMA for UHF antenna

Data Formats

• Output: NMEA-0183, RINEX 3.02/3.04, *.xyz
• Update Rate: 1–50 Hz
• Correction: RTCM v3.0 – 3.3
• Supported Protocols: Ntrip client/server/caster, TCP, UDP

Power

• Battery: 4200 mAh (up to 12 hours runtime)
• Charging: Type-C, ~3 hours full charge
• Input Voltage: DC 5–15V
• Power Consumption: 1.8W

Physical

• Size: Φ107 mm × 58.7 mm
• Weight: 547g
• Housing: Magnesium-aluminum alloy
• Storage: 8 GB (expandable to 32 GB)

Environmental

• Operating Temp: -40°C to +65°C
• Storage Temp: -55°C to +85°C
• Humidity: 100% non-condensing
• Protection: IP67
• Drop Tested: 2m onto concrete

User Interface

• Front Panel: 3 LEDs (GNSS, data, battery), multifunction power button
• Web UI: Accessible via Wi-Fi for configuration, status, data transfer, and firmware updates

• Immersive AR stakeout with starlight-grade 2MP camera
• Full-constellation GNSS with 1408 channels and L-Band support
• 60° IMU tilt surveying without calibration
• Integrated UHF modem with LoRa & major protocols, up to 15 km range
• Palm-sized, rugged IP67 design with magnesium-aluminum housing
• Real-time data via Wi-Fi, Bluetooth, NFC, or USB-C
• Web UI for quick setup and file management
• 12-hour battery life with fast Type-C charging

Orion_One_AR_Datasheet

In the Box

• Orion ONE-AR GNSS Receiver
• Pre-installed AR visual module
• USB-C charging cable
• UHF antenna
• Soft pouch or protective case
• Quick Start Guide & User Manual

Q: What makes the Orion ONE-AR unique?

A: It integrates AR visual stakeout using a 2MP starlight camera, allowing surveyors to mark positions by simply viewing them in the real world—speeding up stakeout by up to 50%.

Q: Does it support traditional RTK workflows?

A: Yes, it provides RTK accuracy with multi-constellation tracking and full protocol compatibility (NTRIP, TCP, UDP).

Q: How accurate is the AR stakeout?

A: AR positioning is accurate to 8 mm + 1 ppm (H) and 15 mm + 1 ppm (V)—suitable for high-precision fieldwork.

Q: Can I configure the device without a data collector?

A: Yes, the Web UI allows full access via Wi-Fi for setup, file transfer, and firmware updates.

Q: What if I need a compatible UHF modem with other brands?

A: Singular offers an optional standard UHF module—just specify when ordering.

Q: Is the device durable?

A: Yes. The unit is IP67-rated, drop-tested from 2 meters, and operates between -40°C to +65°C.
