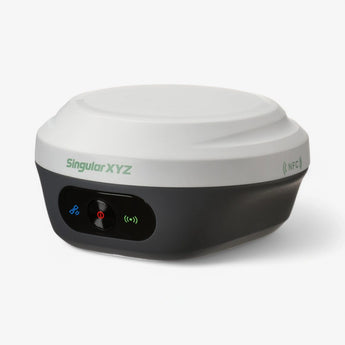

SingularXYZ Orion ONE Laser GNSS Receiver

Accuracy

• Standalone: 1.5m H / 2.5m V
• DGPS: 0.4m H / 0.8m V
• Static Post-processing: 2.5mm + 0.5ppm H / 5mm + 0.5ppm V
• RTK: 8mm + 1ppm H / 15mm + 1ppm V
• PPP: 5cm H / 10cm V
• SBAS: <1.0m 3D RMS
• Tilt Surveying: < ±2.5cm (within 60°)

Laser Sensor

• Range: Up to 10 meters
• Accuracy: (3–5)mm + 1ppm
• Measuring Frequency: 2Hz
• Laser Tilt Measurement: ≤5.5cm (5m range, ≤60° tilt)
• Laser Power: 2mW–3mW

Satellites Tracking

• Channels: 1408
• GNSS Systems: GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS
• L-Band supported
• RTK Initialization Time: <5s
• Re-acquisition: <1s
• Reliability: >99.9%

Communication

• UHF Modem (LoRa, TRIMMARK3, SATEL, etc.), up to 15 km
• Bluetooth: BT 4.0 Dual Mode
• NFC: Supported
• WiFi: 802.11 a/b/g/n/ac
• Interface: Type-C (charging & data), SMA for UHF

Data

• Output Formats: NMEA-0183, RINEX 3.02/3.04, *.xyz
• Update Rate: 1–50Hz
• Correction Formats: RTCM v3.3/3.2/3.1/3.0
• Protocols: Ntrip client/server/caster, TCP, UDP

Power

• Battery: 4200mAh
• Rntime: Up to 12 hours
• Charging Time: ~3 hours
• Power Consumption: 1.8W
• Input Voltage: 5–15V DC

Physical

• Size: Φ107 mm × 58.7 mm
• Weight: 547g
• Storage: 8GB (expandable to 32GB)
• Housing: Magnesium-aluminum alloy

Environmental

• Operating Temp: -40°C to +65°C
• Storage Temp: -55°C to +85°C
• Humidity: 100% non-condensing
• Waterproof/Dustproof: IP67
• Drop Test: 2m on concrete

User Interface

• 3 LED indicators
• 1 multifunctional power button
• Type-C charging port
• WiFi Web UI for configuration & data management

• Integrated non-contact laser module for measuring points up to 10 meters away
• Full-constellation GNSS support with 1408 channels
• 60° IMU tilt compensation without calibration
• UHF modem with 15km range (LoRa and major protocols)
• WiFi, Bluetooth, NFC & Web UI for easy connectivity and control
• IP67 protection & drop resistance for harsh environments
• Up to 12 hours of battery life, with fast charging
• Palm-sized & lightweight—only 547g

Orion_One_Laser_GNSS_Receiver_Datasheet

In the Box

• Orion ONE-Laser GNSS Receiver
• Laser sensor module (pre-installed)
• Type-C charging cable
• UHF antenna
• Soft carrying pouch
• User manual and setup guide

Q: What is the main advantage of the Orion ONE-Laser compared to regular GNSS receivers?

A: It offers non-contact laser point collection, ideal for hazardous or unreachable points, combining it with RTK GNSS + IMU tilt for full versatility.

Q: Can I use the laser at an angle?

A: Yes, the system supports laser tilt measurements up to 60°, with accuracy maintained within 5.5 cm at 5 meters.

Q: Is the receiver compatible with third-party UHF rovers?

A: By default, no—the enhanced UHF is not compatible with standard UHF protocols. However, a compatible UHF version is available upon request.

Q: Can I configure the receiver without a controller?

A: Yes, the built-in Web UI allows full access via WiFi for configuration, data transfer, and firmware updates.

Q: How durable is the device?

A: The Orion ONE-Laser is IP67-rated, drop-tested from 2 meters, and operates in extreme temperatures (-40°C to +65°C).
