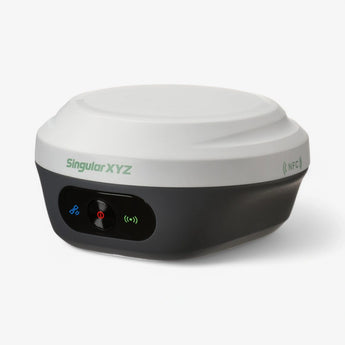

SingularXYZ Orion ONE Visual & Laser GNSS Receiver
The SingularXYZ Orion ONE visual & laser GNSS receiver is a compact, palm-sized GNSS receiver that is able to integrate cutting-edge GNSS technology with visual, laser, and IMU tech. It is designed for high-efficiency field surveying as it supports AR stakeout and laser measurements that allow for top-tier accuracy and full-constellation satellite tracking. Watch the Singular Orion ONE in Action
Price on request
SKU: MET-GPS26
Price depends on configuration, availability, delivery destination, and shipping method. Send us a request and we will prepare a tailored quote with delivery time.
Secure checkout available with major credit cards, Apple Pay, Google Pay and Shop Pay.
Product Highlights
- Visual stakeout with real-time AR overlay
- Laser range measurement in signal-blocked areas
- Full satellite constellation compatibility
- 60° tilt IMU with AR accuracy compensation
- Built-in UHF and Wi-Fi for seamless communication
Overview
The SingularXYZ Orion ONE visual & laser GNSS receiver redefines field surveying by combining visual and laser innovations into one streamlined receiver. It offers three model variants—Orion ONE, Orion ONE-Laser, and Orion ONE-AR. Each of them is tailored for different needs, depending on the situation in the field. Whether you require visual guidance with starlight-grade cameras, precision laser measurements, or immersive AR stakeout capabilities, the Orion ONE delivers reliable results even in the most challenging environments.
This compact receiver offers:
- AR-enhanced visual stakeout
- 10-meter laser measuring with up to 60° tilt
- 60° IMU for calibration-free tilt compensation
- Full-constellation support (GPS, GLONASS, BDS, Galileo, QZSS, NavIC, SBAS)
- IP67 ruggedness, WiFi, NFC, and 12-hour battery life
It is perfect for hard-to-reach or signal-blocked areas and is built to improve productivity and expand your productivity.
Product Video
See the product in real field use.
Specifications
| RTK | 8mm + 1ppm Horizontal / 15mm + 1ppm Vertical |
|---|---|
| AR Stakeout | 8mm + 1ppm Horizontal / 15mm + 1ppm Vertical |
| Static | 2.5mm + 0.5ppm / 5mm + 0.5ppm |
| DGPS | 0.4m H / 0.8m V |
| PPP | 5cm H / 10cm V |
| Standalone | 1.5m H / 2.5m V |
| Tilt Surveying | < ±2.5cm within 60° tilt |
| Range | 10m |
| Accuracy | 3–5mm + 1ppm |
| Frequency | 2Hz |
| Max Tilt | ≤5.5cm (within 60° tilt) |
| Type | Global shutter |
| Pixel | 2MP |
| FOV | 75° |
| Frame rate | 30fps |
| Features | Starlight-grade, low-light capable |
| Channels | 1408 |
| Systems | GPS, GLONASS, Galileo, BDS, QZSS, NavIC, SBAS |
| Cold start | <30s, reacquisition: <1s |
| RTK init | <5s typical; reliability: >99.9% |
| UHF | 410–470 MHz, up to 15km |
| Size | Φ107mm × 58.7mm |
| Weight | 547g |
| Storage | 8GB (expandable to 32GB) |
| Housing | Magnesium-aluminum alloy |
| Battery | 4200mAh, 12h working, 3h charging |
| Temp | -40°C to +65°C |
| Drop tested | 2m onto concrete |
| Humidity | 100% non-condensing |
Features
Visual stakeout with real-time AR overlay
Laser range measurement in signal-blocked areas
Full satellite constellation compatibility
60° tilt IMU with AR accuracy compensation
Built-in UHF and Wi-Fi for seamless communication
Ultra-compact, durable magnesium-aluminum casing
12-hour operating battery with fast charging
In the Box
- Orion ONE GNSS receiver
- Laser or camera module (depending on model)
- Charging cable (USB-C)
- Soft carrying case
- User manual
- Optional UHF antenna
- Quick-start guide
Product Downloads
Download the datasheet, brochure or user guide for this product (PDF).
