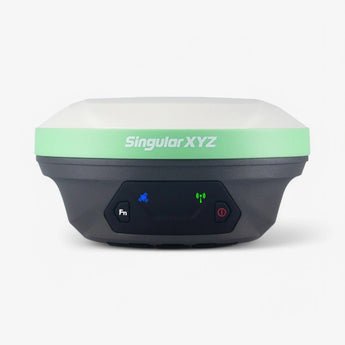

SingularXYZ X1 Pro GNSS Receiver

Accuracy

• Standalone: 1.5 m (H) / 2.5 m (V)
• DGPS: 0.4 m (H) / 0.8 m (V)
• Static: 2.5 mm + 0.5 ppm (H) / 5 mm + 0.5 ppm (V)
• RTK: 8 mm + 1 ppm (H) / 15 mm + 1 ppm (V)
• PPP: 5 cm (H) / 10 cm (V)
• SBAS: <1.0 m 3D RMS
• Tilt: < ±2.5 cm within 60°
• Time Accuracy: 20 ns

Satellite Tracking

• Channels: 1408
• Constellations: GPS, BDS, Galileo, GLONASS, QZSS, IRNSS, SBAS
• L-Band: Supported
• RTK Init: <5s
• Re-acquisition: <1s
• Cold Start: <30s
• RTK Reliability: >99.9%

Communication

• 4G Modem: Global bands (LTE, WCDMA, GSM, CDMA)
• UHF Radio (up to 15km): LoRa TX/RX; RX: TRIMTALK, SATEL, TRIMMARK3
• Bluetooth: BT 4.0 Dual Mode
• WiFi: 802.11 a/b/g/n/ac
• NFC: Supported

Ports:

• RS232 (7-pin Lemo)
• SIM card slot
• TNC (UHF Antenna)
• USB Type-C

Data Management

• Output: NMEA-0183, RINEX 3.02/3.04, Binary (*.xyz)
• Rate: 1–50 Hz
• Correction: RTCM v3.0–3.3, CMR
• Protocols: Ntrip (Client/Server/Caster), TCP

Power

• Battery: 6700 mAh
• Runtime: Over 20 hours
• Charging: 3 hours fast charge
• Input: 9–28V DC
• Consumption: 2.0W

Physical

• Dimensions: Φ133.5 mm × 67 mm
• Weight: 870 g
• Storage: 8 GB (expandable to 32 GB)
• Housing: Magnesium-aluminum alloy
• Optional: Built-in speaker for voice broadcast

Environment

• Operating Temp: -40°C to +65°C
• Storage Temp: -55°C to +85°C
• Humidity: 100% non-condensing
• Protection: IP68
• Drop Resistance: 2 m onto concrete

User Interface

• Display: 1.1” OLED Color Screen
• Buttons: Power & Function
• Web UI: Yes – configuration, status, data transfer, updates
• Indicators: GNSS, battery, correction, 4G/static recording



• HD OLED screen for live status and menu navigation
• 60° IMU tilt compensation for fast, accurate point collection
• Full-band UHF modem with up to 15 km range
• Global 4G LTE coverage with flexible protocol support
• 20+ hour operation on a single charge
• Rugged & waterproof IP68-rated with 2-meter drop survival
• Wi-Fi & WebUI access for configuration without software
• Voice broadcast status alerts (optional speaker module)

X1_Pro_GNSS_Receiver-Datasheet.

In the Box

• X1 Pro GNSS Receiver
• Type-C USB Cable
• TNC UHF Antenna
• SIM Tray Pin Tool
• Carrying Case
• Quick Start Guide
• Optional: RS232 Cable, Voice Speaker Module

Q: Is the UHF modem compatible with other receivers?

A: The default UHF is enhanced LoRa (not standard), but a compatible UHF module can be requested to work with other brand rovers.

Q: What makes the OLED screen useful in the field?

A: It provides clear status updates, GNSS fix, battery level, and supports quick configuration without a controller.

Q: Does it support point collection while tilted?

A: Yes, the built-in IMU allows for 60° tilt surveying with < ±2.5 cm accuracy.

Q: How do I set it up without a data collector?

A: Through the WebUI via Wi-Fi, which supports setup, file transfer, and firmware updates.

Q: Is this device rugged enough for construction sites?

A: Absolutely—IP68, drop-tested from 2m, and certified for extreme temperatures down to -40°C.
