Metricop

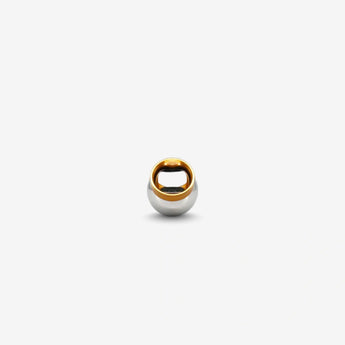

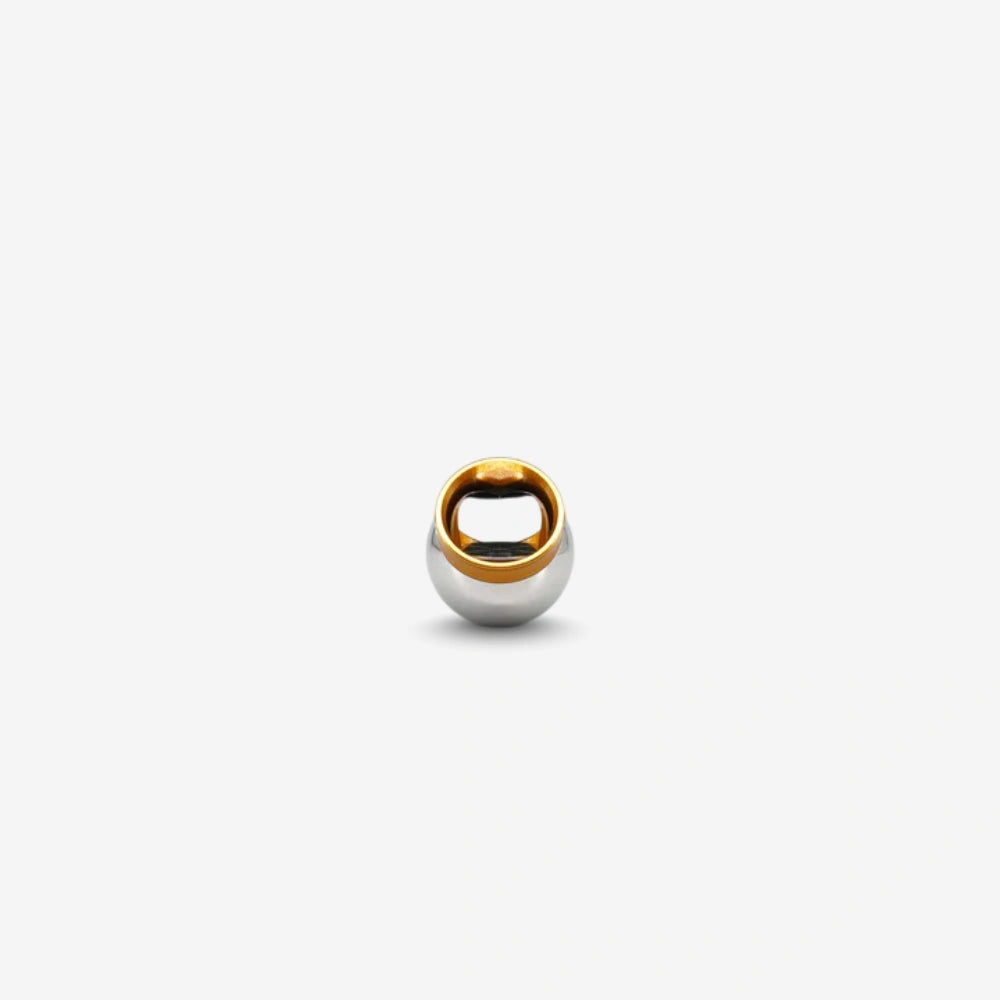

SMR 0.5 Inch Reflector – 12.7 mm Spherically Mounted Retroreflector
Compact SMR 0.5-inch reflector with 12.7 mm hardened steel sphere and high-precision prism, ideal for tight-space and high-accuracy laser tracker applications. It also comes with a K9 optical glass corner-cube prism, resulting in excellent accuracy to go alongside its compact form.
$1,095.00
SKU: SMR07
Secure checkout available with major credit cards, Apple Pay, Google Pay and Shop Pay.
Product Highlights
- 12.7 mm (0.5″) mini SMR sphere – Optimized for small-scale or confined-space tracking tasks.
- K9 optical glass corner-cube – Multi-layer coated prism with minimal beam deviation.
- High measurement accuracy – Beam deviation ≤ 5 arcseconds; rotational deviation ≤ 0.0003″.
- Hardened stainless steel body – SUS-440C steel provides durability and dimensional stability.
- Multiple holder options – Kit includes magnetic, edge, and shank holders for various setups.
Overview
The SMR 0.5-inch reflector is a high-precision miniature target used in 3D coordinate measurements and metrology applications where space is limited. It features a 12.7 mm stainless steel sphere and a K9 optical glass corner-cube prism.
Its reduced size makes it ideal for fine feature measurement, tooling inspection, or part alignment in aerospace, automotive, and precision machining sectors.
Available as a standalone unit or in a complete kit with mounting holders and a protective case.
Specifications
| Reflector size | 12.7 mm (0.5 inch) spherical retroreflector |
|---|---|
| Offset | Typically 0.375″ or as per tracker setup (varies) |
| Beam deviation | ≤ 5 arcseconds |
| Rotational accuracy | ≤ 0.0003″ |
| Housing material | Hardened SUS-440C stainless steel |
| Prism type | RSL1 corner-cube prism with multi-layer coating |
| Prism material | K9 optical glass |
| Surface finish | Chrome plated, anti-corrosive |
| Weight | ~90–150 g depending on configuration |
| Operating range | Up to 25 m (varies by environment and tracker) |
| Compatibility | Universal – works with FARO, Leica, API, Hexagon |
Features
12.7 mm (0.5″) mini SMR sphere – Optimized for small-scale or confined-space tracking tasks.
K9 optical glass corner-cube – Multi-layer coated prism with minimal beam deviation.
High measurement accuracy – Beam deviation ≤ 5 arcseconds; rotational deviation ≤ 0.0003″.
Hardened stainless steel body – SUS-440C steel provides durability and dimensional stability.
Multiple holder options – Kit includes magnetic, edge, and shank holders for various setups.
Compact and lightweight – Perfect for lightweight probe heads and robotic arms.
Universal compatibility – Works with FARO, Leica, API, and most common laser tracker systems.

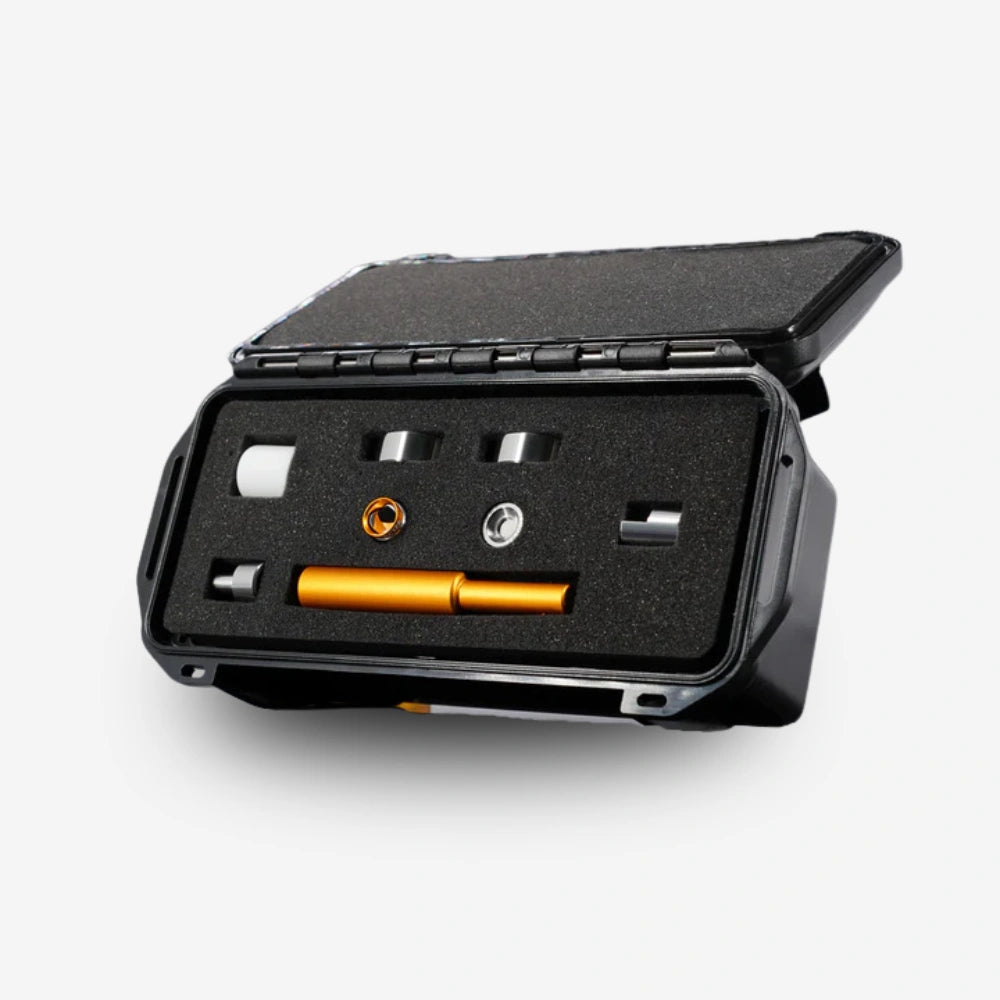

In the Box
- 1 × SMR 0.5" Reflector (12.7 mm)
- No holders or case included
- 1 × SMR 0.5" Reflector
- 3 × Holders (Magnetic, Shank, Edge)
- 3 × Drift Nest Adapters
- 1 × Compact Protective Case
Frequently Asked Questions
Reviews
Compare similar equipment
A structured side-by-side of comparable options in this category to help you choose the right setup for your workflow.
| Specification | This product | |
|---|---|---|
| Brand | Metricop | Metricop |
| Price | $1,095.00 | $1,035.00 |
| Availability | In stock | In stock |
| Product Type | — | Surveying Prism |
| Recommended Use | — | Total station measurement support |
| Accuracy | 12.7 mm | 38.1 mm |
| Package Type | Complete Set | — |
| Delivery Time | 4–7 business days | 4–7 business days |
Need help choosing the right equipment?
Our team can help compare models, confirm compatibility, and prepare an official quotation.
