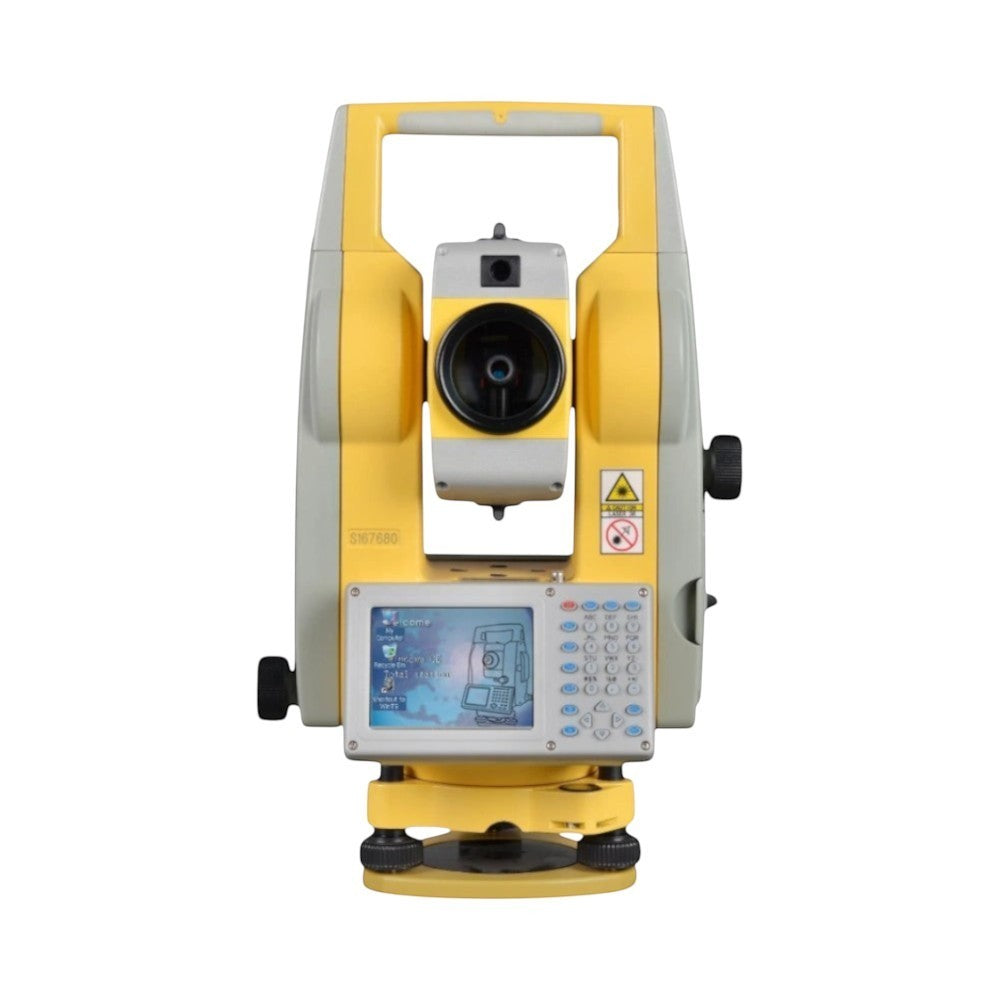

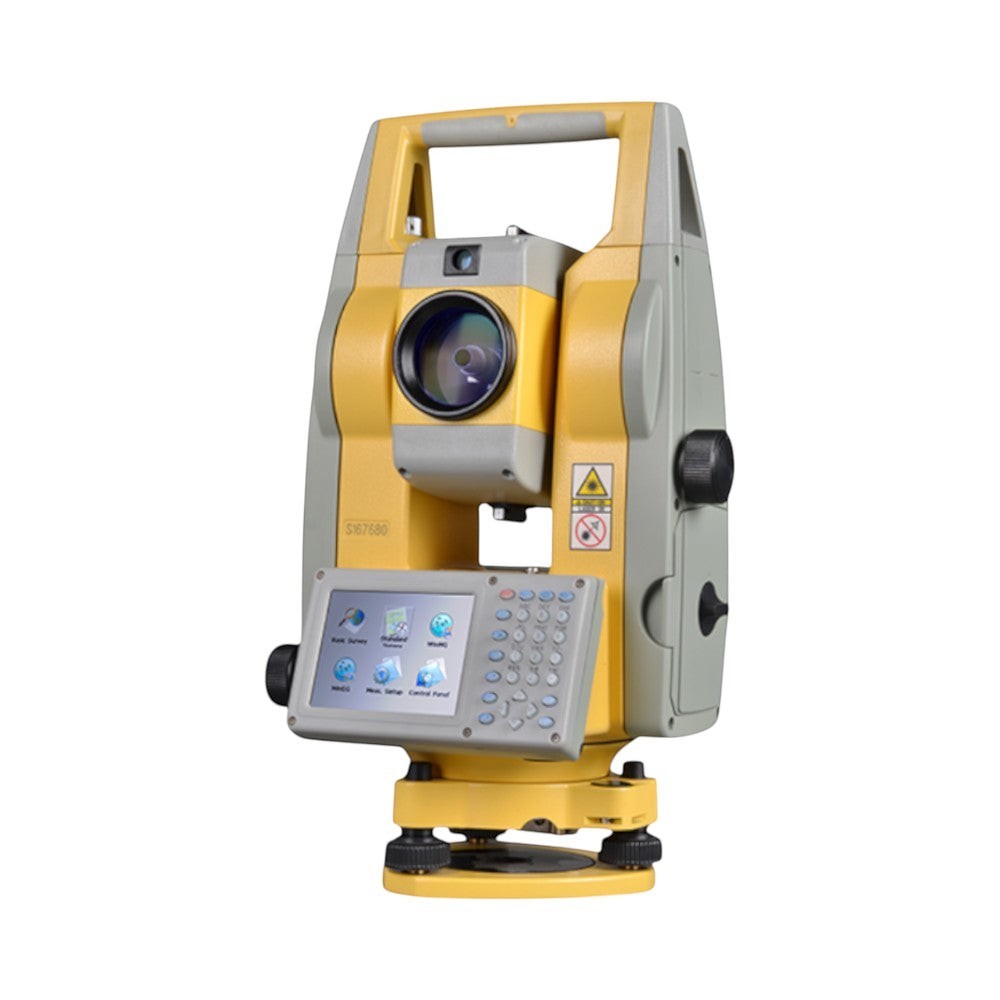

The South N7 Total Station is a state-of-the-art surveying instrument designed to deliver unmatched precision, versatility, and efficiency. Featuring dual-laser EDM technology with a 2000m reflectorless range and 2" angle measurement accuracy, the N7 provides reliable performance in even the most demanding environments. Powered by Windows CE 6.0, it supports advanced applications such as COGO, road design, resection, and stake-out, streamlining field-to-office workflows. Its 3.5-inch color touchscreen, robust IP55-rated durability, and seamless data connectivity make the N7 the ultimate tool for professional surveyors.
High Accuracy: 2" angle measurement accuracy for precise results in critical applications.
Extended EDM Range:
- Up to 2000m reflectorless range.
- Up to 5000m with a single prism.
Superior EDM Accuracy:
- Prism: ±(2+2ppm) mm
- Reflectorless: ±(3+2ppm) mm
Advanced Applications: Supports COGO, road design, resection, stake-out, slope measurement, and more.
Windows CE 6.0 Operating System: Compatible with third-party software like SurvCE and FieldGenius for extended functionality.
User-Friendly Display: 3.5-inch color LCD touchscreen with 640x480 resolution for intuitive navigation.
Seamless Connectivity:
- USB OTG for data transfer.
- Bluetooth V2.0 and Wi-Fi 802.11 for wireless communication.
- RS-232 for external device integration.
Extended Battery Life: Up to 10 hours of continuous operation with a 5000mAh lithium-ion battery.
Rugged Durability: IP55-rated for dust and water resistance, reliable in temperatures from -20°C to +50°C.
Portable Design: Weighs only 6.2kg with compact dimensions for ease of transport and setup.
Angle Measurement Accuracy: 2"
EDM Range:
- Reflectorless: Up to 2000m
- Prism: Up to 5000m
EDM Accuracy:
- Prism: ±(2+2ppm) mm
- Reflectorless: ±(3+2ppm) mm
Operating System: Windows CE 6.0 with support for SurvCE and FieldGenius
Display: 3.5-inch color LCD touchscreen (640x480 resolution)
Battery Life: Up to 10 hours with 5000mAh lithium-ion battery
Durability: IP55-rated for dust and water resistance, operates from -20°C to +50°C
Applications: COGO, road design, resection, stake-out, slope measurement, and more
Connectivity: USB OTG, Bluetooth V2.0, Wi-Fi 802.11, RS-232
Weight and Dimensions: 6.2kg; 196mm x 192mm x 360mm
1. What is the angle measurement accuracy of the South N7?
The N7 provides 2" accuracy, ensuring precise results in critical fieldwork.
2. What is the EDM range?
- Reflectorless: Up to 2000m.
- With Prism: Up to 5000m.
3. How accurate is the EDM measurement?
- Prism: ±(2+2ppm) mm.
- Reflectorless: ±(3+2ppm) mm.
4. What operating system does the N7 use?
The N7 runs on Windows CE 6.0 and supports third-party software such as SurvCE and FieldGenius.
5. What are the display features?
It includes a 3.5-inch color LCD touchscreen with a resolution of 640x480 for intuitive navigation.
6. How long does the battery last?
The 5000mAh lithium-ion battery provides up to 10 hours of continuous operation.
7. Is the N7 durable in harsh conditions?
Yes, the N7 is IP55-rated for dust and water resistance and operates reliably in temperatures from -20°C to +50°C.
8. What connectivity options are available?
The N7 features:
- USB OTG for data transfer.
- Bluetooth V2.0 for wireless communication.
- Wi-Fi 802.11 for seamless connectivity.
- RS-232 for external device integration.
9. What applications does the N7 support?
The N7 includes onboard applications such as:
- COGO (Coordinate Geometry)
- Road Design
- Resection
- Stake-out
- Slope Measurement
10. What are the weight and dimensions of the device?
The N7 weighs 6.2kg and has dimensions of 196mm x 192mm x 360mm, making it portable and easy to set up.
