Metricop Surveying Equipment
Zoom1 / 3

South

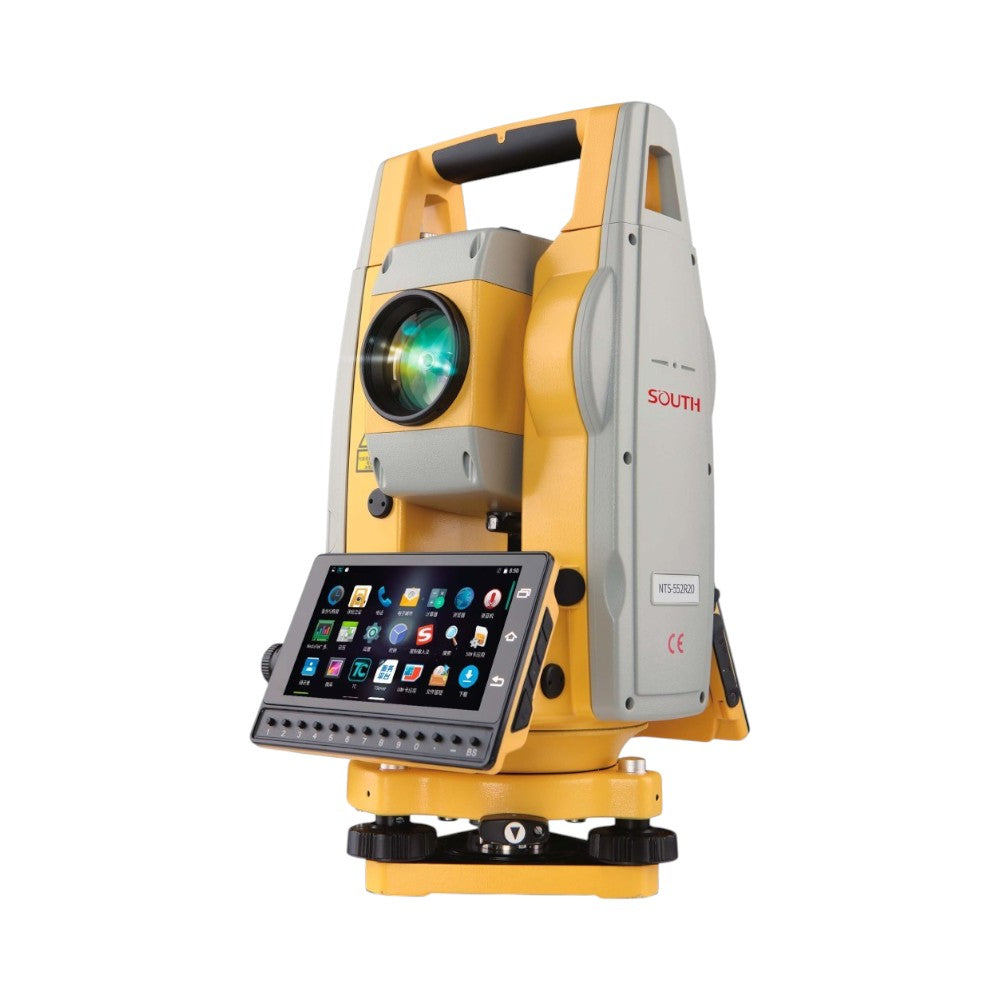

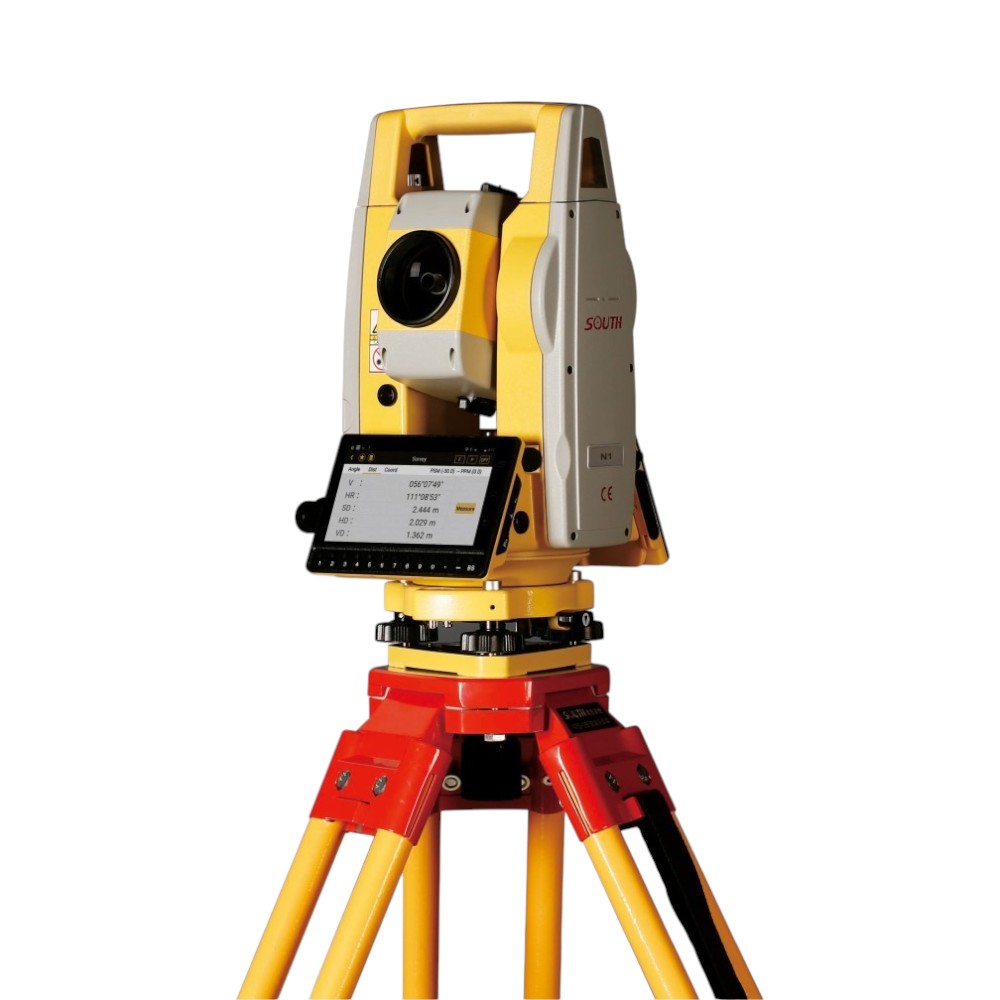

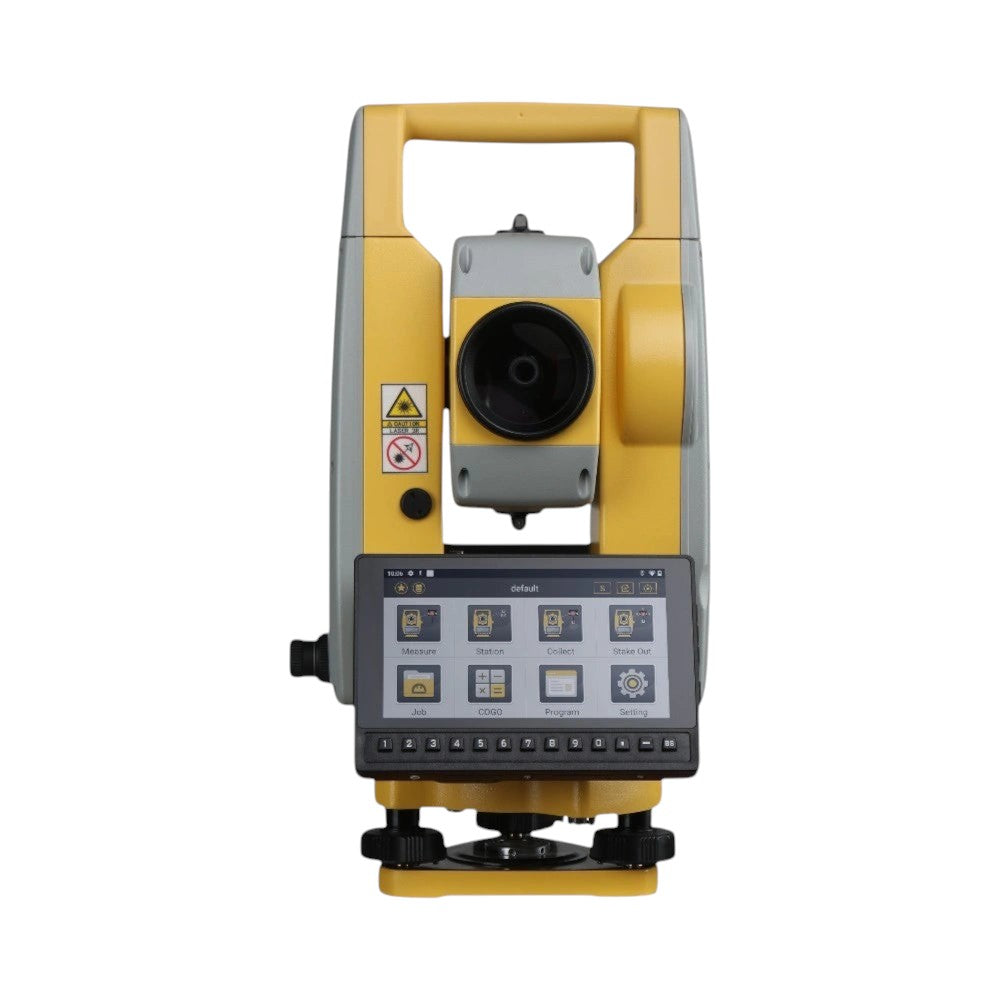

South N1 Total Station

The South N1 Android total station is capable of delivering 2" accuracy and also has a 5,000m EDM range. You can operate it with ease thanks to a 5.5-inch touchscreen operated by the latest Android 11.0 system. It offers unparalleled precision and efficiency for modern surveying tasks and is one of the best tools in its range.

Price on request

SKU: MET-TS12

In stock
Delivery: 4–7 business days

Price depends on configuration, availability, delivery destination, and shipping method. Send us a request and we will prepare a tailored quote with delivery time.

Secure checkout available with major credit cards, Apple Pay, Google Pay and Shop Pay.

Secure checkout
Official quotation available
Delivery: 4–7 business days
Worldwide shipping

Product Highlights

  • High Precision: 2" angle measurement accuracy ensures reliable results.
  • Extended EDM Range
  • 5,000m with a prism.
  • 2,000m reflectorless range for greater flexibility.
  • Advanced EDM Accuracy

Overview

The South N1 Android Total Station combines cutting-edge technology with user-friendly features to deliver unmatched precision for modern surveyors. Powered by Android 11.0 and the intuitive Survey Star software, the N1 ensures maximum efficiency with a dual-laser EDM that achieves 5,000m range with a prism and 2,000m reflectorless. Its 2" angle measurement accuracy, 5.5-inch touchscreen, and versatile data transfer options make it the perfect tool for diverse surveying applications, including CAD stakeout. Built with IP55 durability, it withstands harsh environments while delivering consistent, high-accuracy results.

Specifications

Magnification30×
Field of View1°30′
Minimum Focus Distance1.2 m
Accuracy2″
MethodAbsolute encoding
CompensatorLiquid dual-axis
Setting Accuracy1″
Compensator Range±4′
Reflectorless Range1000 m / 1500 m / 2000 m (optional)
With PrismUp to 5000 m
Accuracy (Reflectorless)±(3 mm + 2 ppm)
Accuracy (Prism)±(2 mm + 2 ppm)
Measuring Time0.3 s (fine), 0.1 s (tracking)
TypeRed laser, 4 brightness levels
Accuracy±1.5 mm @ 1.5 m
Laser ClassClass 2, <0.4 mW
Wavelength630–670 nm
Size5.5″ TFT LCD
Resolution720×1280
TouchscreenYes
Operating SystemAndroid 11.0
ProcessorMT6762
MemoryRAM 4 GB, ROM 64 GB
CommunicationUSB Type-C, Bluetooth 4.0, WiFi 802.11a/b/g/n, 4G LTE, Micro SIM
PortsTF card, USB OTG
AudioBuilt-in mic & speaker
Battery7.4V rechargeable Li-ion
Operating TimeUp to 8 hours
Operating Temperature–20°C to +50°C
ProtectionIP55
Weight5.7 kg
Dimensions350 mm × 170 mm × 217 mm

Features

High Precision

2" angle measurement accuracy ensures reliable results.

Extended EDM Range

5,000m with a prism.

2,000m reflectorless range for greater flexibility.

Advanced EDM Accuracy

±(2+2ppm) mm with prism.

±(3+2ppm) mm reflectorless.

Android 11.0 OSSurvey Star software

Powered by an intuitive system with for seamless operation.

User-Friendly DisplayTFT LCD touchscreen

5.5-inch with 720x1280 resolution for a clear and responsive interface.

Seamless Connectivity

USB Type-C, Bluetooth 4.0, Wi-Fi, and 4G LTE via Micro SIM for efficient data transfer.

Versatile File Support.txt, .csv, .xls, .dxf, and .dat

Compatible with formats for streamlined data management.

Robust and Durable

IP55-rated for dust and water resistance; operates reliably in temperatures from -20°C to +50°C.

Portable Design5.7kg

Compact build with dimensions of 350mm x 170mm x 217mm, weighing for easy handling.

Long Battery Life8 hours

7.4V lithium-ion battery provides of continuous operation for full-day performance.

In the Box

  • South N1 Android Total Station
  • 7.4V Rechargeable Li-ion Battery
  • Battery Charger + Adapter
  • USB Type-C Cable
  • User Manual
  • Carrying Case
  • Calibration Certificate

Product Downloads

Download the datasheet, brochure or user guide for this product (PDF).

Frequently Asked Questions

Reviews

Loading reviews…

Previously published reviews

⭐️⭐️⭐️⭐️⭐️ A. Mohsen – Verified Buyer – April 27, 2024
"The Android interface is a game-changer. Super easy to navigate, and I love not having to deal with outdated software. Everything runs smoothly!"

Compare similar equipment

A structured side-by-side of comparable options in this category to help you choose the right setup for your workflow.

SpecificationThis product
South
South N1 Total StationPrice on request
View Product
South
South NTS-332R10 Total Station 2"Price on request
View Product
South
South A1X Android Total StationPrice on request
View Product
South
South N6+ Total StationPrice on request
View Product
BrandSouthSouthSouthSouth
PricePrice on requestPrice on requestPrice on requestPrice on request
Availability In stock In stock In stock In stock
TypeTotal StationTotal StationTotal StationTotal Station
Angular Accuracy2″2″5.0″2″
Reflectorless / EDM Range2000 m1000 m1000 m1500 m
Robotic / Manual———Manual
Operating SystemAndroid 11.0—Android—
Display5.5" touchscreen—Yes—
IP RatingIP55———
Connectivity4G/LTE, USB-C———
ConditionNewNewNewNew
Delivery Time4–7 business days4–7 business days4–7 business days4–7 business days
