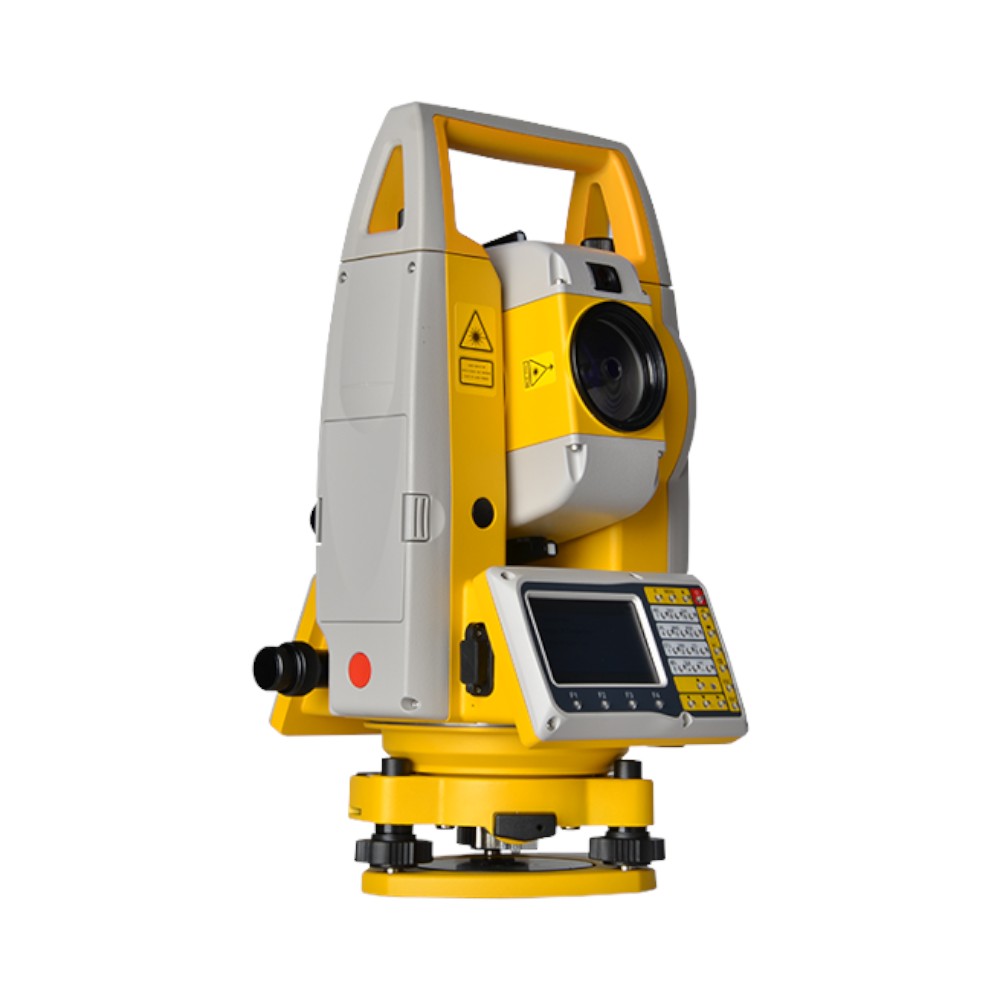

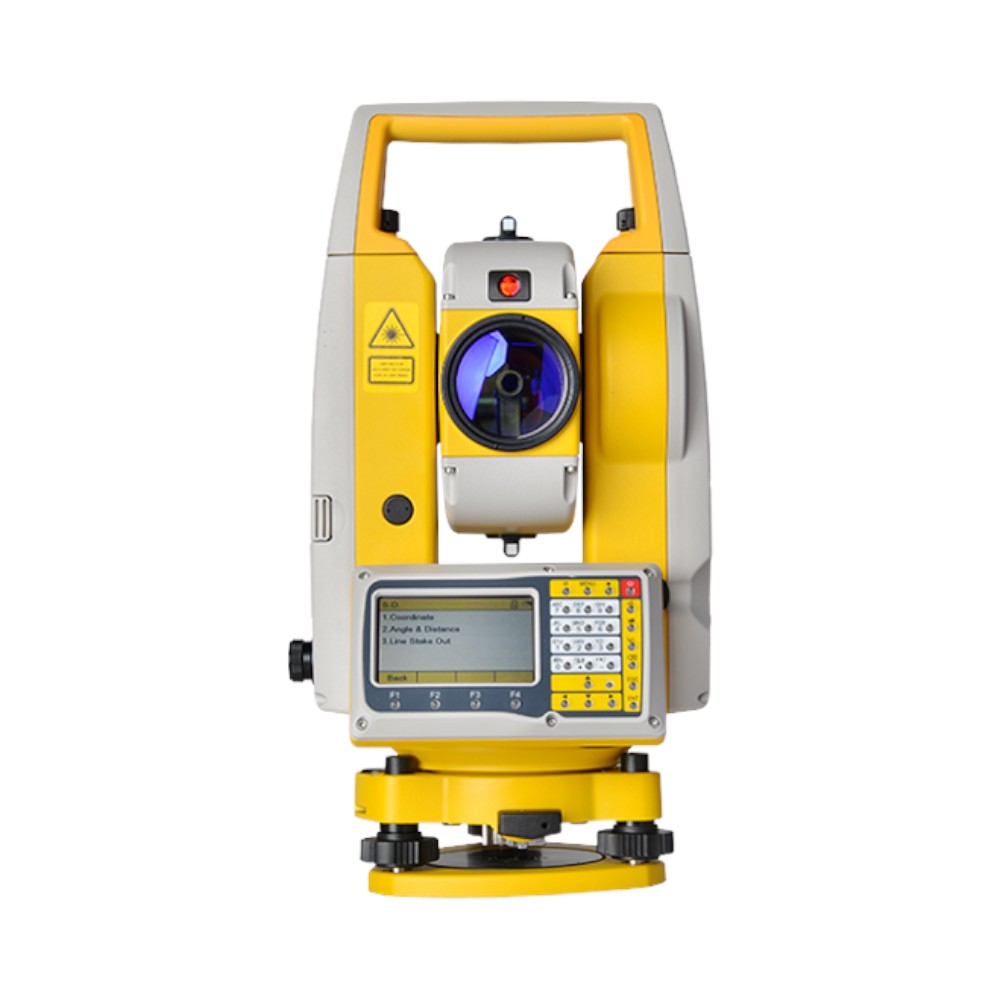

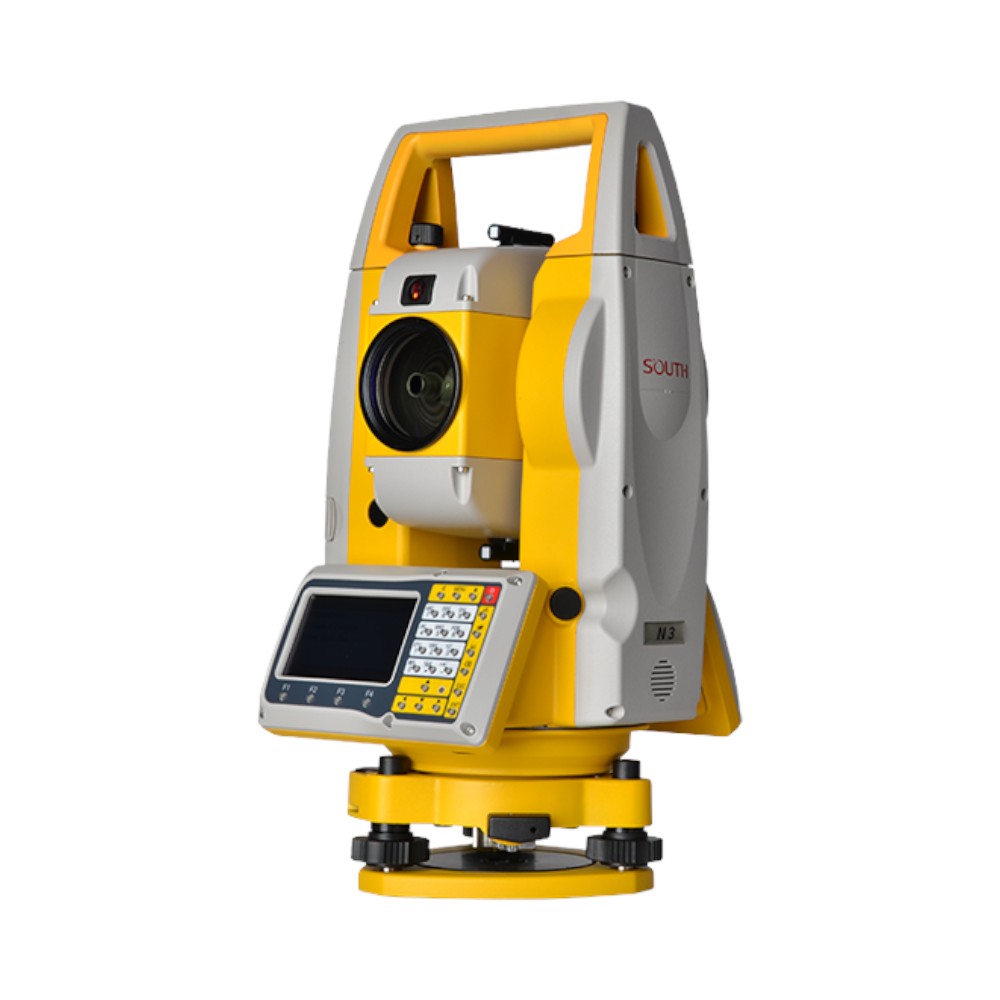

South N3 Total Station

Specs

Telescope

• Magnification: 30×
• Field of View: 1°30′
• Minimum Focus Distance: 1.5 m

Angle Measurement

• Accuracy: 2″
• Method: Absolute encoder
• Compensator: Dual-axis

Distance Measurement

• Reflectorless Range: Up to 1000 m
• Prism Range: Up to 5000 m
• Accuracy: ±(2 mm + 2 ppm)
• Measuring Time: Fine: <1.3s / Tracking: <0.2s

Laser Plummet

• Type: Red laser
• Accuracy: ±1.5 mm @ 1.5 m

Display & Interface

• Dual LCD with backlight
• Alphanumeric keypad
• Connectivity: USB, RS-232
• Storage: Internal 16,000 pts + SD card

Power & Environmental

• Battery: Ni-MH Rechargeable
• Runtime: Up to 8 hours
• Protection: IP54 (dust and splash resistant)
• Operating Temp: –20°C to +50°C
• Weight: 5.3 kg with battery and tribrach

Features

• 2″ Angular Accuracy – Ideal for construction layout and control points
• 1000m Reflectorless EDM – Measure without a prism in hard-to-reach areas
• 5000m Prism Range – Long-range capability with single prism
• Dual-Axis Compensation – Maintains accuracy on sloped terrain
• Laser Plummet – Precise centering over ground points
• 16,000 Points Internal Storage – Expandable with SD card
• USB & RS-232 Ports – Fast data transfer
• Integrated Field Software – Stake-out, resection, coordinate input, and more
• IP54 Protection – Durable and splash-resistant for outdoor work
• 8-Hour Battery Life – Survey a full day on a single charge

South_N3_Datasheet

⭐️⭐️⭐️⭐️⭐️ O. Preston – Verified Buyer – July 27, 2024

"For the price, the N3 is an excellent total station. Easy to use, accurate, and reliable in all conditions. Highly recommend!"

In the Box

• South N3 Total Station (2″ accuracy)
• Rechargeable Ni-MH Battery
• Smart Battery Charger
• Tribrach with Optical Plummet
• SD Card
• USB Data Cable
• Reflective Sheet
• Tool Kit
• User Manual
• Rugged Transport Case
• Calibration Certificate

 FAQ

1. What is the angle measurement accuracy of the South N3?

The N3 provides a 2" angle measurement accuracy, ensuring precise results in critical surveying tasks.

2. What is the EDM range for the South N3?

• Up to 1,000m in reflectorless mode.
• Up to 5,000m with a single prism.

3. How accurate is the EDM measurement?

• Reflectorless: 3+2ppm accuracy.
• With Prism: 2+2ppm accuracy.

4. What is the auto-height function, and how does it work?

The auto-height function integrates a laser plummet with automatic height calculation, minimizing manual errors and speeding up instrument setup.

5. What display does the South N3 feature?

It has a 3.0-inch high-resolution color touchscreen with dual-sided visibility, making it easy to operate from either side.

6. What onboard software functions are included?

The N3 includes software for:

• Resection
• COGO (Coordinate Geometry)
• Stakeout
• Offset
• Height Transfer
• Road Design

7. How durable is the South N3 in the field?

The N3 is IP54-rated, providing dust and water resistance, and operates reliably in temperatures ranging from -20°C to +50°C.

8. What are the data transfer options?

The N3 supports Bluetooth connectivity and USB flash disk data transfer for efficient file sharing and updates.

9. What is the battery life of the South N3?

The rechargeable lithium-ion battery provides up to 8 hours of continuous operation.

10. How portable is the N3?

The device weighs 6kg and has compact dimensions of 206mm x 195mm x 353mm, making it portable and easy to set up.
