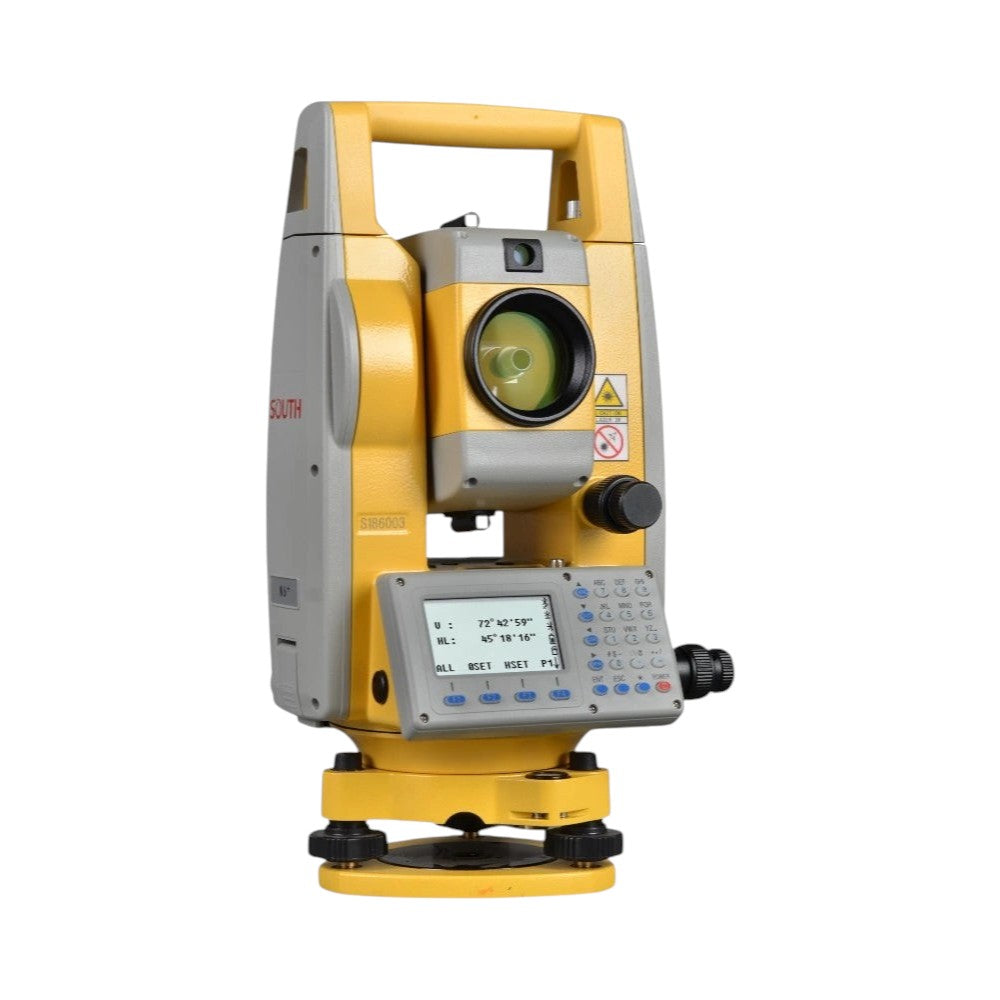

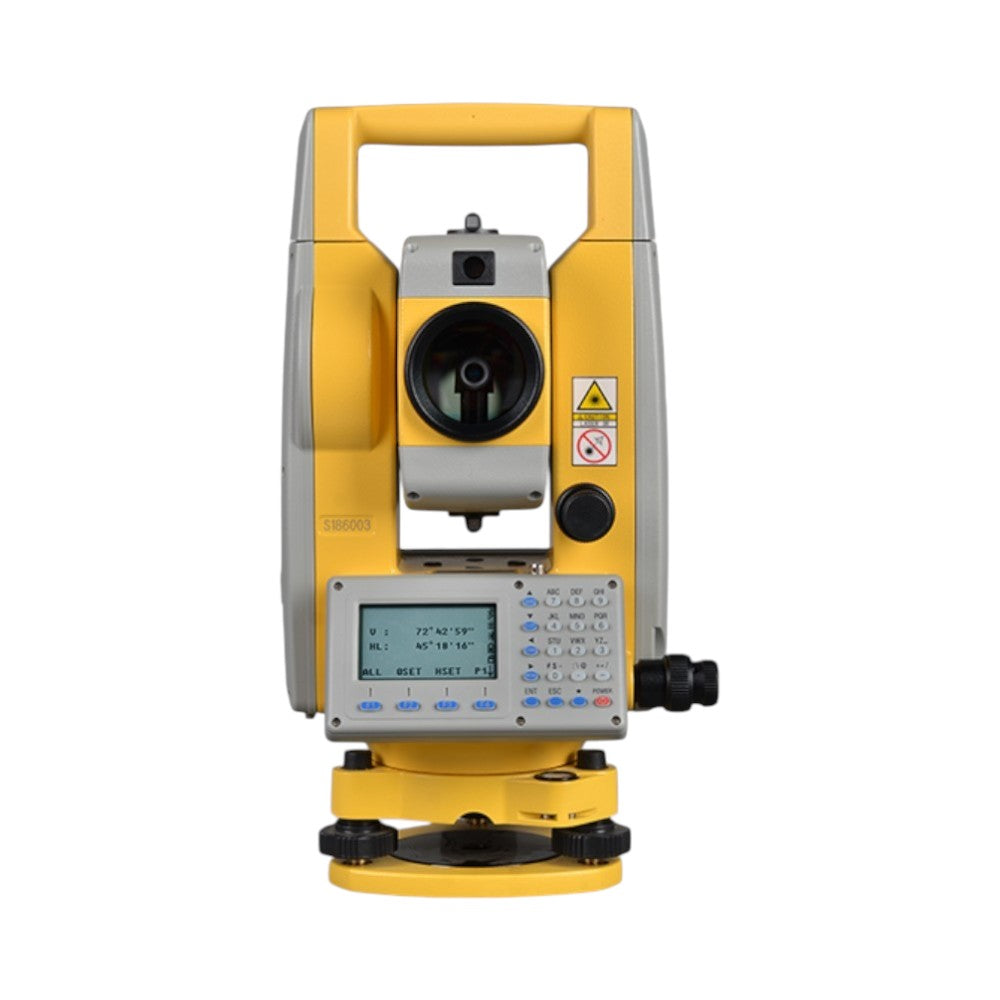

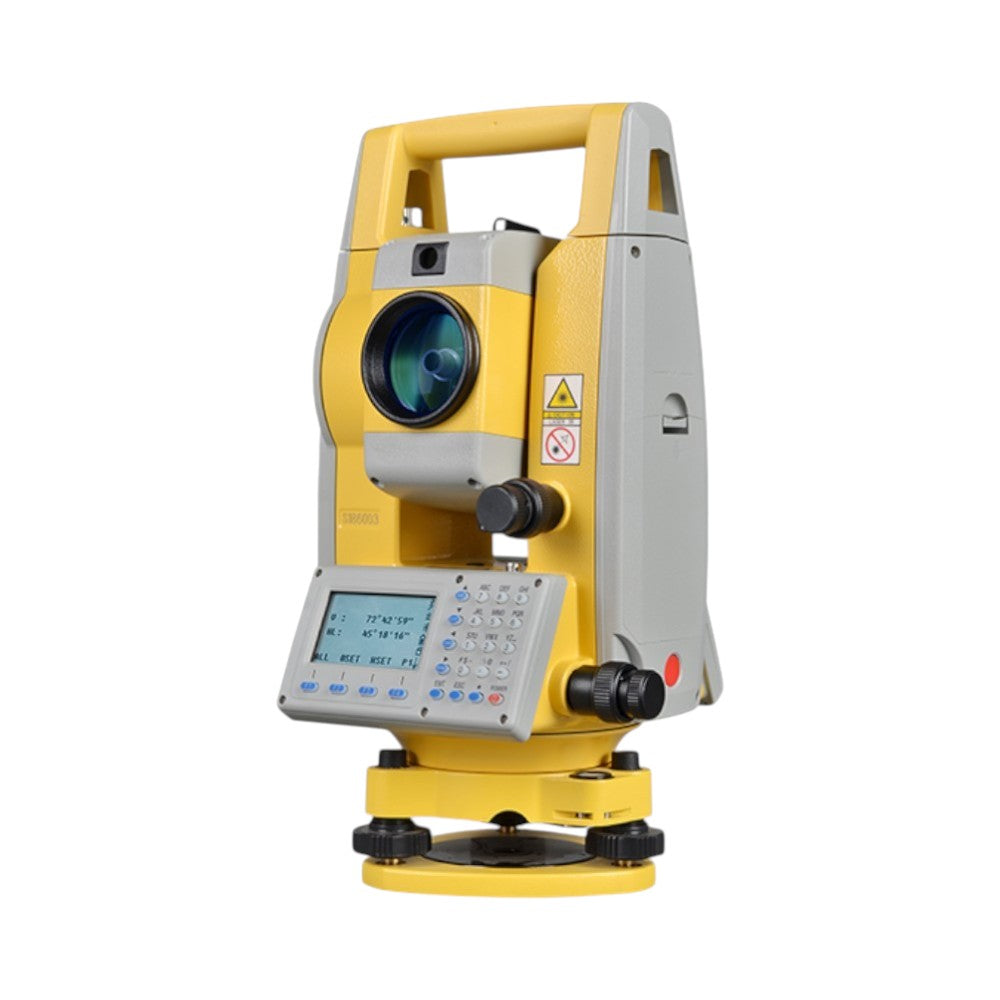

South N6 Series Total Station

Specs

Telescope:

• Magnification: 30x
• Field of View: 1°30′
• Minimum Focus: 1.5m

Angle Measurement:

• Accuracy: 2″
• Method: Absolute encoding
• Compensator: Dual-axis

EDM:

• Reflectorless Range: Up to 1000m
• With Prism: Up to 5000m
• Accuracy: ±(2mm + 2ppm)
• Measuring Time: Fine mode <1s, Tracking <0.3s

Plummet:

• Type: Laser plummet
• Accuracy: ±1.5mm @ 1.5m

Display & Interface:

• Dual side LCD with backlight
• Keyboard: Alphanumeric

Data Storage & Transfer:

• Internal Memory: 96,000 points
• SD Card Support: Yes
• Connectivity: USB, Bluetooth, RS-232

Environment & Power:

• IP Rating: IP66
• Operating Temp: –20°C to +50°C
• Battery: Rechargeable Li-ion
• Battery Life: Approx. 10 hours
• Weight: 5.2kg (with battery & tribrach)

 Features

• 2” Angular Accuracy – For precise layout and topographic control
• Reflectorless EDM – Up to 1000m range without prism
• Dual-Axis Compensator – For enhanced stability on uneven terrain
• Fast Measurement – EDM response <1s in fine mode, <0.3s in tracking
• Large Internal Storage – Up to 96,000 points + SD card expansion
• Bluetooth Connectivity – Fast wireless data transfer
• Laser Plummet – Easy and accurate instrument centering
• Onboard Software – Built-in functions: coordinate measurement, resection, stake-out
• IP66 Rugged Protection – Dustproof and waterproof casing
• 10-Hour Battery Life – Field-ready for full-day surveying

South_N6_Datasheet

In the Box

• South N6 Total Station
• Rechargeable Lithium-Ion Battery
• Battery Charger + AC Adapter
• Tribrach with Optical Plummet
• USB Data Cable
• Reflective Sheet
• SD Memory Card
• Tool Kit
• User Manual
• Rugged Transport Case

Calibration Certificate

FAQ

1. What is the angular accuracy of the South N6 Total Station?

The N6 offers 2” or 5” angle measurement accuracy, depending on your requirements.

2. How far can the N6 measure distances?

• Up to 1,500m in reflectorless mode.
• Up to 5,000m using a single prism.

3. How accurate is the distance measurement?

• Prism: ±(2+2ppm) mm.
• Reflectorless: ±(3+2ppm) mm.

4. How long does the battery last?

The 5000mAh rechargeable battery provides up to 16 hours of continuous operation.

5. Does the N6 include guide lights for alignment?

Yes, it features red/green guide lights with an effective range of 200m, making stakeout tasks more efficient.

6. What file formats does the N6 support for data storage?

The N6 supports .txt, .csv, and .dxf formats, allowing easy data management and sharing.

7. How much data can the N6 store?

The N6 can store up to 96,000 data points, ensuring ample capacity for field projects.

8. What connectivity options are available?

The N6 offers USB and Bluetooth connectivity for seamless data transfer and external device access.

9. Is the N6 suitable for rugged environments?

Yes, it is IP55-rated, providing dust and water resistance, and it operates reliably in tough conditions.

10. What are the weight and dimensions of the N6?

The device weighs 5.5kg and has dimensions of 190mm x 195mm x 335mm, ensuring portability and easy setup.
