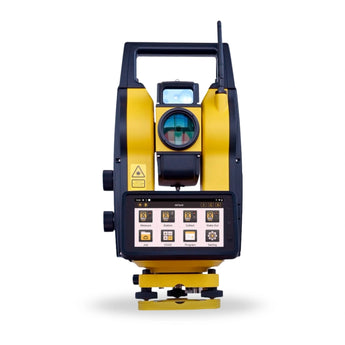

South NS10 Robotic Total Station Front Side View

South NS10 Robotic Total Station Right Side View

South

South NS10 Robotic Total Station

Name: South NS10 Robotic Total Station
Brand: South
SKU: MET-TS10
Price: 17500.00 USD
Availability: InStock

$17,500.00

4.75

The South NS10 Robotic Total Station combines 0.5" or 1" accuracy, along with T-Drive motorization, and exceptional LocknTrack technology resulting in unmatched precision, speed, and tracking capabilities that can be used in surveying and monitoring applications. A type of tool that will benefit surveying professionals and expand thier work.

Product variants

Quantity

Payment

Worldwide Shipping
Buyer Protection and Product Warranty
Specialists in Import, Export, Taxes, and Duties
Expert Assistance and Premium Customer Support

Product Information

The South NS10 Robotic Total Station redefines high-performance surveying with precision, speed, and innovation. Featuring T-Drive motorization, the NS10 delivers a 180°/s rotation speed for seamless tracking and rapid measurements. Its advanced EDM offers a 1,000m reflectorless range and 6,000m with a triple prism, ensuring reliable performance in complex field conditions.

With LocknTrack technology, it automatically recognizes and tracks prisms at speeds up to 60km/h, making it ideal for monitoring and dynamic tasks. Powered by Android 9.0 OS, a 6-inch color touchscreen, and IP65-rated durability, the NS10 is a robust and user-friendly tool for surveying, construction, and monitoring projects.

Specs

Telescope:

Magnification: 30×

Field of View: 1°30′

Minimum Focus Distance: 1.5 m

Angle Measurement:

Accuracy: 1″

Method: Absolute encoding

Drive: T-Drive high-speed servo motor

Compensator: Dual-axis compensation

Distance Measurement (EDM):

Reflectorless Range: Up to 1000 m

With Prism: Up to 5000 m

Accuracy (Reflectorless): ±(2 mm + 2 ppm)

Accuracy (With Prism): ±(1 mm + 1 ppm)

Measuring Time: 0.8 s (fine), 0.3 s (tracking)

Tracking & Locking:

Autolock Range (Prism): 800 m

Servo Motor Speed: 90°/s

Fine Positioning: ≤1 mm

Max Acceleration: 180°/s²

Controller & Display:

Display: 5.5″ LCD Touchscreen

Resolution: 720×1280

Control: Android OS

Remote operation via radio/field controller

Data & Interface:

Memory: Internal storage + TF card

Connectivity: USB, RS-232, Bluetooth, Wi-Fi

Control Platform: Android with custom robotic control app

Battery & Power:

Battery Type: Rechargeable Li-ion

Working Time: Up to 6 hours (robotic operation)

Environmental:

Operating Temperature: –20°C to +50°C

Protection: IP55

Weight: Approx. 6.0 kg (including tribrach)

Features

Exceptional Accuracy:

0.5" or 1" angle measurement accuracy (model-dependent).
EDM Accuracy: ±(1+1ppm) mm with prism, ±(3+2ppm) mm reflectorless.

Extended EDM Range:

1,000m reflectorless for flexibility in the field.
6,000m with a triple prism for long-range measurements.

Rapid Rotation: T-Drive motorization achieves 180°/s rotation speed with a face change time of 2.6s.

Automatic Tracking: LocknTrack technology enables automatic prism recognition at up to 1,000m and tracking speeds of 60km/h.

User-Friendly Display: 6-inch color touchscreen powered by Android 9.0 OS for intuitive operation and advanced functionality.

Long Battery Life: 6400mAh Li-ion battery delivers 6 hours of continuous operation for uninterrupted workflows.

Durable Construction: IP65-rated for dust and water resistance, ensuring reliability in harsh environments.

Seamless Connectivity:

32GB internal storage for extensive data management.
Connectivity options include 4G, Wi-Fi, Bluetooth, and USB for flexible data transfer.

Portable Design: Compact build with dimensions of 430mm x 255mm x 235mm and weighing 9.5kg for ease of transport and setup.

⭐️⭐️⭐️⭐️⭐️ L. Paul – Verified Buyer – September 29, 2024

"I switched from a manual total station, and I’ll never go back. The robotic function is super smooth, and I get more work done in half the time!"

In the Box

South NS10 Robotic Total Station
Rechargeable Li-ion Battery
Dual Battery Charger
5.5″ Touchscreen Controller (optional)
Reflector Sheet / Prism Accessories
Tribrach with Optical Plummet
USB & RS-232 Cable
Transport Case
Quick Start Guide
Factory Calibration Certificate

FAQ

1. What is the angle measurement accuracy of the South NS10?

The NS10 offers 0.5" or 1" accuracy, depending on the model.

2. What is the EDM range and accuracy?

Reflectorless: Up to 1,000m with an accuracy of ±(3+2ppm) mm.
Triple Prism: Up to 6,000m with an accuracy of ±(1+1ppm) mm.

3. How fast can the NS10 rotate?

The T-Drive motorization achieves a rotation speed of 180°/s with a face change time of 2.6 seconds.

4. How does LocknTrack technology work?

LocknTrack enables automatic prism recognition up to 1,000m and tracks moving prisms at speeds of up to 60km/h.

5. What operating system powers the NS10?

The NS10 runs on Android 9.0, providing a modern, user-friendly interface.

6. How long does the battery last?

The 6400mAh Li-ion battery provides up to 6 hours of continuous operation.

7. Is the NS10 durable for rugged environments?

Yes, it has an IP65 rating for dust and water resistance, ensuring reliable performance in harsh conditions.

8. What are the data connectivity options?

The NS10 offers:

4G for fast wireless communication.
Wi-Fi for internet connectivity.
Bluetooth for external device pairing.
USB for quick data transfer.

9. How much data can the NS10 store?

The NS10 features 32GB of internal memory for extensive data storage.

10. What are the dimensions and weight of the NS10?

The NS10 weighs 9.5kg and has compact dimensions of 430mm x 255mm x 235mm for easy portability.
